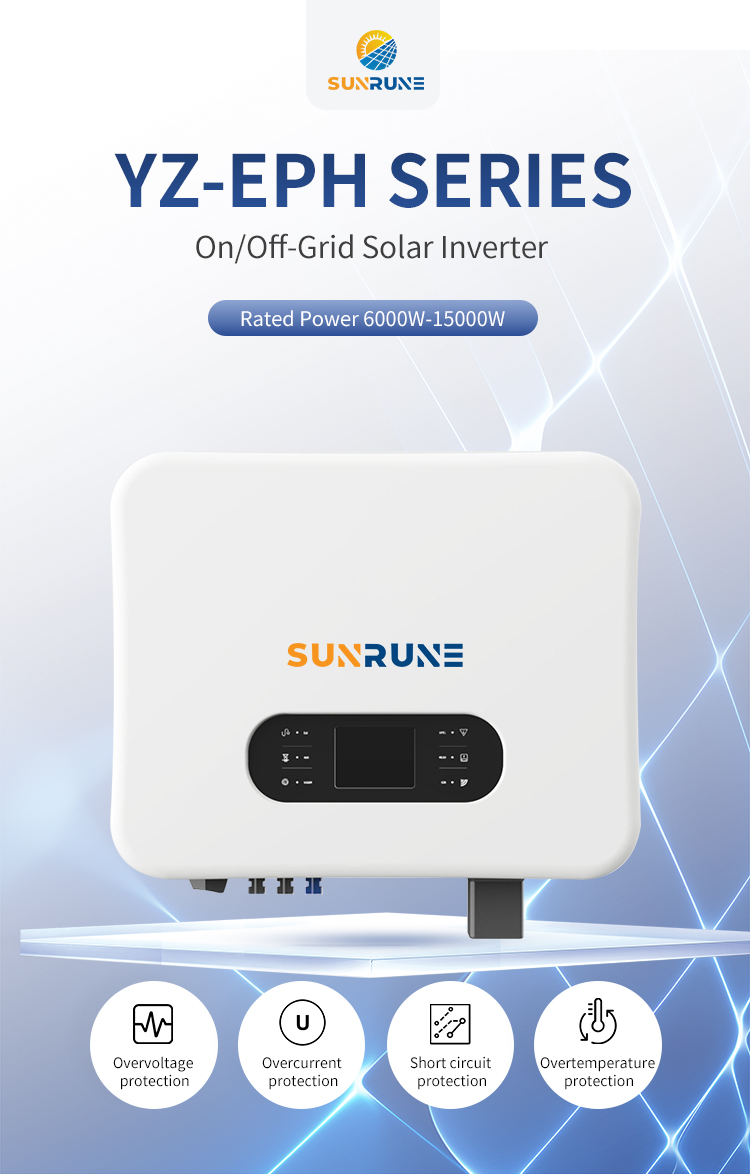

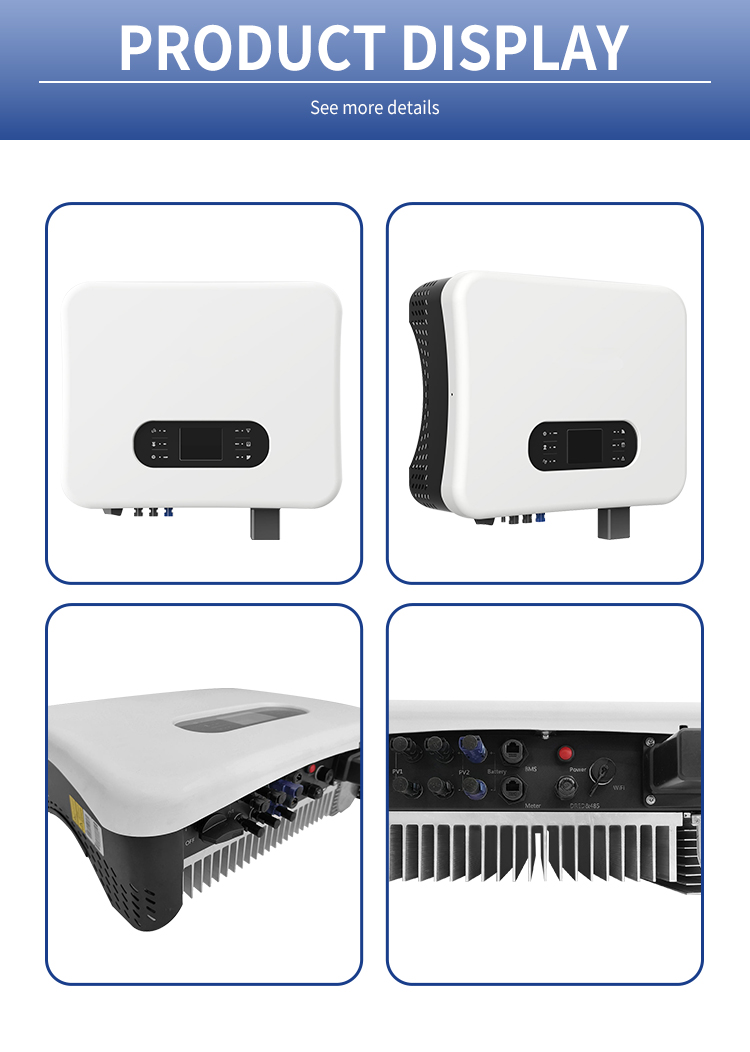

Hybrid Inverter Three Phase 6KW 9KW hybrid solar power inverters

Short Description:

Safer: Meets international quality standards
Tested by TUV, BVDekra, etc.
R&D accumulation and support
High Reliability; IP65 ingress protection 10+ years
Large LCD display; Three phase unbalanced output
Power export limit; Wifi/ GPRS/ Lan communication optional
Simpler: Quick and easy one-man installation Fault codes displayed on LCD Smart meter optional

Send email to us

Subscribe us

Product Detail

Product Tags

Model	YZ-EPH-4K	YZ-EPH-5K	YZ-EPH-6K	YZ-EPH-8K	YZ-EPH-10K
Input(DC)
Max DC power	6000W	7500W	9000W	12000W	15000W
Max DC voltage			1000VDC
MPPT voltage range			200-850VDC
Max input current/per string	13Ax2
Number of MPP trackers	2
Number of input string	2
Battery Input
Battery Type	Li-Lon
Battery voltage range	130~700V
Maximum charge/discharge current	25/25A
Charge strategy for Li-tou Battery	Self-adaptation to BMS
Output (AC)
AC nominal power	4000VA	5000VA	6000VA	8000VA	10000VA
Max AC apparent power	5000VA	5500VA	7000VA	8800VA	11000VA
Max output current	8A	10A	12A	15A	17A
Nominal AC output	50/60Hz；400/350
AC output range	45/55Hz;280~490Vac(Adj)
Power factor	0.8leading...0.8laging
Harmonics factor	<3%
Grid type	3W/N/PE
Three-phase unbalance output	0~100%	0~100%	0~100%	0~100%	0~100%
AC Output(Back-up)
Max AC apparent power	4000VA	5000VA	6000VA 8000VA		10000VA
Norminal Output Voltage	400V/380V
Norminal Output Frequency	50/60HZ
Output THDV (@Liuear Load)	<3%
Efficiency
Maximum conversion efficiency	98.00%	98.00%	98.20%	98.20%	98.20%
European efficiency	97.30%	97.30%	97.50%	97.50%	97.50%
Max battery to AC Efficiency	97.20%	97.20%	97.40%	97.40%	97.40%
MPPT efficiency	99.90%	99.90%	99.90%	99.90%	99.90%
Safety and Protection
DC reverse-polarity protection	yes
DC breaker	yes
DC/AC SPD	yes
Leakage current protection	yes
Insulation Impedance detection	yes
Residual Current protection	yes
Output short circuit protection	yes
Battery reerse connection protection	yes
General Parameters
Dimension (W/H/D)(mm)	548444184mm
Weight (kg)	27 kg
Operating temperature range ºC	-25C..+60℃
Degree of protection	IP65
Cooling concept	Natural convection
Topology	Transformerless
Display	LCD
Humidity	0-95%,no condensation
Communication	Standard WiFi;GPRS/LAN(optional)
Warranty	Standard 5 years; 7/10 years optional
BMS communication	CAN/RS485
Meter communication	R485
Certificates and Approvals
CQC, VDE-AR-N4105,IEC61727，IEC62116，VDE0124-AR-N0124，EN50549，IEC62109，IEC62477

Feature

Our inverter has been carefully designed and manufactured to meet international quality standards, ensuring that it meets all the necessary safety requirements for reliable use.
This inverter has undergone rigorous testing and certification by reputable organisations such as TUV and BVDekra, guaranteeing its performance, durability and compliance with industry standards.
High reliability; IP65 protection for 10+ years: Our product boasts exceptional reliability, with a robust IP65 ingress protection rating that allows it to withstand various environmental conditions for over 10 years, ensuring uninterrupted and reliable power generation.
Our product’s integrated large LCD display provides users with clear and comprehensive information on system performance, making it easier to monitor and manage. In addition, our product offers a three-phase unbalanced output, ideal for applications that require efficient and balanced power distribution.
The SUNRUNE Inverter offers the convenience of setting the power export limit, allowing users to optimise their energy consumption.
It offers various communication options including Wifi, GPRS or LAN, giving users the flexibility to connect and monitor their system remotely according to their preferred method.
For added convenience, the SUNRUNE Inverter has the option to display fault codes on the LCD screen, allowing users to quickly identify and resolve any problems. In addition, our product is compatible with smart meters, making it easier to integrate into existing energy management systems.
