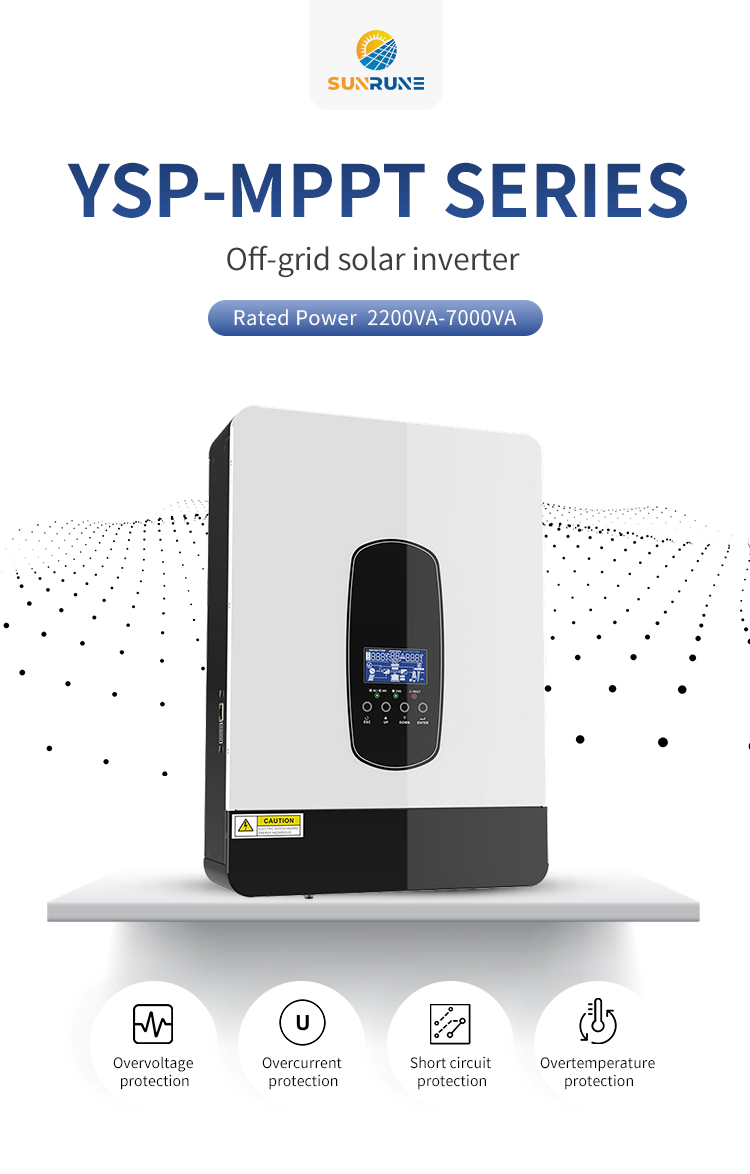

3000w Off-Grid Pure Sine Wave Inverter Built In MPPT solar controller

Short Description:

Pure sine wave solar inverter

High PV input voltage range (55~450VDC)

3. Supports WIFI and GPRS for IOS and Android.

4. Programmable PV, battery, or grid power prioritization

5. Built-in anti-glare kit for harsh environments (optional)

6. Built-in MPPT solar charger up to 110A (3.6KW and 6.2KW)

7. Overload, high temperature, inverter output short-circuit protection, and other functions.

Send email to us

Subscribe us

Product Detail

Product Tags

Parameter

MODEL	YSP-2200	YSP-3200	YSP-4200	YSP-7000
Rated Power	2200VA/1800W	3200VA/3000W	4200VA/3800W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	4400VA	6400VA	8000VA	14000VA
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC
Maximum charge current	60A		80A
SOLAR CHARGER
MAX.PV Array Power	2000W	3000W	5000W	6000W
MPPT Range@ Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A		110A
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	405X286X98MM		423X290X100MM	423X310X120MM
Net Weight (kgs)	4.5kg	5.0kg	7.0kg	8.0kg
Communication Interface	RS232/RS485(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10C to 55℃
Storage Temperature	-15℃ to 60℃

Features

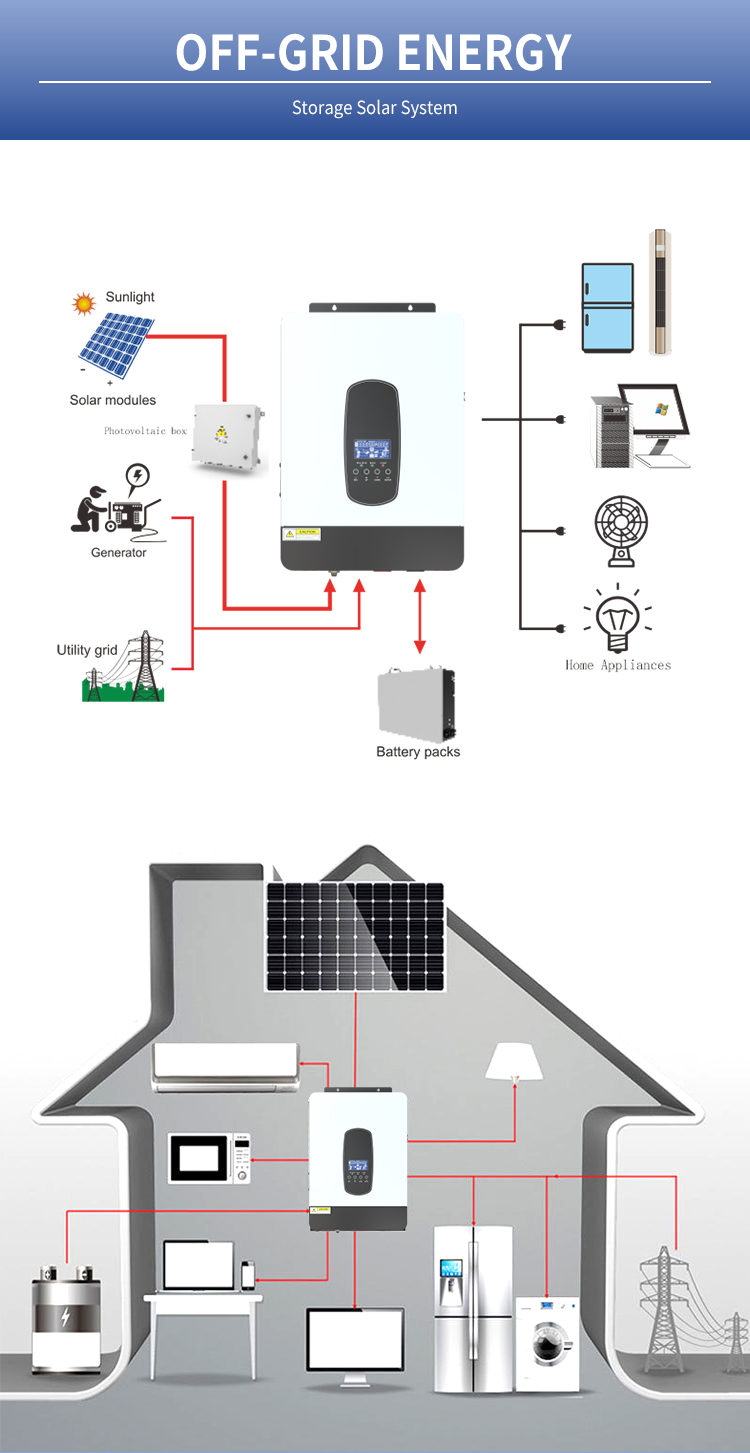

1. SP Series Pure Sine Wave Solar Inverter is a highly efficient device that converts DC power generated by solar panels into AC power, ensuring a smooth and reliable power supply for a wide range of appliances and equipment.
2. The high PV input voltage range of 55~450VDC makes the solar inverters compatible with a wide range of photovoltaic (PV) modules, enabling efficient power conversion even under challenging environmental conditions.
3. The solar inverter supports WIFI and GPRS for easy monitoring and control via IOS and Android devices. Users can easily access real-time data, adjust settings, and even receive notifications and alerts remotely for enhanced system management.
4. Programmable PV, battery, or grid power prioritization features provide flexibility in utilizing the power source
5. In harsh environments where sunlight-generated glare can affect solar inverter performance, the built-in anti-glare kit is an optional add-on. This additional feature helps minimize the effects of glare and ensures that the inverter will always operate reliably in harsh external environments.
6. The built-in MPPT solar charger has a capacity of up to 110A to maximize the use of power from the solar panels. This advanced technology effectively tracks and adjusts the operation of solar panels to ensure optimal energy conversion, thereby maximizing overall power generation and system performance.
7. Equipped with various protection functions. These include overload protection to prevent excessive power consumption, high-temperature protection to prevent overheating, and short circuit protection of the inverter output to prevent damage caused by electrical faults. These built-in protection features make the entire solar system safer and more reliable.
