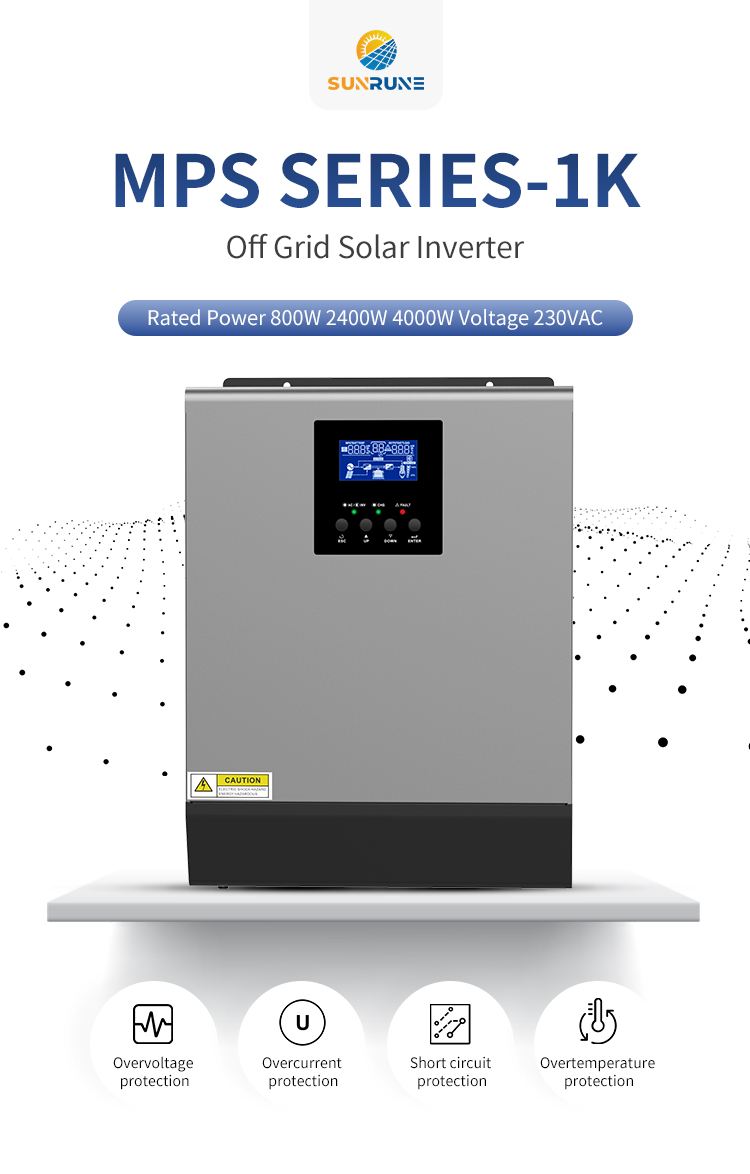

1kW Off Grid Pure Sine Wave Solar Inverter For Solar System

Short Description:

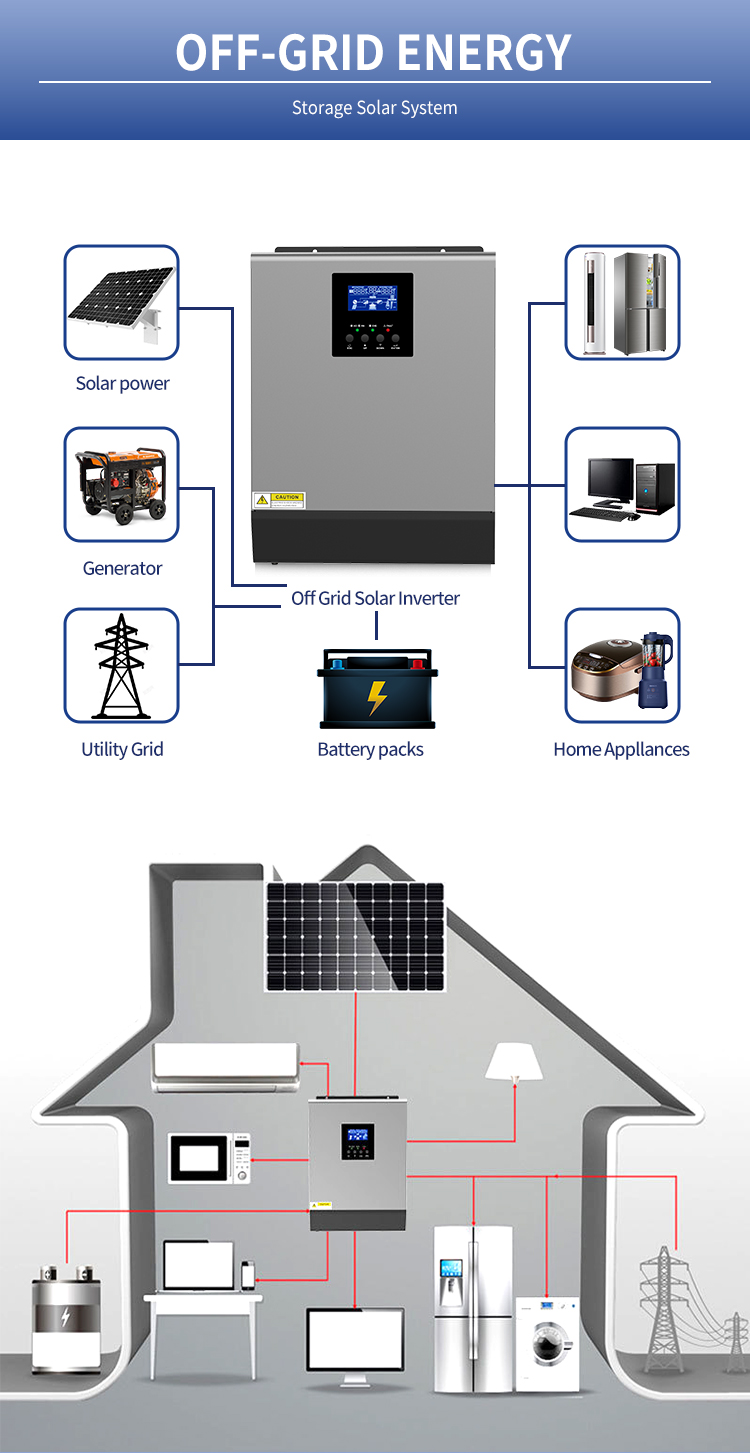

1. The inverter can convert direct current into alternating current. It is composed of inverter bridge, control logic and filter circuit.

2. MPS-1K inverters have a high photovoltaic input voltage range of 90~500VDC, which making them compatible with various solar panels.

3. Charging current can be selected according to the size of the application.

4. MPS-1K solar inverter Built-in lithium battery auto-activation ensures your battery is always at peak performance level, giving you the best output.

5. With the performance of overload and short circuit protection.

6. The shell of the product is made of aluminum, so the heat dissipation performance is good, the surface is treated by hard oxidation, so the friction resistance is good, and can resist a certain external extrusion or impact.

7. Product built-in MPPT solar charging controller, so that’s will be more stable when you use it.

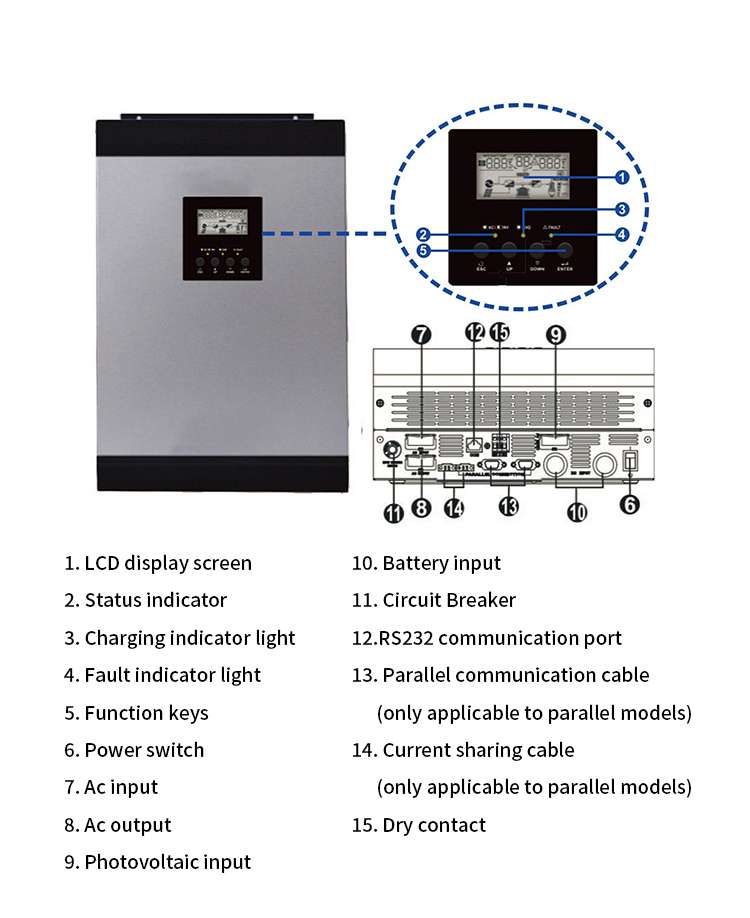

8. The AC/Solar input priority can be set on the LCD.

Send email to us

Subscribe us

Product Detail

Product Tags

Product Description

1. Our MPS inverter Built-in 160A (suitable for 7.2KW/8.2KW)/180A (suitable for 10.2KW) MPPT solar charging can maximize the conversion of solar energy into electricity for your home or business, reducing your dependence on traditional energy sources.
2. Our MPS inverters also have a high photovoltaic input voltage range of 90~500VDC, which making them compatible with various solar panels.
3. Our inverters with WIFI and GPRS for IOS and Android devices, you can now monitor your solar system anytime anywhere.
4. Our inverter Built-in anti-dusk kit for harsh environment and with Smart battery charge design to optimize battery life
5. Our inverter Built-in lithium battery auto-activation ensures your battery is always at peak performance level, giving you the best output.
6. With a touch button interface that is both user-friendly and intuitive.

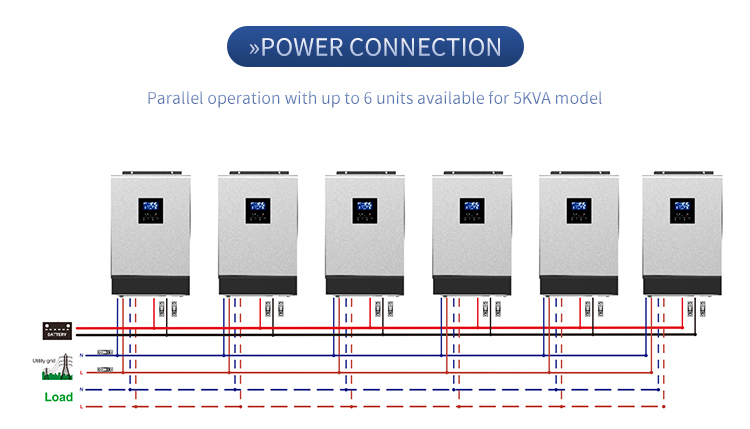

7. Parallel operation with up to 6 units (30KVA) only available for 5KVA.

Product Paraments

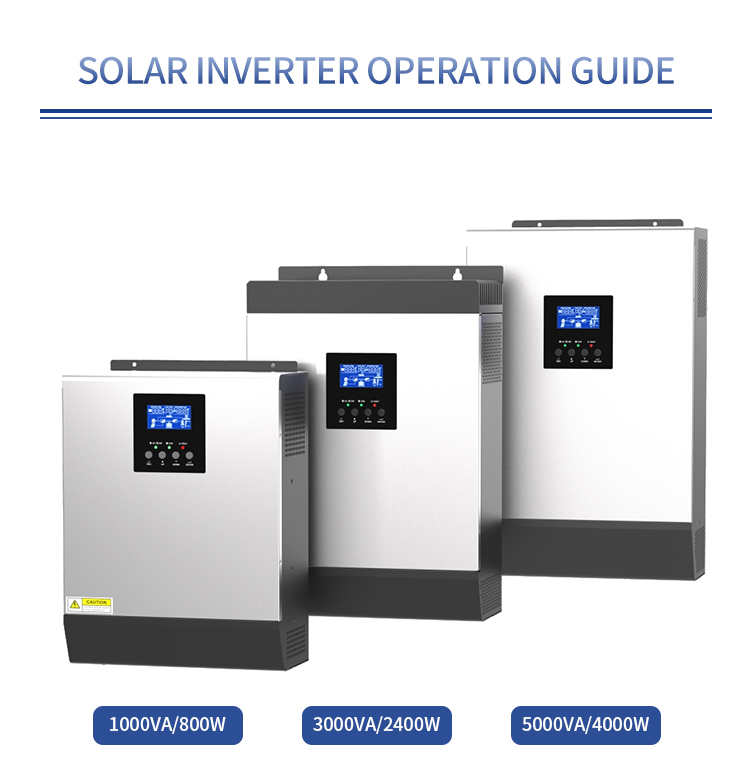

MODEL	lSolar MPS 1K-24	lSolar MPS 3K-24	MPS 5K-48
Rated Power	1000VA/800W	3000VA/2400W	5000VA/4000W
INPUT
Nominal Voltage	230VAc
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50,60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge Power	2000VA	6000VA	10000VA
Efficiency(Peak)	90%	93%	93%
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
WaveFORM	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24VDC	24VDC	48VDC
Floating Charge Voltage	27VDC	27VDC	54VDC
Overcharge Protection	31VDC	31VDC	60VDC
Maximum charge current	10A/20A	20A/30A	10A/20A/30A/40A/50AV60A
SOLAR CHARGER
MAX. PV Array Power	1000W	1000W/1500W	3000W/4000W
MPPT Range@ Operating Voltage	30-66VDC	30-66VDC/30-115VDC	60-115VDC
Maximum PV Array Open Circuit Voltage	75VDC	75VDC/145VDC	145VDC
Maximum Charging Current	40A	40A/60A	60A/80A
Maximum Efficiency	98%
Standby Power Consumption	2W
PHYSICAL
Dimension. DWH(mm)	368272128	439296141	540295140/468295136
Net Weight(kg)	7.4kg	8kg/10kg	11.5kg/13.5kg
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0℃ to 55℃
Storage Temperature	-15℃ to 60℃
