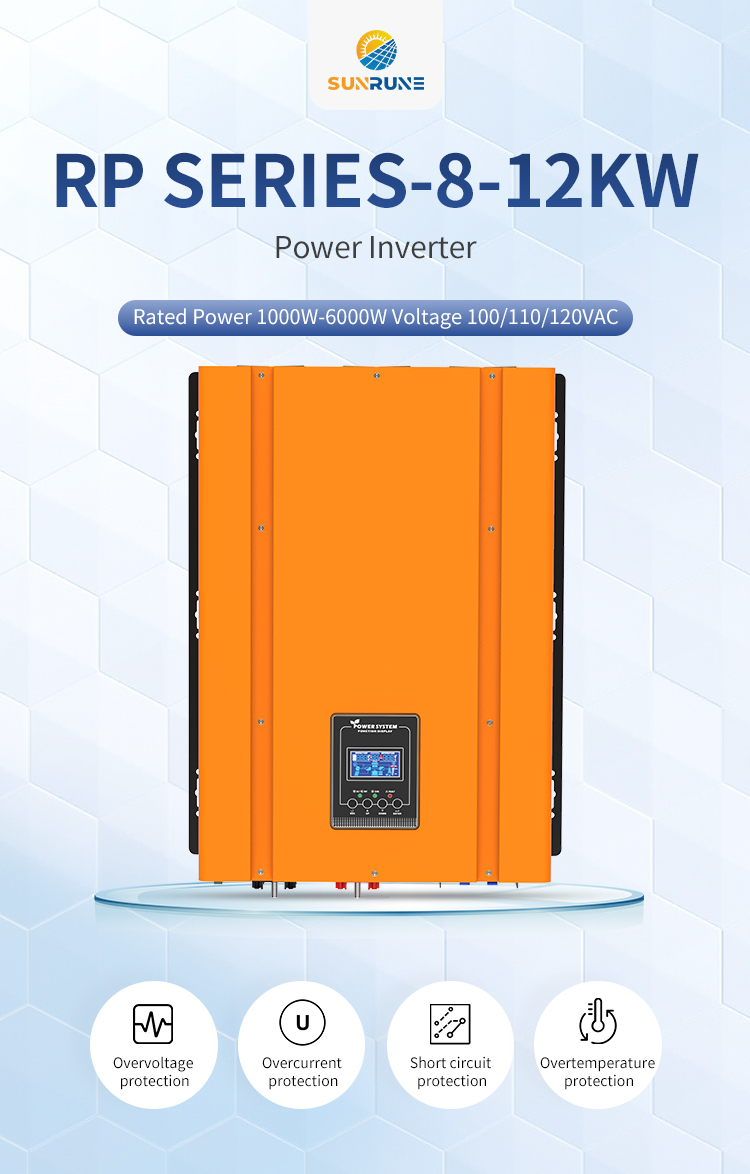

8-12KW Pure sine Wave Solar Inverters

Short Description:

1. Pure sine wave solar inverter
2. Color LCD display for easy monitoring
3. Overload and short-circuit protection
4. The inverter can be used with lithium batteries.
5. This off-grid solar inverter provides reliable, efficient power.
6. Cold start function of the inverter ensures start-up at low temperatures.
7. Configurable AC/battery input priority via LCD setting


Product Detail

Product Tags

Feature

1. This inverter is sure to provide you with uninterrupted power supply that's reliable and efficient.
2. Output power factor of 1 ensures that you get consistent and reliable power supply, while selectable high power charging current and selectable input voltage range for home appliances and personal computers allow you to customize the inverter to suit your specific needs.
3. This inverter is the configurable AC/battery input priority via LCD setting. This feature allows you to prioritize which power source you want to use for power generation, which ensures that you always have enough power for your appliances and devices.

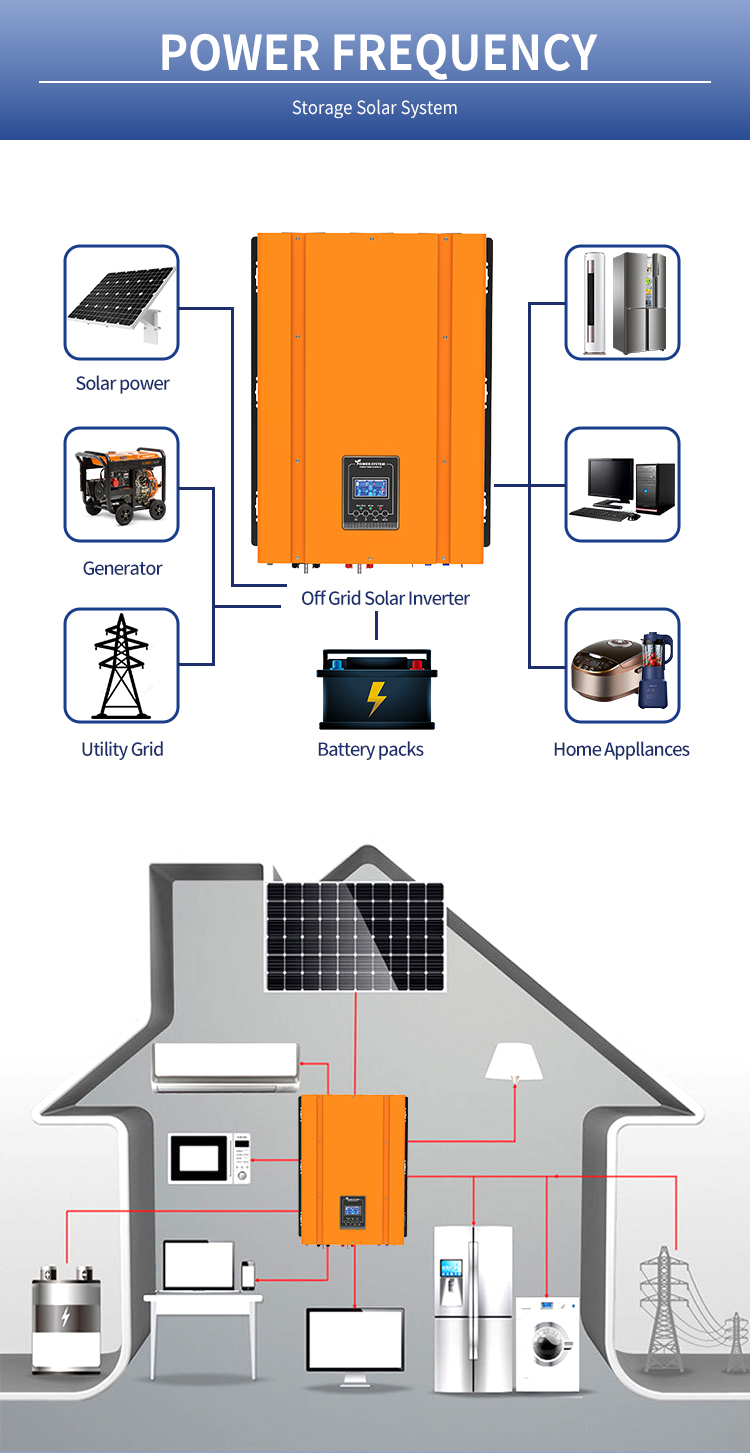

4. Compatible with generator power, which makes it ideal for use in places where there is no other source of power available. The auto restart feature is another great addition that ensures that your power supply is back up and running as soon as possible following an AC outage.
5. The Inverter also comes equipped with overload and short circuit protection, which gives you peace of mind knowing that your devices and appliances are safe from damage due to power overload or short circuiting.
6. The smart battery charger design ensures that your battery is optimized for performance and longevity, while the cold start function ensures that your inverter starts up even in the coldest temperatures.

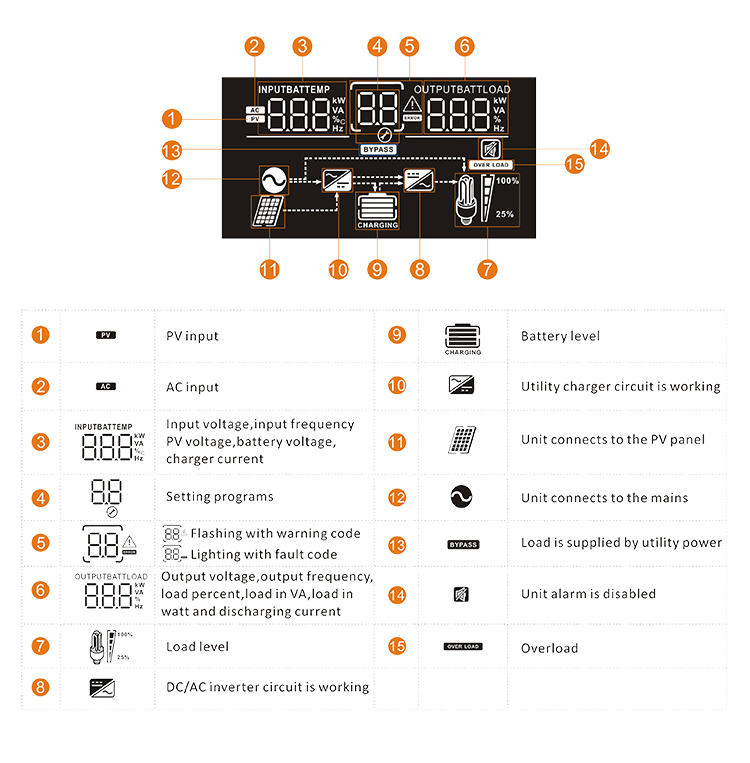

7. The color LCD display is another great feature that makes it easy to monitor and control your power supply. It gives you real-time feedback on everything from battery status to input and output voltage levels.
8. The inverter is designed to be used with lithium batteries, making it an extremely versatile and efficient power generation solution.

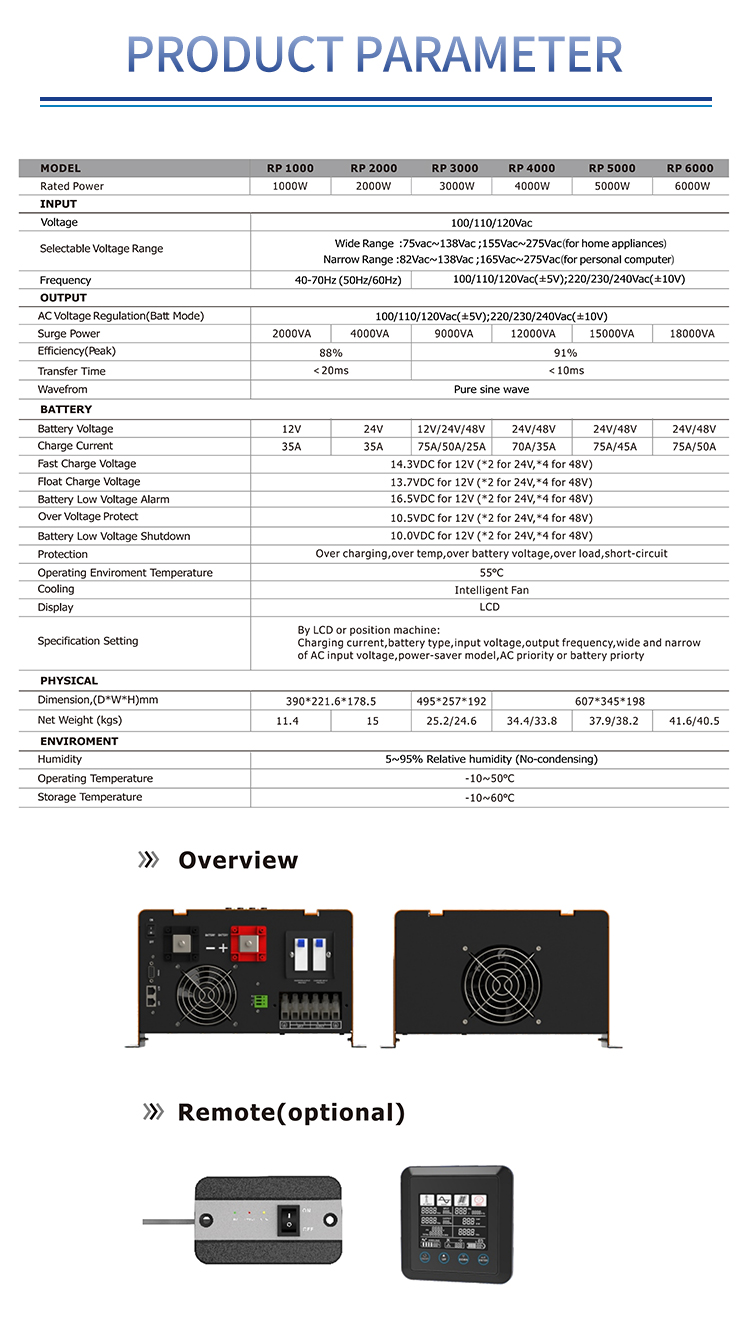

Product Paraments

Model Number RP 8000 RP 10000 RP 12000
Rated Power 8000W 10000W 12000W
INOUT
Voltage 100/110/120VAC;220/230/240VAC
Selectable Voltage Range Wide Range:75VAC-138VAC;155VAC-275VAC(for home appliances)
Narrow Range:82VAC-138VAC;165VAC-275VAC (for personal computer)
Frequency 40-70Hz (50Hz/60Hz)
OUTPUT
AC Voltage Regulation (Batt Mode) 220/230/240VAC (±10V)
Surge Power 24KVA 30KVA 36KVA
Efficiency (Peak) 90%
Transfer Time <20ms
Wave form Pure sine wave
BATTERY
Battery Voltage 48V/96V 48V/96V 48V/96V
Charge Current 75A/35A 75A/40A 75A/50A
Fast Charge Voltage 57.2VDC for 48V (*2 for 96V)
Float Charge Voltage 54.8VDC for 48V (*2 for 96V)
Battery Low Voltage Alarm 42.0VDC for 48V (*2 for 96V)
Over Voltage Protect 66.0VDC for 48V (*2 for 96V)
 Battery Low Voltage Shutdown 40.0VDC for 48V (*2 for 96V)
Protection Over charge,Over temperature,over battery voltage,over load,short-circuit
Operating Environment Temperatur 55℃
Cooling Intelligent Fan
Display LED
Specification Setting By LCD or position machine:Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priority
PHYSICAL
Dimension,(D*W*H)mm 610*450*201mm
Net Weight (kg) 58.7/59 67/66.5 71.8/72
ENVIROMENT
Humidity 5-95% Relative humidity (No-condensing)
Operating Temperature -10℃-50℃
Storage Temperature -10℃-60℃

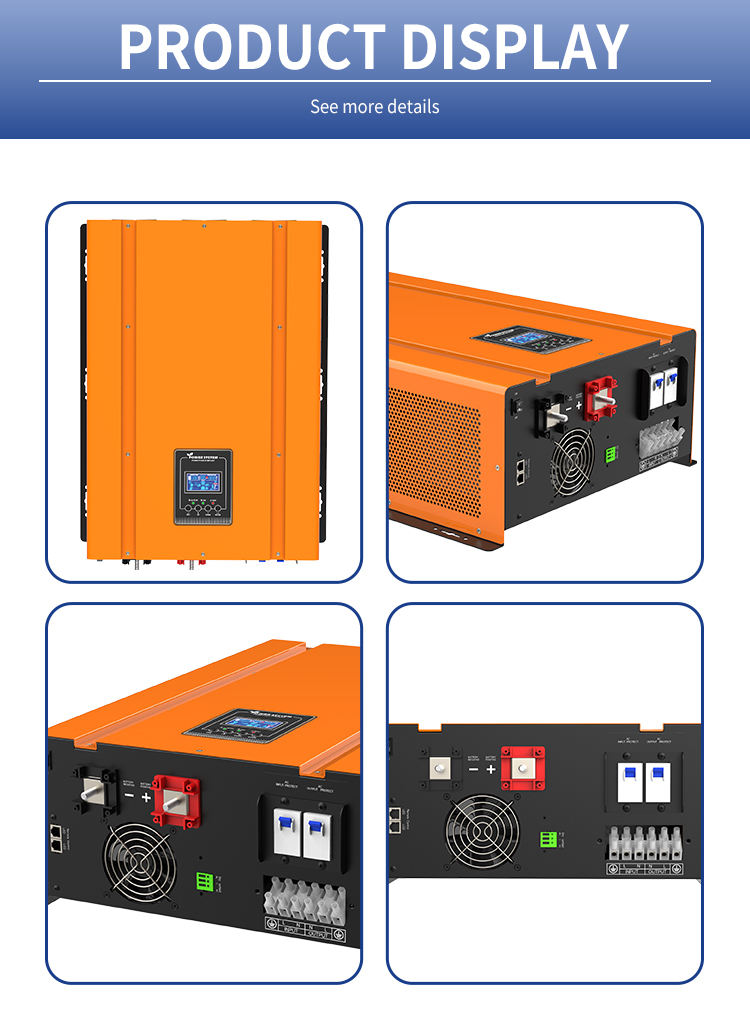

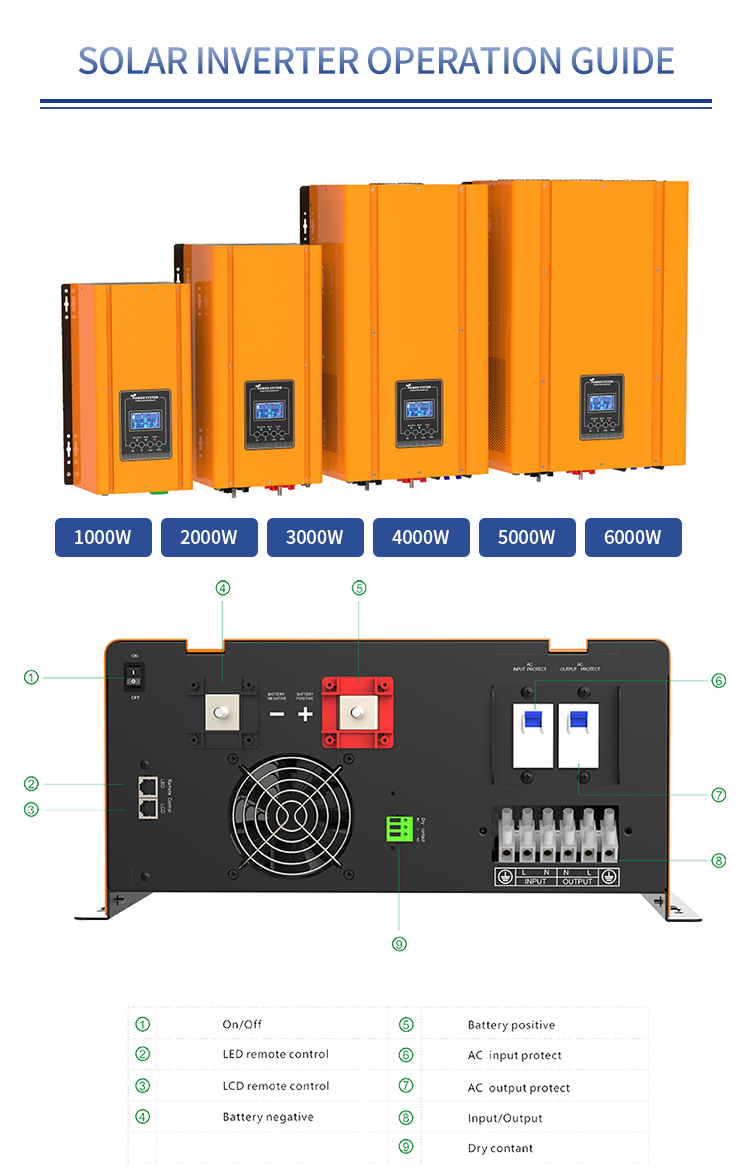

Product picture

pro1
pro2
pro3

MPS (4)

PRO
PRO2
PRO3
PRO4

PRO6
PRO7
PRO7
