MODEL |
YZ-ESS-3.6KWPLUS |
YZ-ESS-6.2KWPLUS |
|
Phase |
1-phase |
|
|
Maximum Input Power |
6200W |
6500W |
|
Rated Output Power |
3600W |
6200W |
|
Maximum Solar Charging Current |
120A |
120A |
|
GRID-TIE OPERATION PV Input(DC) |
||
|
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
|
Start-up Voltage/Initial Feeding Voltage |
60VDC/90VDC |
|
|
MPPT Voltage Range |
60-450VDC |
|
|
Number of MPPT Trackers/Maximum Input Current |
1/23A |
|
|
GRID OUTPUT(AC) |
||
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Output Voltage Range |
195.5~253VAC |
|
|
Nominal Output Current |
15.7A |
27.0A |
|
Power Factor |
>0.99 |
|
|
Feed-in Grid Frequency Range |
49-51±1Hz |
|
|
EFFICIENCY |
||
|
Maximum Conversion Efficiency （ Solar to AC) |
98% |
|
|
TWO LOAD OUTPUT POWER(V2.0) |
||
|
Full Load |
3600W |
6200W |
|
Maximum Main Load |
3600W |
6200W |
|
Maximum Second Load(battery mode) |
1200W |
2067W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
|
OFF-GRID OPERATION AC INPUT |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
|
Maximum AC Input Current |
40A |
50A |
|
Nominal Operating Frequency |
50/60Hz |
|
|
Surge power |
7200W |
10000W |
|
BATTERY MODE OUTPUT(AC) |
||
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Output Waveform |
Pure sine wave |
|
|
Efficiency （DC to AC） |
94% |
|
|
BATTERY & CHARGER |
||
|
Nominal DC Voltage |
24VDC |
48VDC |
|
Maximum Charging Current (Solar to AC) |
120A |
120A |
|
Maximum AC Charging Current |
100A |
|
|
PHYSICAL |
||
|
Dimension,D*W*H(mm) |
420*310*110 |
|
|
Carton Dimension,D*W*H(mm) |
500*310*180 |
|
|
Net Weight(kgs) |
10 |
12 |
|
Gross Weight(kgs) |
11 |
13 |
|
INTERFACE |
|
|
|
Communication Port |
RS232/WIFI/GPRS/LITHIUM BATTERY |
|
Feature
1. The dual output feature of this solar inverter allows you to power and support two separate appliances or electrical systems simultaneously.
2. With an output power factor of 1.0, this solar inverter provides efficient and reliable power delivery, ensuring that your devices receive the electrical power they need.
3. This solar inverter is equipped with WIFI and GPRS capabilities, allowing you to monitor and control it using your Android device, maximising convenience and accessibility.

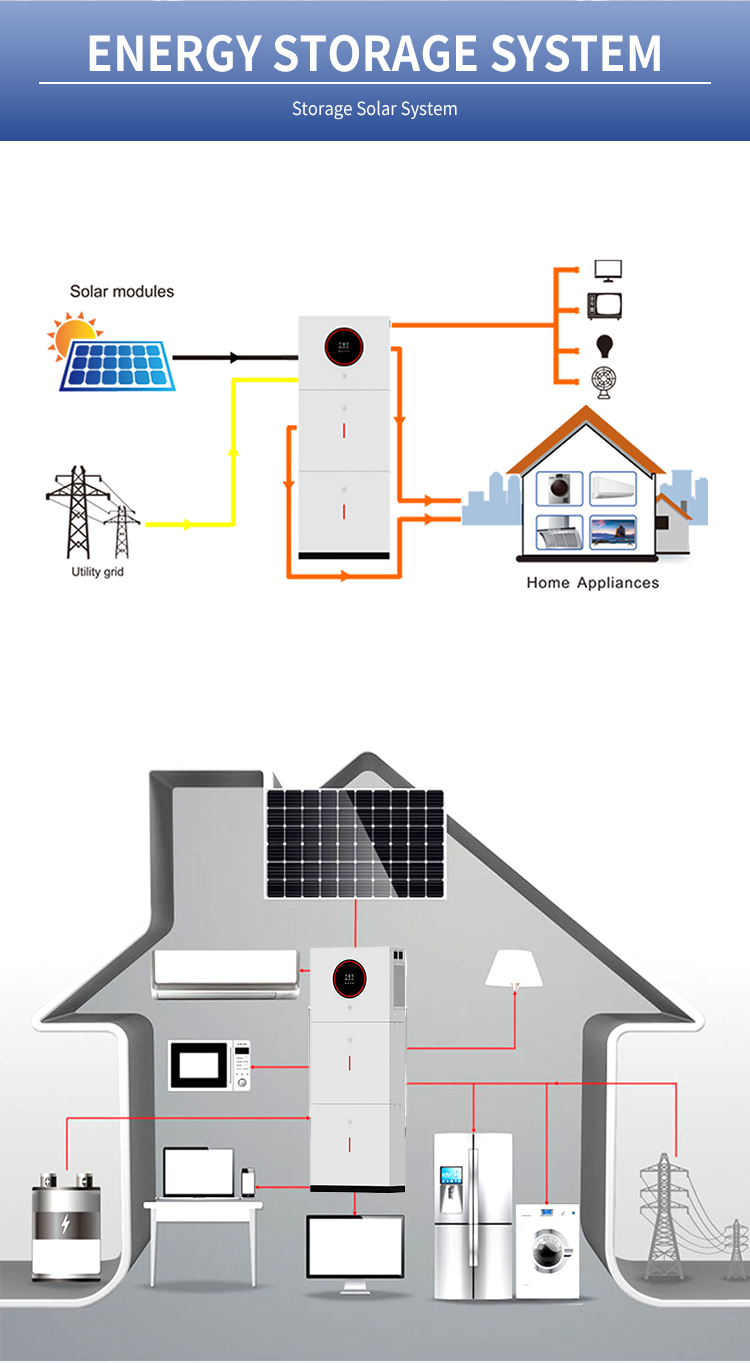

4. This solar inverter is designed to convert solar energy into a pure sine wave, making it suitable for both on-grid and off-grid applications, ensuring a stable and reliable power supply.
5. The one-button factory reset function simplifies the process of resetting the solar inverter to its original configuration, making it quick and easy to troubleshoot or restart when needed.
6. The built-in lithium battery auto activation feature ensures that the supplied lithium battery is automatically activated and ready for use, eliminating the need for manual activation.
7. With a wide PV input voltage range of 60-450VDC, this solar inverter can efficiently convert a wide range of input voltage from solar panels, maximising energy harvesting capabilities.
8. The built-in anti-dust kit of this solar inverter provides protection against dust and other particles, ensuring optimal performance even in harsh environments with high levels of dust and debris.
9. The intelligent battery charging design of this solar inverter optimises the battery charging process, extending battery life and improving overall system efficiency.
10. The built-in 120A MPPT solar charge controller allows maximum solar charging capabilities, supporting up to 6KW or 6.2KW of solar power depending on the model, ensuring efficient utilisation of solar energy.
Product picture
