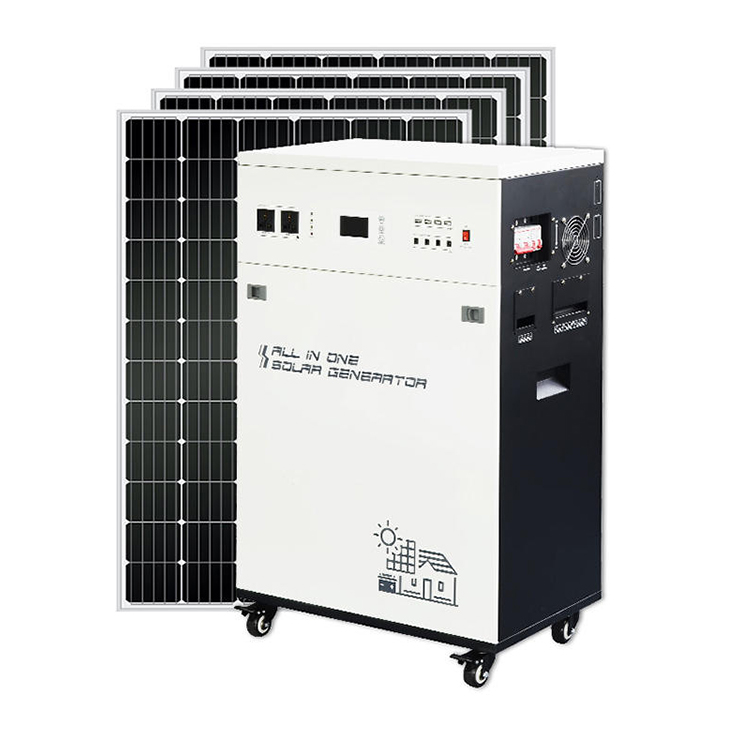

All in one Off Grid Solar Generator Portable Power Station System 3000w 5000w 220v 6000w Dc Ac

Short Description:

3x peak power, excellent load capacity.
Built-in inverter, solar controller, and battery.
AC charge current 0-10A selectable.

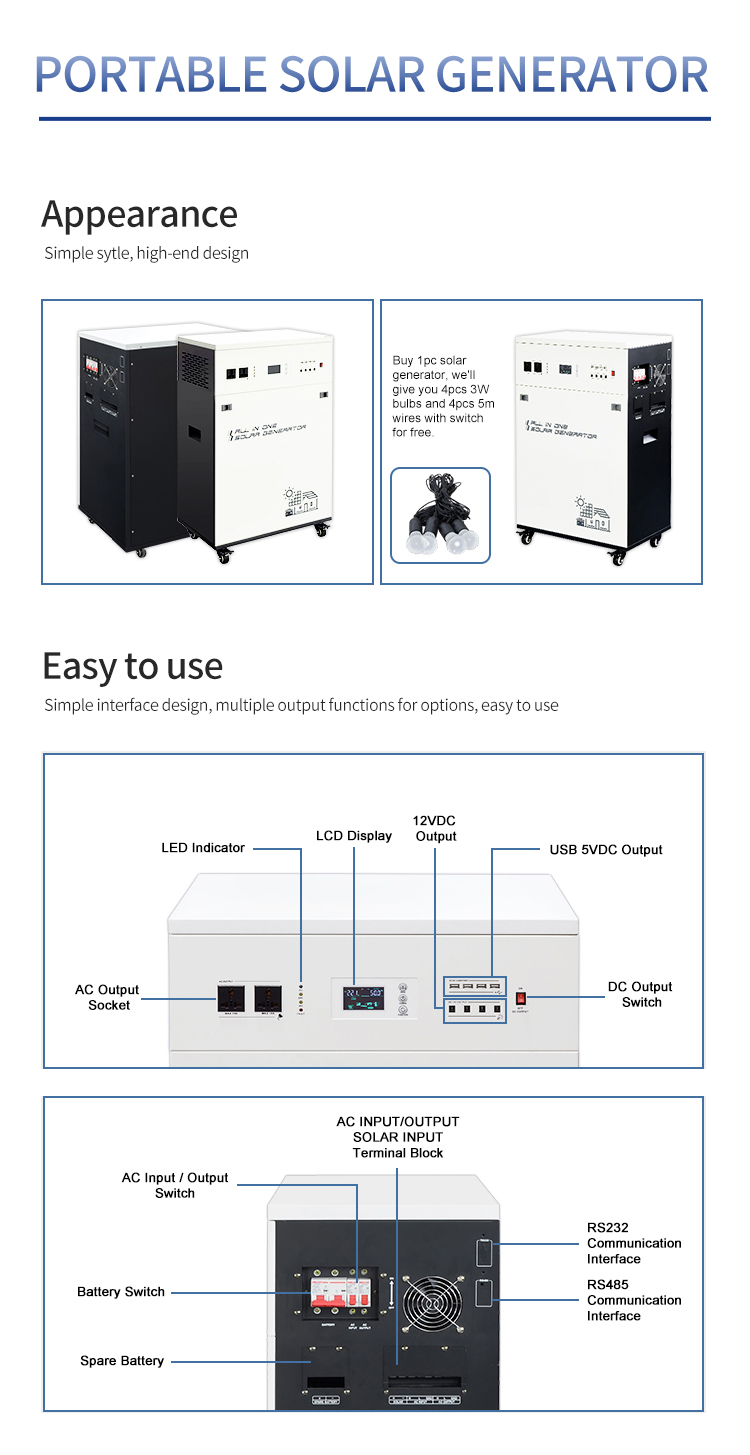

Multiple outputs: 2*AC output jacks, 4*DC 12V, 2*USB.
Operation mode AC first/ECO mode/Solar is first selectable.
Built-in AVR stabilizer for continuous pure sine wave output.
Built-in automatic AC charger and AC power switch.
Digital LCD and LED to display the operating status of the unit.
LVD/HVD/charging voltage adjustable, suitable for all kinds of batteries.
Increased fault code, and real-time monitoring of the working condition.


Product Detail

Product Tags

Model: ESS

YESS1.5W

YESS2W

YESS3W

YESS4W

YESS5W

YESS6W

YESS7W

Capacity

Rated power

1500W

2000W

3000W

4000W

5000W

6000W

7000W



Peak power (20ms)

4500VA

6000VA

9000VA

12KVA

15KVA

18KVA

21KVA

Input

Standard battery voltage

48VDC



AC input voltage range

85VAC~138VAC(110VAC)
95VAC~148VAC(120VAC)
170VAC~275VAC(220VAC)
180VAC~285VAC(230VAC)
190VAC~295VAC(240VAC)



AC input frequency range

45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)

Output

Conversion efficiency

285%(Battery mode);>99%(AC mode)



AC Output voltage

110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%(Battery Mode)
110VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%(AC Mode)



AC Output frequency

50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)



AC Output waveform

Pure Sine Wave



THD

≤3%(Linear load)



DC Output voltage

4*DC12V;4*USB(5V)

AC
charger

AC charging current

0~30A(Depends on model)



AC charging method

Three-stage(constant current,constant voltage, floating charge)

solar
charger
(Optional)

Charging mode

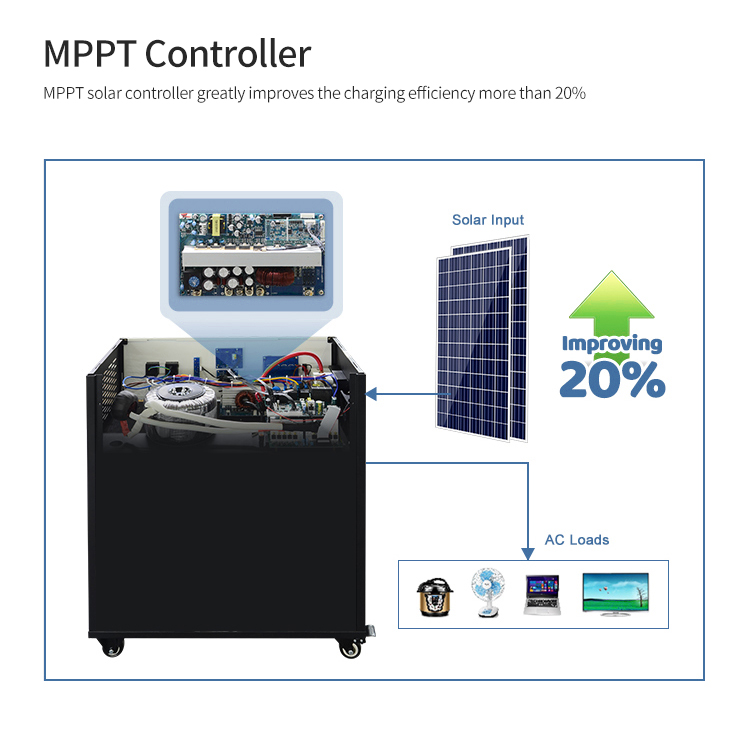

PWM/MPPT



Max PV Input Voltage(Voc
(At the lowest temperature)

PWM:100V;MPPT:150V



PV input voltage range

PWM:60V-88V; MPPT:60V-120V



Charge & discharge current

60A



Max PV input power

3360W

Inbuilt
battery

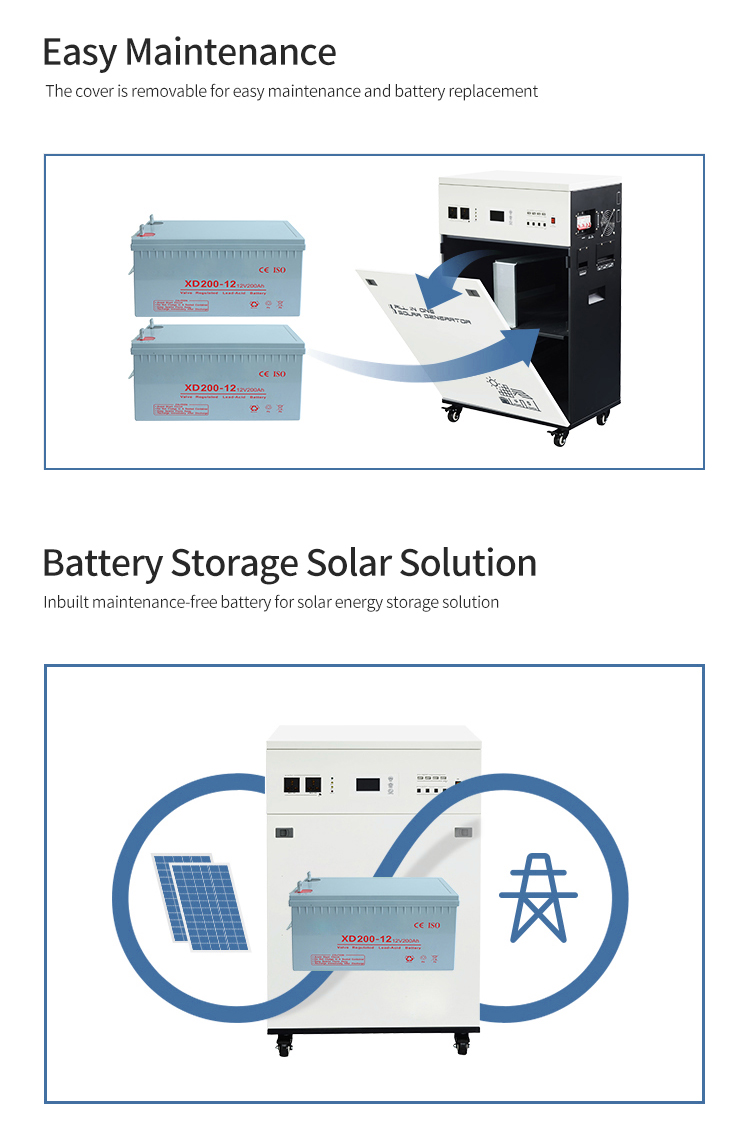

Capacity

4*200AH



Battery size(LxWxH)/pcs

522*240*218 (244)

Other

Transfer time

≤4ms



Protection

With over-voltage, low-voltage, overload, short circuit, high tempreature protections



Display

LCD&LED



Cooling way

Cooling fan in intelligent control

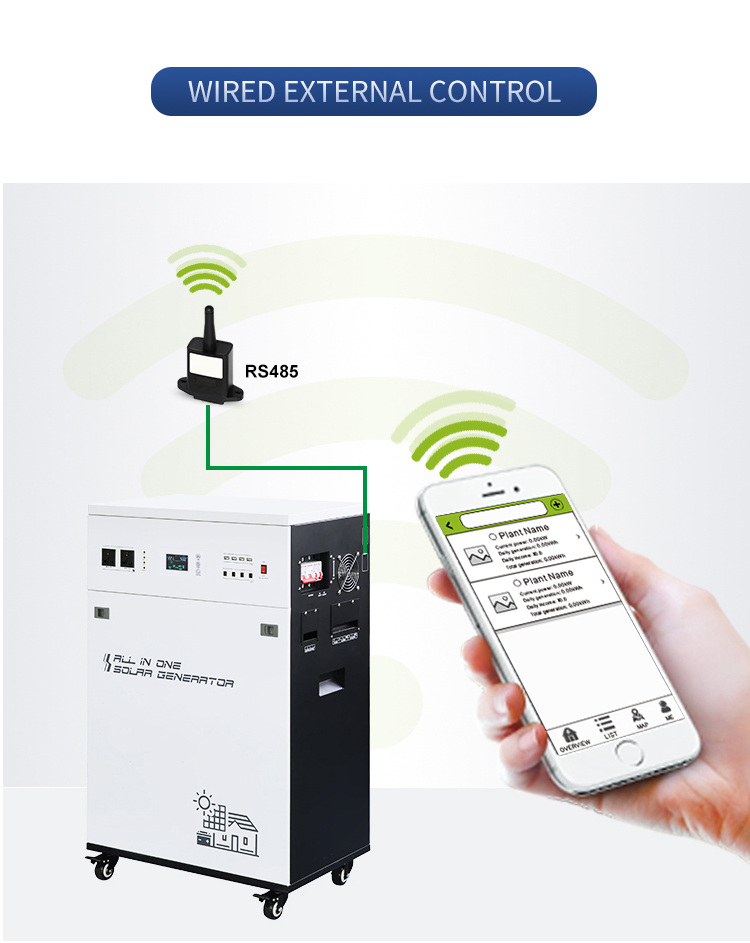

Communication(Optional)

RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported)

Working
mode
(selectable)

d1

AC priority mode



d2

ECO mode



d3

Solar priority mode

Work
environment

Operating temperature

-10℃~40℃



Storage temperature

-15℃~60℃



Elevation

2000m(More than derating)



Humidity

0%~95%,No  condensation

Physical

Dimension    LxWxH(mm)

610*535*960



Net weight(kg)
(without battery)

53

55

59

61

63

64

66

Packing

Dimension    LxWxH(mm)

688*612*1093



Gross weight(kg)
(without battery)

68

70

74

76

78

79

81



Quantity/CTN

1pcs per wooden case



Feature

1. With a peak power output that is 3 times greater than its rated power, this unit offers exceptional performance, ensuring it can handle even the most demanding electrical loads.
2. The integrated inverter, solar controller, and battery in this unit make it incredibly convenient, eliminating the need for separate components and reducing installation and maintenance.
3. The adjustable AC charge current can be set between 0 and 10A for optimum charging efficiency.
4. Equipped with multiple output options, including two AC outputs, four DC 12V ports, and two USB ports, this unit offers ample connectivity for a variety of devices, ensuring you can power and charge multiple devices at the same time.
5. Choose from AC first mode, ECO mode, or Solar first mode depending on your preference and the availability of power sources. This flexibility allows for efficient use of energy and the ability to prioritize renewable sources such as solar.
6. Enjoy a reliable and stable power supply thanks to the built-in Automatic Voltage Regulator (AVR) stabilizer, which ensures a continuous output of high-quality, pure sine wave power, essential for powering sensitive electronics and appliances.
7. No need to manually switch between power sources. The built-in automatic AC charger and AC power switch seamlessly switch between mains and battery power, ensuring uninterrupted power without user intervention.
8. Stay informed about the performance and status of the unit with the digital LCD and LED display, providing clear, real-time information about operating conditions, battery level, charging status, and other key parameters.
9. Adjust the Low Voltage Disconnect (LVD), High Voltage Disconnect (HVD), and charging voltage settings to suit the specific requirements of your batteries, ensuring optimum charging and protection regardless of battery type or configuration.
10. Benefit from enhanced monitoring capabilities with increased fault code detection and real-time monitoring of system health. This allows any problems to be identified and rectified in good time, ensuring that the unit operates efficiently and reliably.

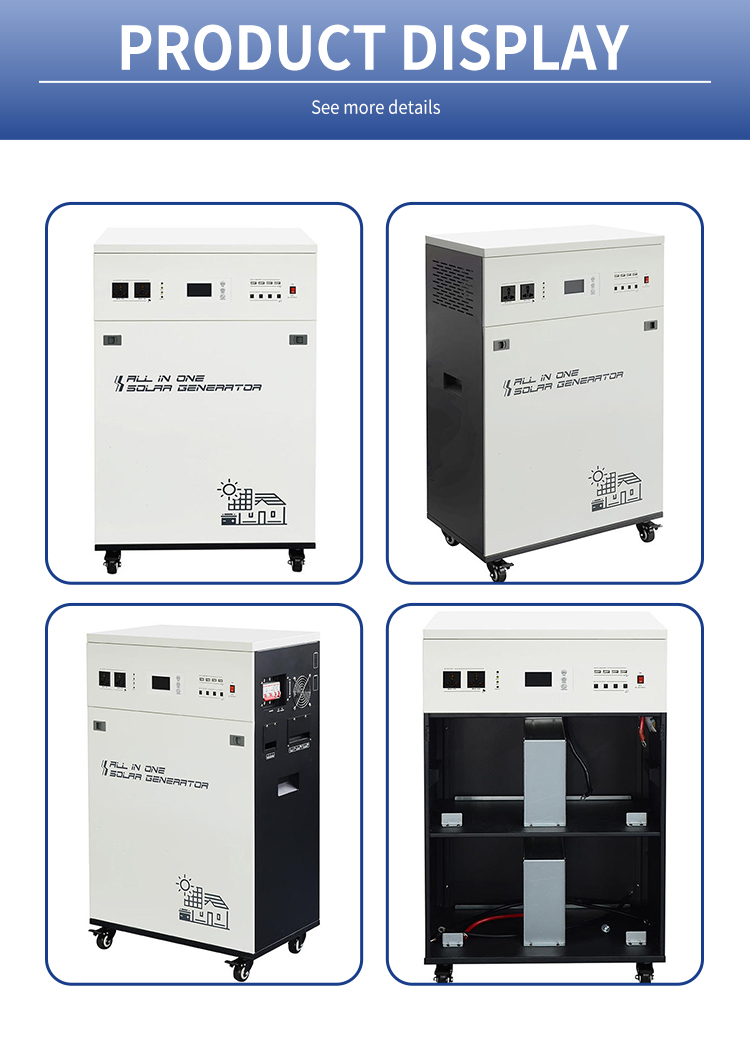

Product picture

1 All in one Inverter System 2 All in one Inverter System 3 All in one Inverter System 4 All in one Inverter System 5 All in one Inverter System 6 All in one Inverter System 7 All in one Inverter System 8 All in one Inverter System 9 All in one Inverter System
