Best Pure Sine Wave Solar Inverter With Mppt Charger Controller

Short Description:

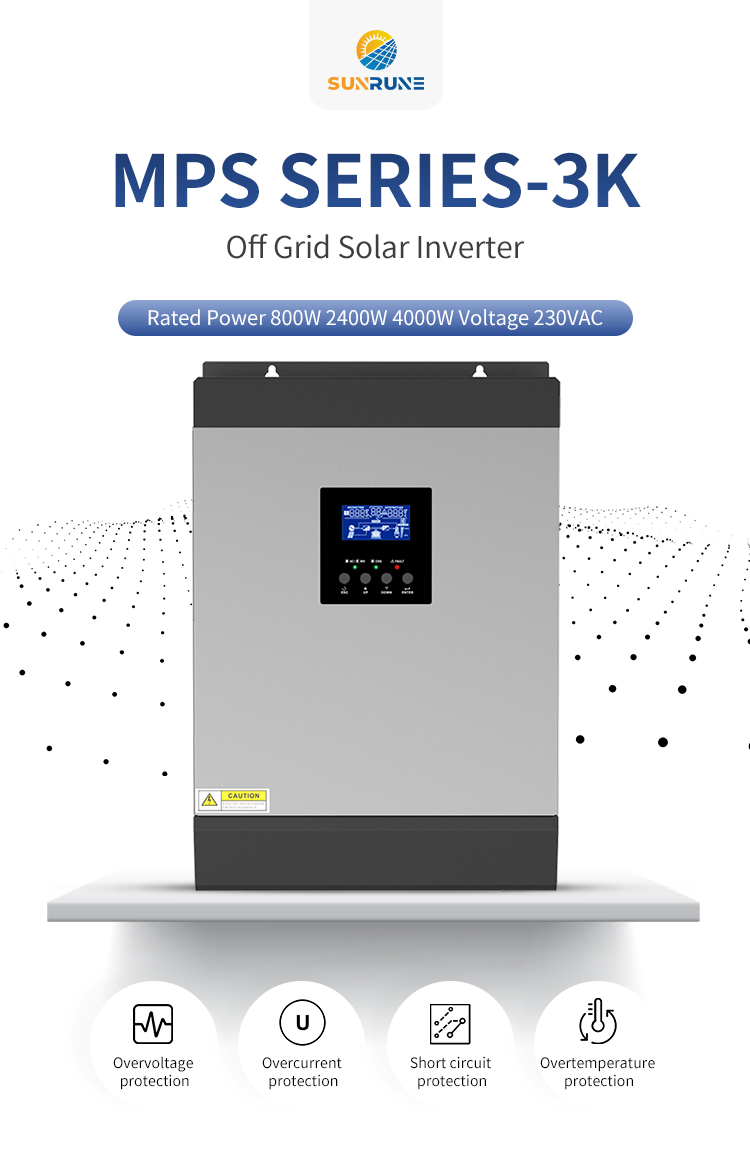

1. MPS-3K inverter, high-efficiency pure sine wave inverter
2. Built-in MPPT solar charge controller improves stability.
3. The charging current can be adjusted to suit the size of the application.

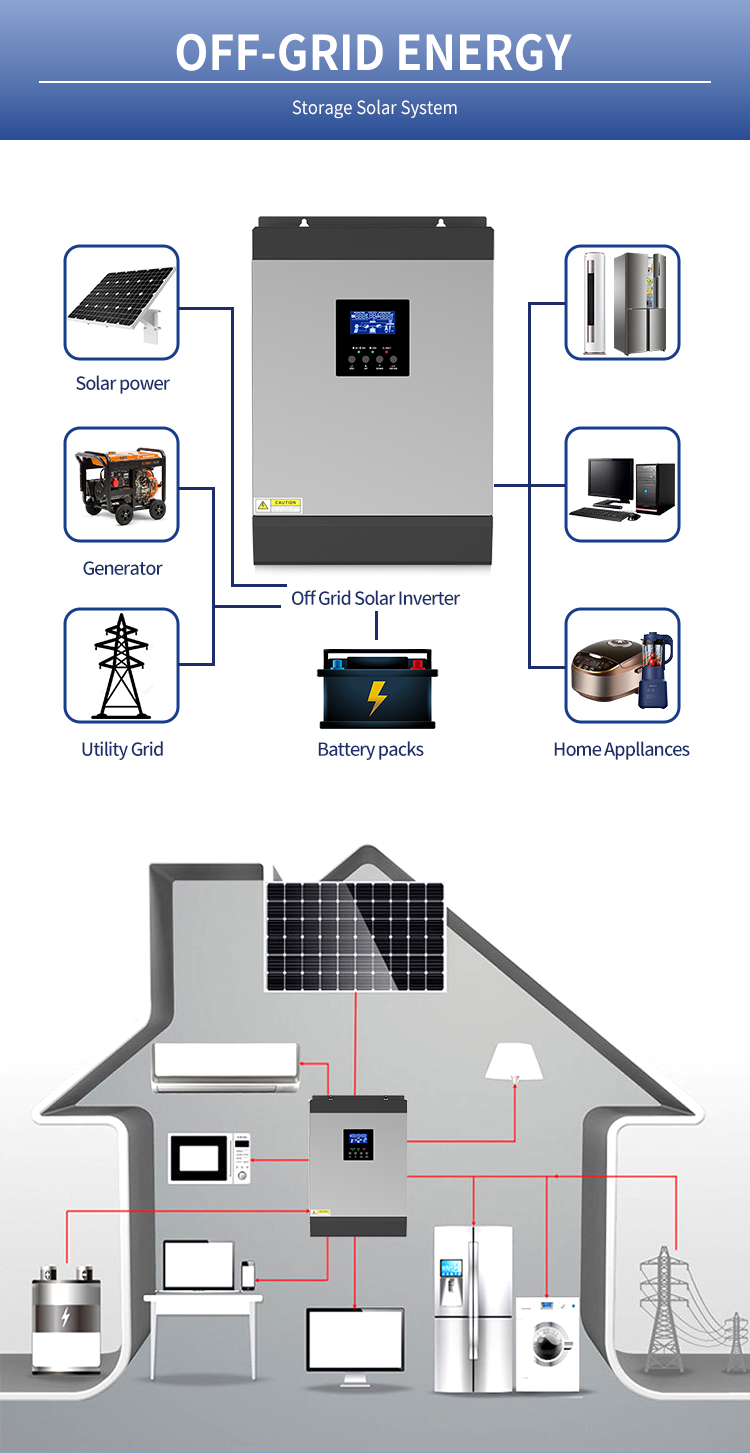

4. Compatible with utility and generator power.
5. Automatic restart when mains power is restored
6. Overload and short circuit protection for added safety
7. Operates in parallel with up to six units (30 kVA), each providing 5 kVA.
8. The input voltage range can be adjusted to suit home appliances and personal computers.


Product Detail

Product Tags

Product Description

1. MPS-3K inverter is pure sine wave inverter, which is more efficient than the modified wave inverter.
2. Product built-in MPPT solar charging controller, so that’s will be more stable when you use it.
3. During use, both household appliances and personal computers can choose the input voltage range.
4. Charging current can be selected according to the size of the application.
5. The AC/Solar input priority can be set on the LCD.
6. Inverter compatible with mains voltage or generator supply.
7. The inverter restarts automatically when the AC is recovering.
8. With the performance of overload and short circuit protection.
9. MPS-3K inverter intelligent charger design to optimize battery performance.
10. It should be noted during the operation that up to 6 units (30KVA) can be operated in parallel, with only 5KVA available.

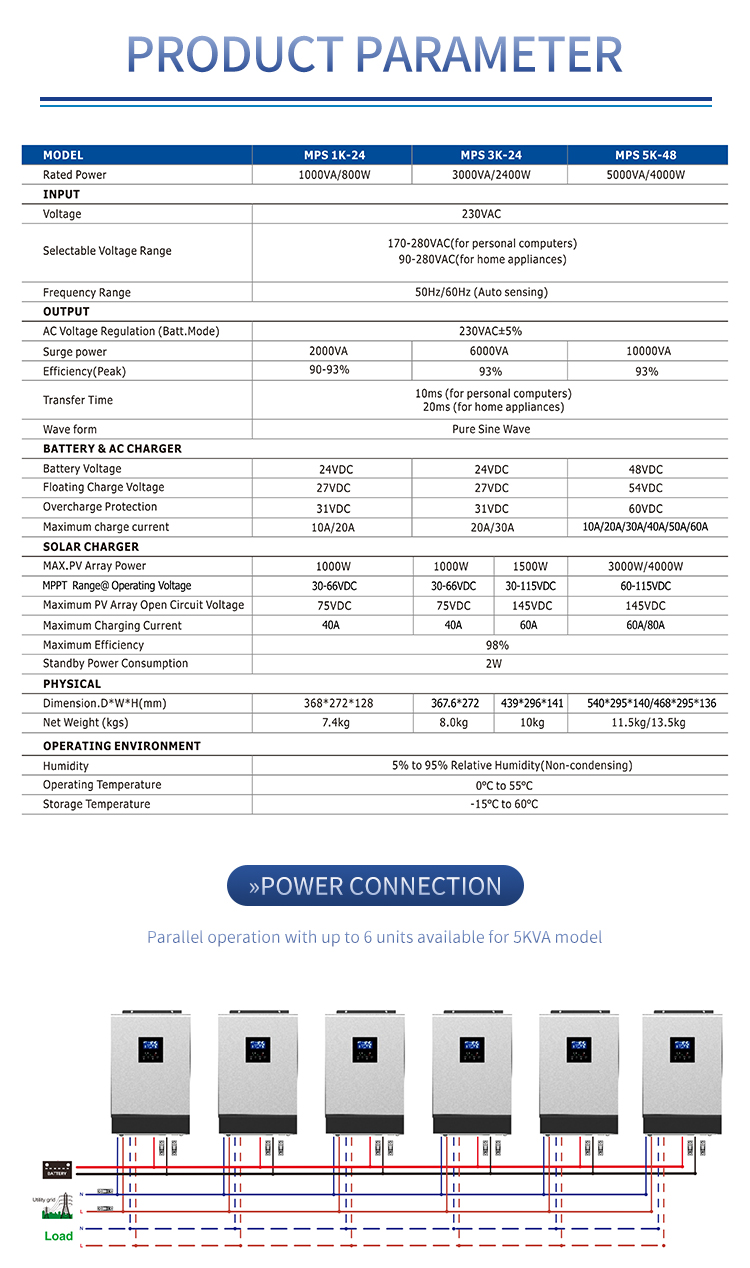

Product Paraments

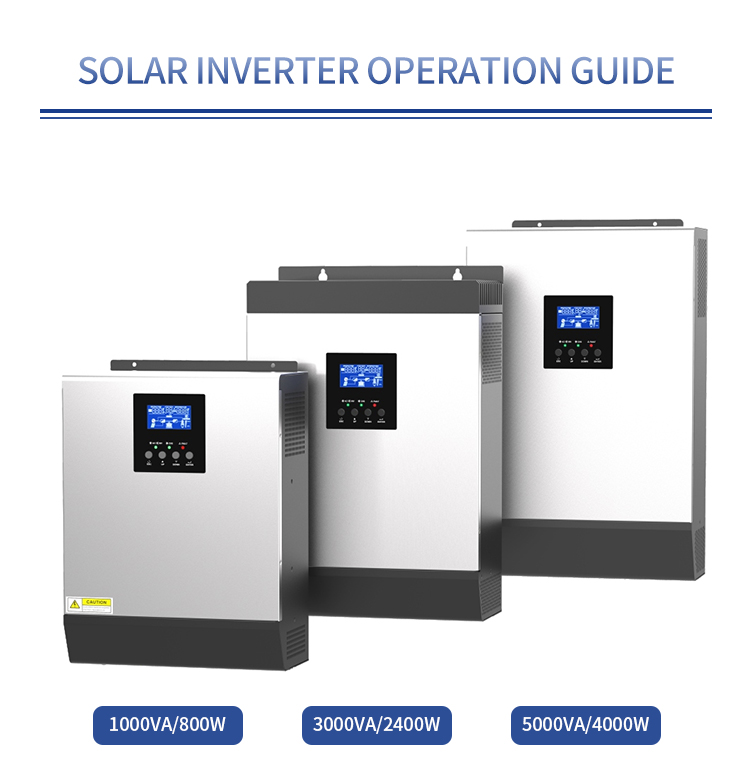

MODEL lSolar MPS 1K-24 lSolar MPS 3K-24 MPS 5K-48
Rated Power 1000VA/800W 3000VA/2400W 5000VA/4000W
INPUT
Nominal Voltage 230VAc
Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range 50,60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Surge Power 2000VA 6000VA 10000VA
Efficiency(Peak) 90% 93% 93%
Transfer Time 10ms(for personal computers) 20ms(for home appliances)
WaveFORM Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 24VDC 48VDC
Floating Charge Voltage 27VDC 27VDC 54VDC
Overcharge Protection 31VDC 31VDC 60VDC
Maximum charge current 10A/20A 20A/30A 10A/20A/30A/40A/50AV60A
SOLAR CHARGER
MAX. PV Array Power 1000W 1000W/1500W 3000W/4000W
MPPT Range@ Operating Voltage 30-66VDC 30-66VDC/30-115VDC 60-115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC/145VDC 145VDC
Maximum Charging Current 40A 40A/60A 60A/80A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension. D*W*H(mm) 368*272*128 439*296*141 540*295*140/468*295*136
Net Weight(kg) 7.4kg 8kg/10kg 11.5kg/13.5kg
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ to 55℃
Storage Temperature -15℃ to 60℃

Product Paraments

MPS (1)
MPS (2)
MPS (3)

MPS (5)

MPS (6)
MPS (7)
MPS (8)
MPS (9)

MPS (10)
MPS (11)
MPS (12)
