Feature
1. SUNRUNE Photovoltaic panels come with a 12-year product warranty and a 25-year linear power output warranty. This ensures that you get the maximum investment and you can enjoy worry-free solar power for decades to come.
2. SUNRUNE new multi-busba PERC cell PV panel has revolutionized the solar industry with its advanced semi-cell configuration. These panels assembled with the latest technology and offer several advantages over traditional solar panels.
3.SUNRUNE photovoltaic panels have passed CE, IEC61215, IEC61730 and other international certifications. These certifications ensure that our panels meet strict international standards and are of the highest quality.
4. By using battery cutting technology, These photovoltaic panels effectively reduce the hot spot risk of high-power modules. This not only improves the overall power generation performance, but also increases the reliability of these panels in system applications.
5. SUNRUNE Solar photovoltaic panels can effectively use solar energy resources to generate electric energy, which can save a lot of electric energy in the family.
6. Our panels have high output power and excellent performance in terms of shielding loss and temperature coefficient. So this is definitely your best bet.
7. Multi-busba PERC cells ensure that photovoltaic panels can generate more energy, allowing you to enjoy the highest efficiency and lower energy costs (LCOE).
8. SUNRUNE PV panels are designed to reduce the shading effect on energy generation, this means that you can enjoy more consistent energy production and greater efficiency. Additionally, the reduced shading effect also results in lower resistive loss, which results in increased energy yield.
Product Paraments
Model | YZPV-10 | YZPV-30 | YZPV-50 | YZPV-80 | YZPV-100 | YZPV-120 | YZPV-150 | YZPV-200 | YZPV-250 | YZPV-300 |
The maximum power | 10W | 30W | 50W | 80W | 100W | 120W | 150W | 200W | 250W | 300W |
Maximum supply voltage | 17.8V | 28V | 30.8V | |||||||
Maximum power current | 0.56A | 1.68A | 2.77A | 4.49A | 5.32A | 6.74A | 7.97A | 10.63A | 8.92A | 9.74A |
Open circuit voltage | 21.6V | 33.6V | 36.9V | |||||||
Short circuit current | 0.61A | 1.82A | 2.99A | 4.85A | 5.74A | 7.16A | 8.61A | 11.48A | 9.64A | 10.51A |
Application Class | Class A | |||||||||
Product size | 360*260*17mm | 580*360*25mm | 700*540*30mm | 1015*540*35mm | 1200*540*35mm | 1330*540*35mm | 1480*670*35mm | 1630*670*35mm | 1480*992*35mm | 1640*992*35mm |
QTY | 20PCS | 10PCS | 5PCS | 5PCS | 5PCS | 5PCS | 2PCS | 2PCS | 2PCS | 2PCS |
G.W | 22.28KG | 28.3KG | 22.48KG | 33.72KG | 38.24KG | 43KG | 24KG | 31KG | 35KG | 40KG |
Outer box size | 52*38*27cm | 65*34*38cm | 69*34*44cm | 103.5*22.5*56cm | 122*22.5*56cm | 134*22.5*56cm | 112*22.5*56cm | 165*9*69cm | 149*9*100cm | 165*9*100cm |
Volume | 0.064m³ | 0.091m³ | 0.091m³ | 0.134m³ | 0.164m³ | 0.174m³ | 0.106m³ | 0.138m³ | 0.154m³ | 0.173m³ |

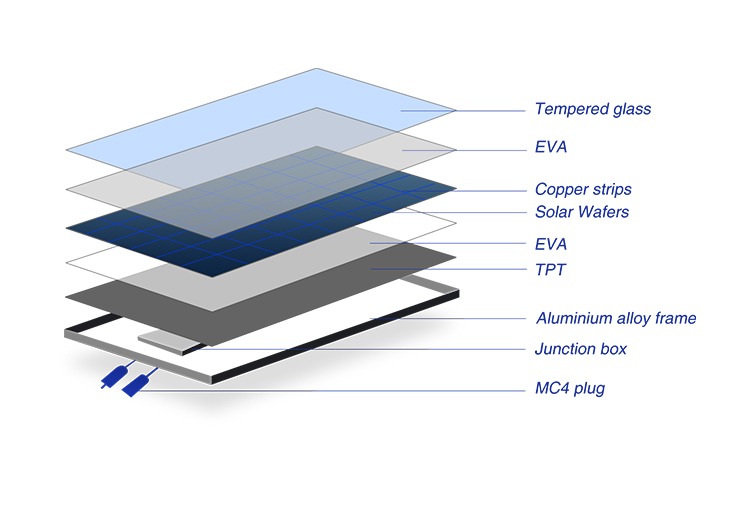

Material | 10BB PERC single crystal half cell, toughened glass,EVA, aluminum frame |
Product picture
