grid tied inverter home solar system pure sine wave high frequency solar inverter

Short Description:

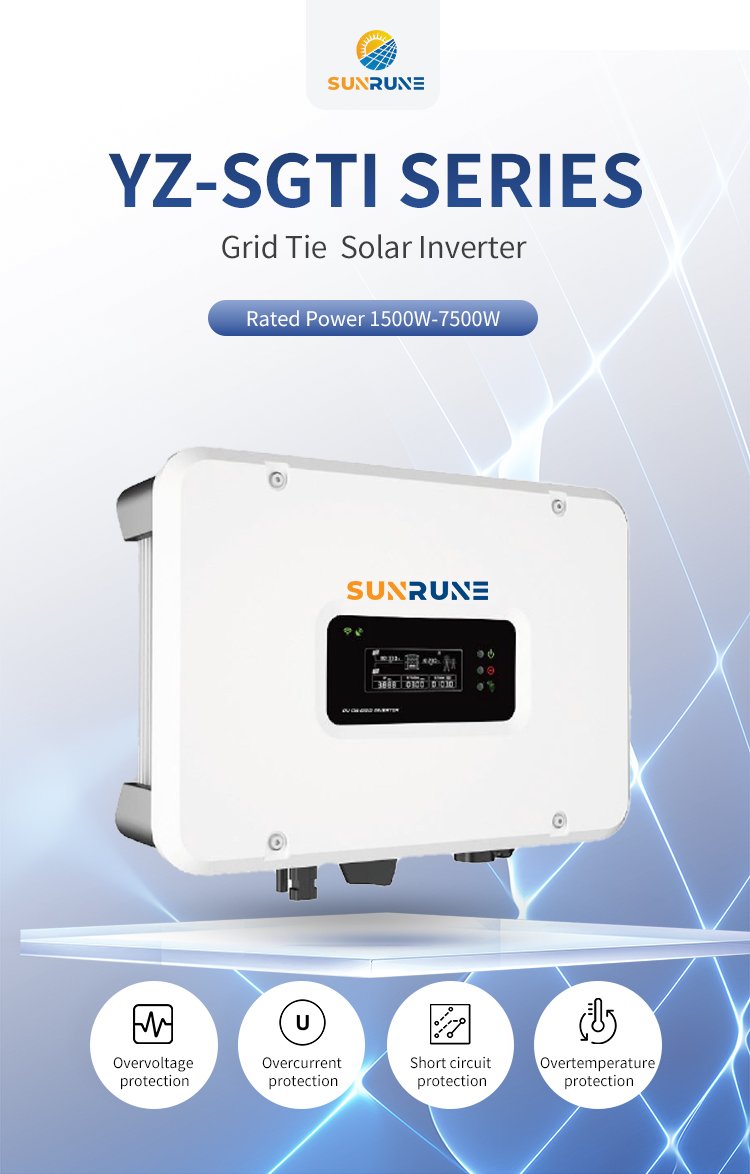

Single Grid-tied Solar Inverter
IP65 waterproof for 10+ years
Smart meter option available
Highly reliable; compact and easy to install
Safer: Complies with international quality standards
Tested by TUV, BVDekra and other organisations; Large LCD display
Power limitation; Wifi, GPRS or Lan communication options available
Single Grid Tie Solar Inverter; High quality Good quality Good material
Simpler: quick and easy installation by one person Fault codes can be viewed on the LCD display

Send email to us

Subscribe us

Product Detail

Product Tags

Model No	S1000YZ	S1500YZ	S2200YZ	S3000YZ	S3600YZ	S4400YZ	S5000YZ	S6000YZ
DC Side / Input Parameters
Max DC power (W)	1500	2250	3300	4500	5400	6600	7500	7500
Max DC voltage (Vdc)	450	450	500	500	500	500	500	500
Min System start/Shut down voltage (Vdc)	65/70	75/100	75/100	75/100	75/100	75/100	75/100	75/100
MPPT voltage range(Vdc)	70-450	100-450	100-450	100-450	100-450	100~450	100~450	100-450
Max. input current (A)	13				13/13
Number of MPP trackers	1	1	1	1	2	2	2	2
Strings per MPP tracker	1	1	1	1	1	1	1	1
AC Side / Output Parameters
Nominal output power (W)	1000	1500	2200	3000	3600	4000	5000	6000
Maximum output power (W)	1100	1650	2420	3300	3960	4400	5500	6600
Nominal output voltage/range (V)	208,220,230,240/180~270
AC grid frequency/range(Hz)	50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz
Maximum output current (A)	6	8	12	16	16	21	23	26
AC connection (with PE)	Single phase
Current distortion(THDi)	<1.5%	<1.5%	<1.5%	<1.5%	<2.5%	<2.5%	<2.5%	<2.5%
Power factor	~1%(Adjustable from 0.8 leading to 0.8 lagging)
Efficiency
Maximum conversion efficiency	97.30%	97.30%	97.40%	97.50%	97.80%	97.80%	97.50%	97.60%
European efficiency	97.00%	97.00%	97.10%	97.20%	97.30%	97.30%	97.20%	97.30%
MPPT efficiency	99.90%	99.90%	99.90%	99.90%	99.90%	99.90%	99.90%	99.90%
Safety and Protection
DC reverse-polarity protection	yes
Anti-islanding / Overvoltage protection	yes
Short circuit protection	yes
Leakage current protection	yes
Grid monitoring / Ground fault monitoring	yes
DC/AC side SPD(thermally protected)	yes
General Parameters
Dimension (L/W/H)(mm)	370/277/115				434/340/115
Freight (kg)	7				8
Embedded DC Switch	Optional
Night power consumption (W)	<0.2
Isolation type	Transformerless
Protection degree	IP65 according to IEC60529
Operation temperature（℃）	-25 ~ +60
Cooling concept	Natural convection
Operatiing Altitude (m)	<2000m without power derating
Acoustic noise level (dB)	<25
Display	Graphic LCD
Communication Interface	Standard WIFI; RS485 (optional)
Arranty	5 years; 5/7/10 years for optional

Feature

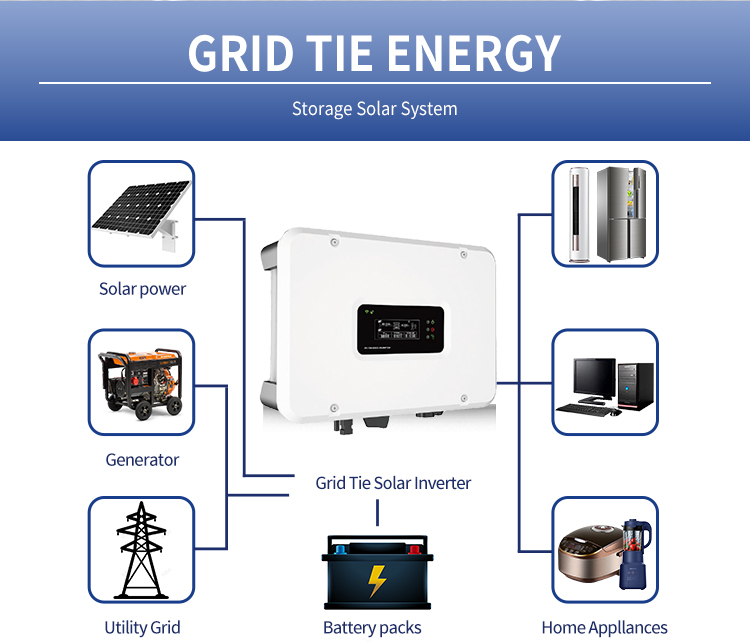

1.The Single Grid-tied Solar Inverter is an advanced solution that efficiently converts solar energy into usable electricity for residential or commercial applications.
2.Its IP65 waterproof rating ensures durability and longevity, allowing it to withstand harsh weather conditions for over 10 years without compromising performance.
3.With the option of a smart meter, users can accurately monitor and track their energy production and consumption, enabling better energy management and optimisation.

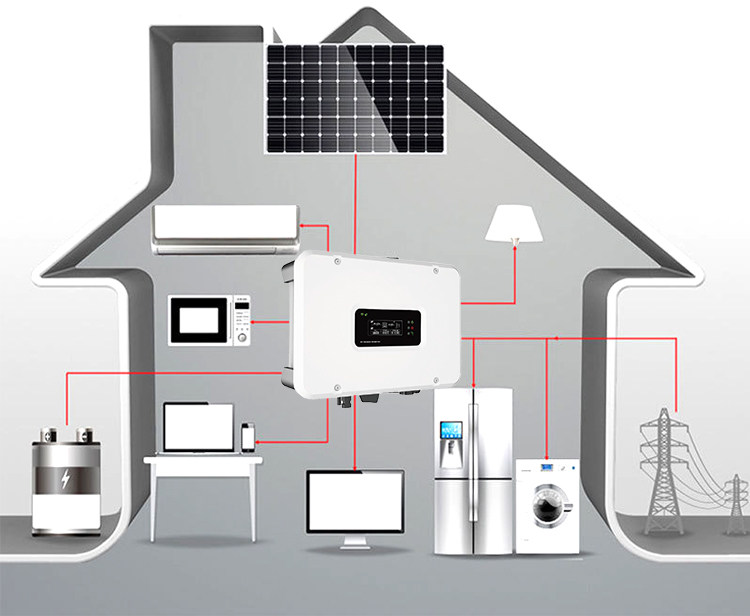

4.The Single Grid-tied Solar Inverter is highly reliable, offering consistent power conversion and seamless integration into existing grid systems. Its compact design makes it ideal for installations where space is limited, and it is easy to install by following the instructions provided.
5. Safety is paramount and this inverter complies with international quality standards, ensuring it meets stringent safety regulations and providing peace of mind for both users and installers.
6. It has been rigorously tested by renowned organisations such as TUV, BVDekra, guaranteeing performance, efficiency and compliance with industry standards. The large LCD display allows convenient monitoring and control of the system.
7. The inverter has power limitation capabilities, allowing the output to be flexibly adjusted to meet specific requirements or grid regulations. It also offers various communication options such as Wifi, GPRS or Lan for seamless remote monitoring and management.
8. As a single grid-tie solar inverter, it is built with high quality materials to ensure robustness and longevity in a wide range of operating conditions. Its performance is consistently reliable, making it a sound investment for solar power systems.
9. Installation of the Single Grid Solar Inverter is a straightforward process that can be completed quickly and easily by a single person. In the event of any problems or faults, users can easily view the fault codes directly on the LCD display, enabling efficient troubleshooting and timely resolution.
