Product Description

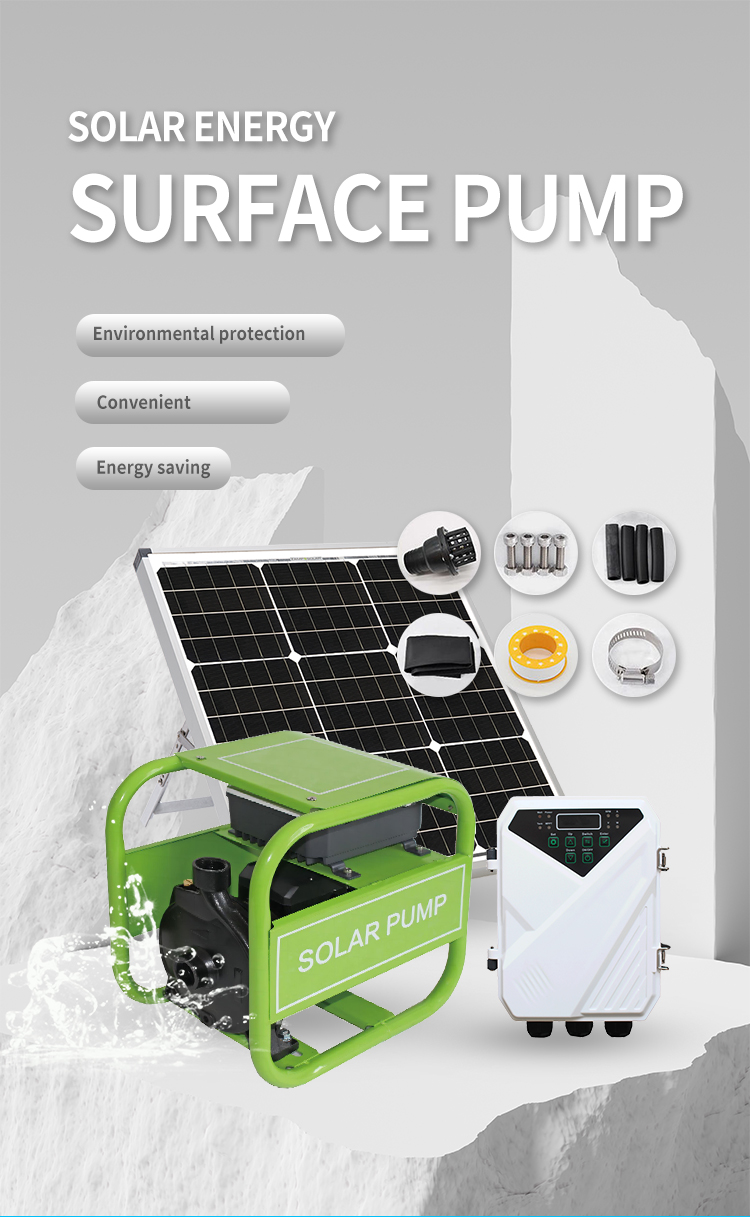

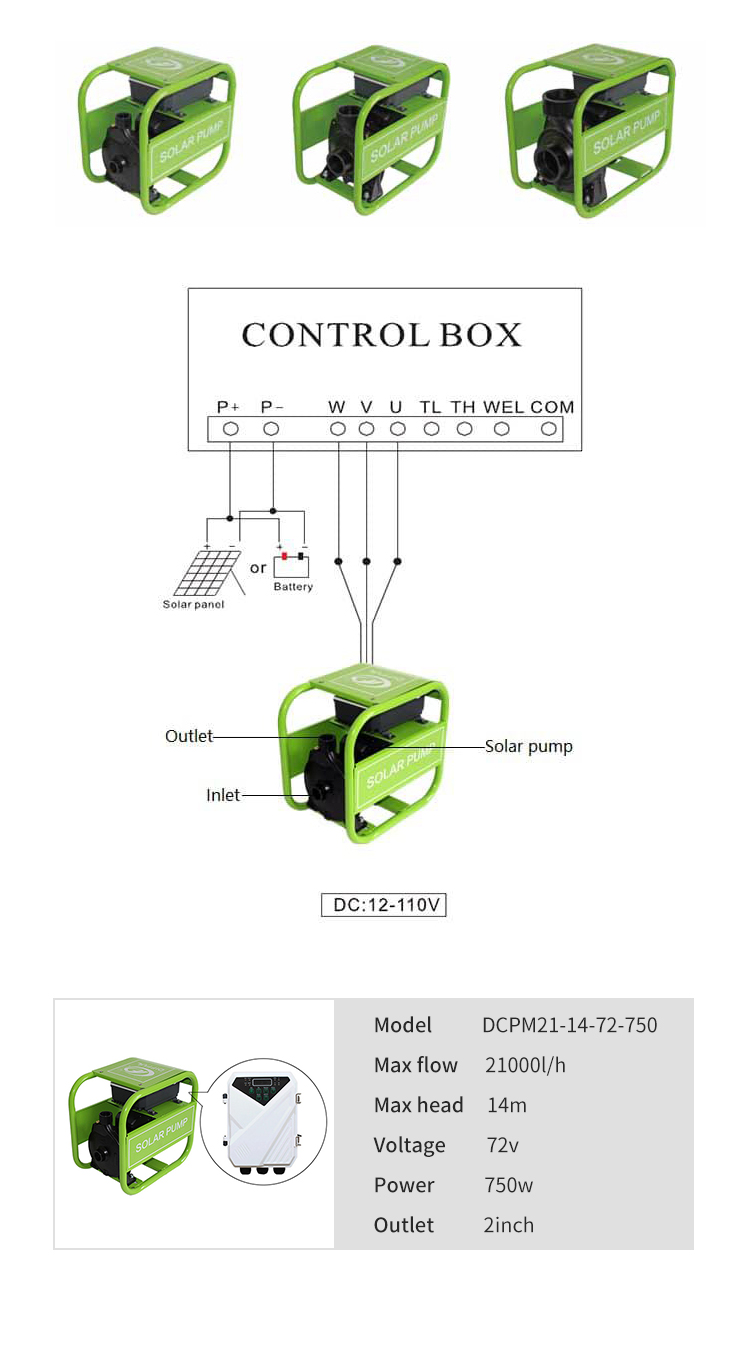

1. SUNRUNE Solar Surface Pump can combine with a solar panel, controller, and DC brushless motor to deliver high-quality performance that is both cost-effective and environmentally-friendly.
2. With the use of renewable energy and advanced technology, this pump provides a reliable and cost effective solution for irrigation, livestock and household water supply.
3. The Solar Surface Pumps are powered entirely by solar energy, making them more sustainable and environmentally friendly compared to fuel powered pumps. This pump don’t need the fuel, and produce zero emissions, having low maintenance costs,so which is an ideal choice for those living in remote areas.

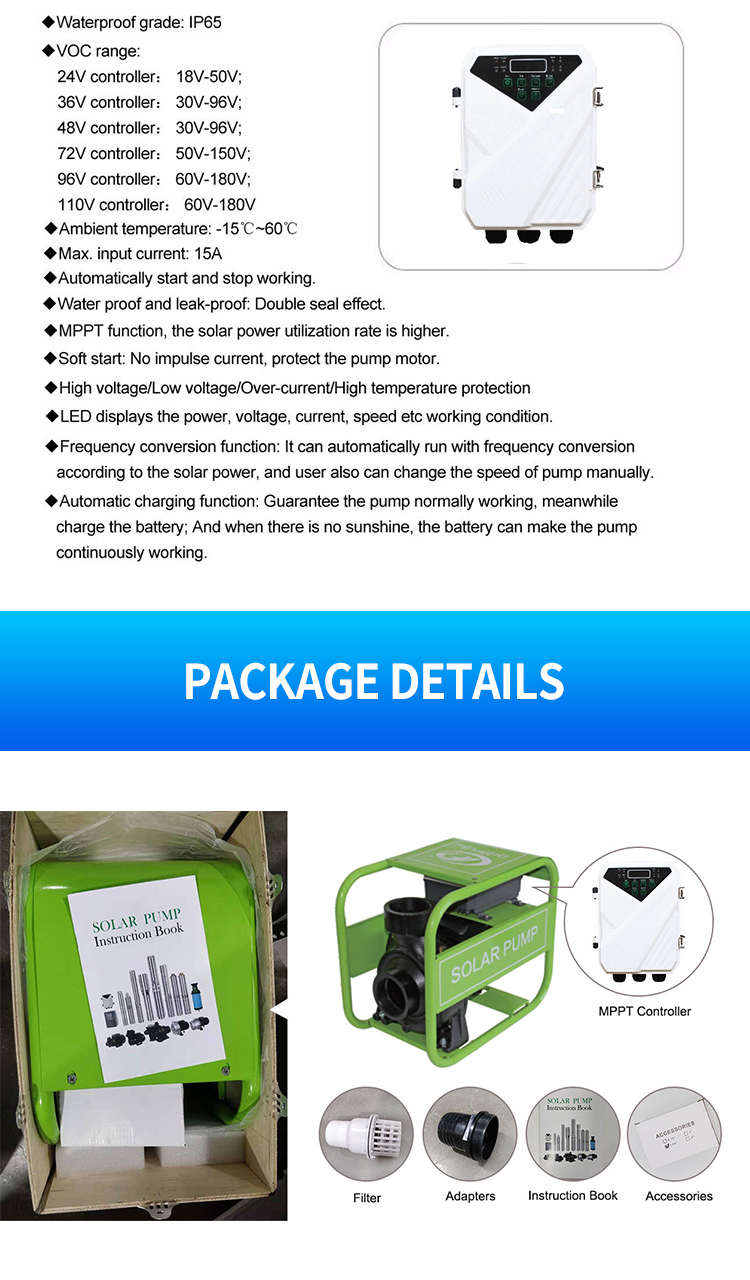

4. The Solar Surface Pump is fully equipped with automatic start and stop functions, and a soft start system which guarantees a smooth and silent operation.
5. SUNRUNE Solar Surface Pump can run on both DC and AC input, giving you the option of using either electricity or a generator as a power source.
6. With the use of a solar panel, the pumps can operate even in off-grid areas, bringing water to previously inaccessible areas for generations to come.
7. Solar Surface Pumps made with the high quality materials, such as 304 Stainless steel for the inlet and outlet, and die-cast aluminum for the motor body and controller shell, these pumps are built to withstand harsh weather conditions and frequent usage.

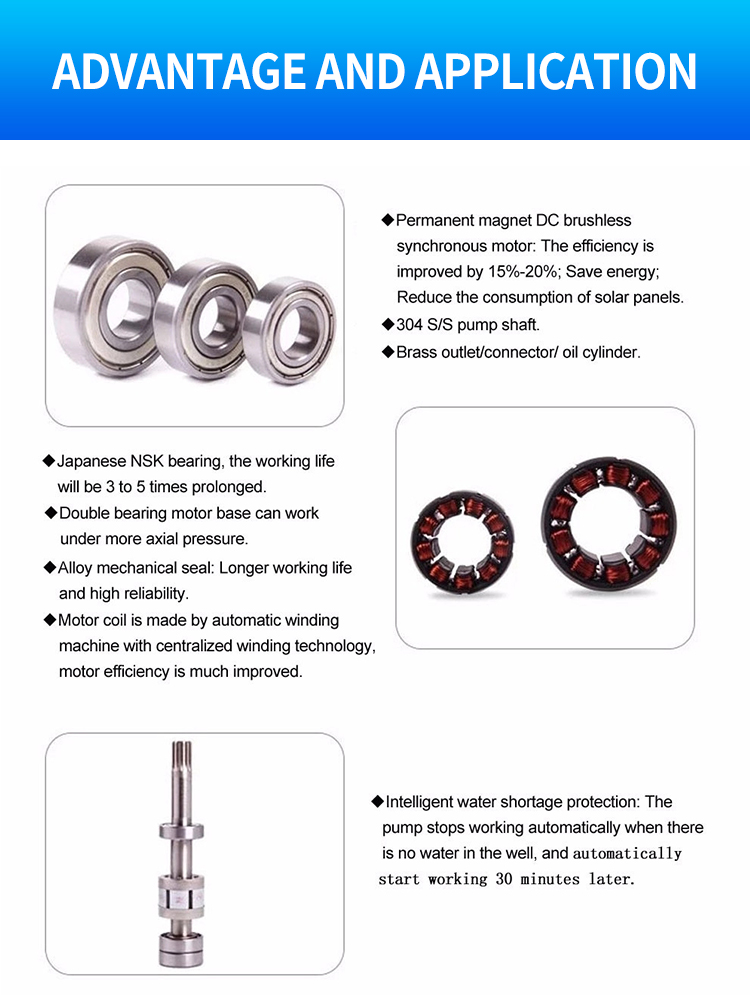

8. The use of a Permanent Magnet Brushless DC Motor (Without Hall) and a 32bit MCU/FOC/Sine Wave Current/MPPT controller in CPM Solar Surface Pumps ensures efficient water pumping.
9. Solar Surface Pumps come with a 3-year warranty, which is a testament to their durability and reliability. The pumps are easy to install and operate, making them a favorite of farmers and rural residents alike.
Environmentally friendly and sustainable; Reliable; weather-resistant and efficient; Powered by advanced technology such as a Permanent Magnet Brushless DC Motor (Without Hall).

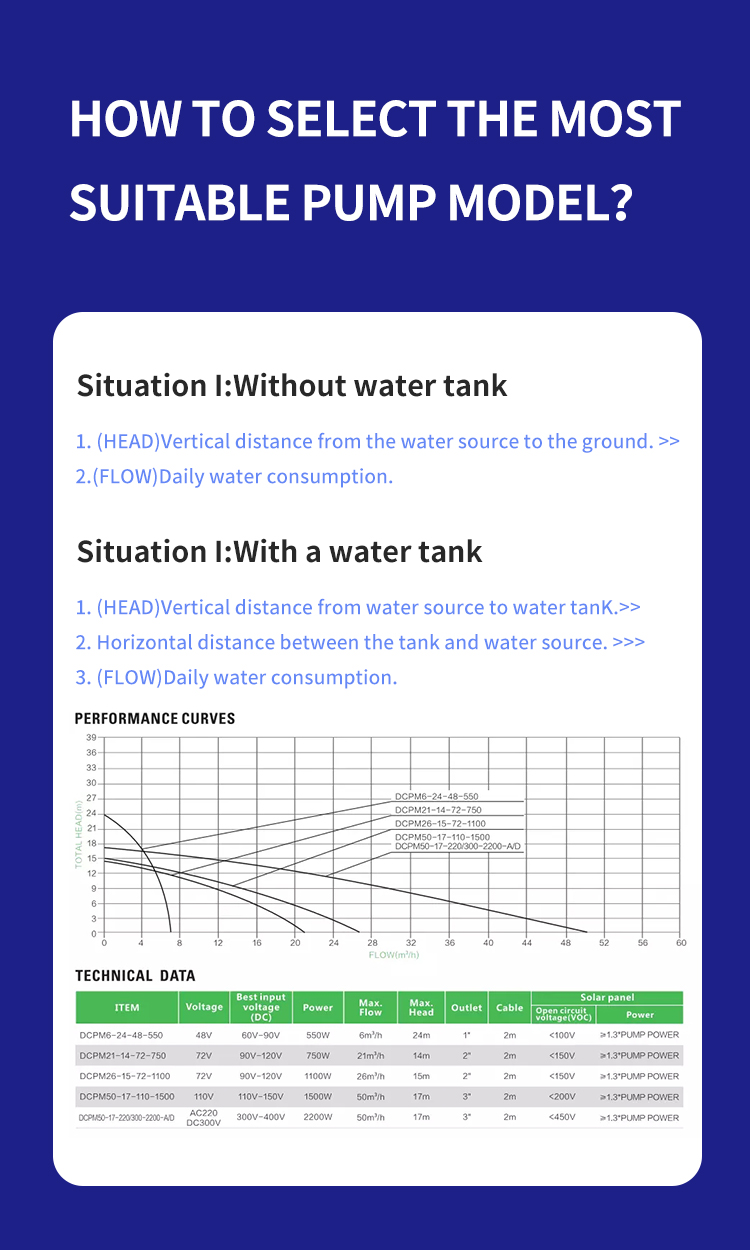

Product Paraments
ITEM | Voltage | Optimum input voltage (DC) | Power | Max Flow | Max Head | Outlet | Cable | Solar panel | ||
Open circuit voltage(voc) | Power | |||||||||
CPM | ||||||||||
DCPM6-24-48-550 | 48V | 60V -90V | 550W | 6m³/h | 24m | 1" | 0.6m | <105V | ≥1.3*PUMP | |
DCPM15-14-48-550 | 48V | 60V -90V | 550W | 15m³/h | 14m | 1.5" | 0.6m | <105V | ≥1.3*PUMP | |
DCPM21-14-72-750 | 72V | 90V-120V | 750W | 21m³/h | 14m | 2" | 0.6m | <160V | ≥1.3*PUMP | |
DCPM26-15-72-1100 | 72V | 90V-120V | 1100W | 26m³/h | 15m | 2" | 0.6m | <160V | ≥1.3*PUMP | |
DCPM50-17-110-1500 | 110V | 110V-150V | 1500W | 50m³/h | 17m | 3" | 0.6m | <210V | ≥1.3*PUMP | |
DCPM21-14-72-750-A/D | 85V-280V(AC) | 80V-430V (DC) |
750W | 21m³/h | 14m | 2" | 0.6m | <430V | ≥1.3*PUMP | |
DCPM26-15-72-1100-A/D | 85V-280V(AC) | 80V-430V (DC) |
1100W | 26m³/h | 15m | 2" | 0.6m | <430V | ≥1.3*PUMP | |
DCPM50-17-110-1500-A/D | 85V-280V(AC) | 80V-430V (DC) |
1500W | 50m³/h | 17m | 3" | 0.6m | <430V | ≥1.3*PUMP | |
DCPM50-17-110-1500-H/V | / | |||||||||
DCPM60-20-300-2200-A/D | 85V-280V(AC) | 80V-430V (DC) |
2200W | 60m³/h | 20m | 4" | 0.6m | <430V | ≥1.3*PUMP | |
DCPM60-20-300-2200-H/V | / | |||||||||
DQB | ||||||||||
DQB2-25-24-210 | 24V | 30V-48V | 210W | 2m³/h | 25m | 1" | 2m | <55V | ≥1.3*PUMP | |
DQB2-30-24-280 | 24V | 30V-48V | 280W | 2m³/h | 30m | 1" | 2m | <55V | ≥1.3*PUMP | |
DQB3-50-48-550 | 48V | 48V-90V | 550W | 3m³/h | 50m | 1" | 2m | <105V | ≥1.3*PUMP | |
DQB3-65-72-750 | 72V | 90V-120V | 750W | 3m³/h | 65m | 1" | 2m | <160V | ≥1.3*PUMP | |
DQB3-65-72-750-A/D | 85V-280V(AC) | 80V-430V (DC) |
750W | 3m³/h | 65m | 1" | 2m | <430V | ≥1.3*PUMP | |
DZB | ||||||||||
DZB2-25-24-210 | 24V | 30V-48V | 210W | 2m³/h | 25m | 1" | 2m | <55V | ≥1.3*PUMP | |
DZB2-30-24-280 | 24V | 30V-48V | 280W | 2m³/h | 30m | 1" | 2m | <55V | ≥1.3*PUMP | |
DZB3-50-48-550 | 48V | 48V-90V | 550W | 3m³/h | 50m | 1" | 2m | <105V | ≥1.3*PUMP | |
DZB3-65-72-750 | 72V | 90V-120V | 750W | 3m³/h | 65m | 1" | 2m | <160V | ≥1.3*PUMP | |
DZB3-65-72-750-A/D | 85V-280V(AC) | 80V-430V (DC) |
750W | 3m³/h | 65m | 1" | 2m | <430V | ≥1.3*PUMP | |
DJET | ||||||||||
DJET2.5-35-48-370 | 48V | 60V-90V | 370W | 2.5m³/h | 35m | 1" | 2m | <105V | ≥1.3*PUMP | |
DJET2.7-45-48-550 | 48V |
60V-90V |
550W | 2.5m³/h | 45m | 1" | 2m | <105V | ≥1.3*PUMP | |
DJET3.0-55-48-750 | 48V |
60V-90V |
750W | 3m³/h | 55m | 1" | 2m | <105V | ≥1.3*PUMP | |
DJET3.0-55-72-750 | 72V |
90V-120V |
750W | 3m³/h | 55m | 1" | 2m | <160V | ≥1.3*PUMP | |
DJET3-55-72-750-A/D | 85V-280V(AC) | 80V-430V (DC) |
750W | 3m³/h | 55m | 1" | 2m | <430V | ≥1.3*PUMP |
Product Picture
