Micro MPPT Solar Inverter GTB-1200 with APP Monitoring

Short Description:

1. Adopt pure sine wave output to improve performance
2. Built-in MPPT solar charge controller
3. Equipped with high speed UPS switching regulator
4. High frequency and small size make it ideal for use where space is limited.
5. Equipped with high power MOSFET fast drivers
6. Highest efficiency and longer life with automatic switching of the entire mains voltage.
7. 600W Micro Solar Inverter uses Microchip’s microprocessor technology to provide stable and reliable power.


Product Detail

Product Tags

Product Description

1. The new 600W micro solar inverter with MU processing utilizes Microchip's microprocessor technology to provide stable and reliable power for all your needs.
2. With its pure sine wave output, the 600W micro solar inverter generates high-speed SPWM for improved performance, ensuring your device runs smoothly and efficiently.
3. The built-in solar charge controller with MPPT tracking helps maximize your solar production and deliver more power while lowering your overall energy costs.
4. The 600W micro solar inverter is also equipped with a high-speed UPS switching controller to ensure you always have reliable backup power in the event of a power outage or other emergency. And thanks to its fully isolated boost circuit, this inverter is even safer and more reliable to use than other models on the market.
5. The Solar Micro-Inverter is a kind of precise electronic equipment, in order to ensure long-term stable operation, users need to install it in the environment and location according to standard. And also need to avoid sunlight, avoid rain and keep the ventilation.
6. One of the main advantages of this device is its high frequency and miniature size, making it ideal when space is limited. 600W micro solar inverter is also equipped with a high-performance MOSFET fast driver, which ensures higher output efficiency and better overall performance.
7. This Micro Inverter has the highest efficiency and longer life. Improve performance and lower system costs, the power energy per day is 20% higher before shortening the cost payback, and have the feature of Automatic shift whole grid voltage Global using.

Product Paraments

Model GTB-600 GTB-700 GTB-800
Import(DC) Recommended solar panel input power (W) 200-300W*2 250-350W*2 275-400W*2
Number of DC input connections (groups) MC4*2
Maximum DC input voltage 52V
Operating voltage range 20-50V
Start-up voltage 18V
MPPT Tracking Range 22-48V
MPPT Tracking accuracy >99.5%
Maximum DC input current 12A*2
Output(AC) Rated power output 550W 650W 750W
Maximum output power 600W 700W 800W
Rated output voltage 120v 230v
Output voltage range 90-160V 190-270V
Rated AC current (at 120V) 5A 5.83A 6.6A
Rated AC current (at 230V) 2.6A 3A 3.47A
Rated output frequency 50Hz 60Hz
Output frequency range (Hz) 47.5-50.5Hz 58.9-61.9Hz
THD <5%
Power factor >0.99

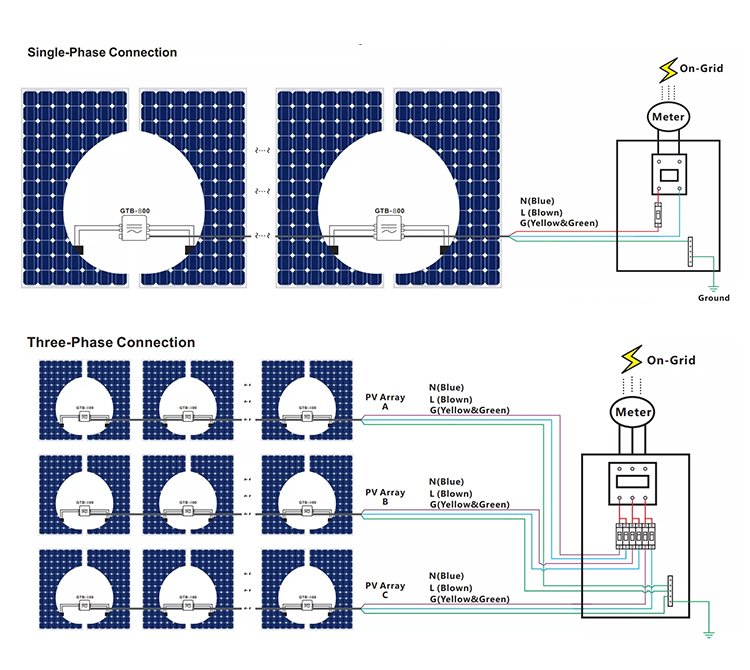

Maximum number of branch circuit connections @120VAC : 5 set / @230VAC : 10 set
Efficiency Maximum conversion efficiency 95% 94.5% 94%
CEC efficiency 92%
Night losses <80mW
Protectionfunction Over/under voltage protection Yes
Over/under frequency protection Yes
Anti-islanding protection Yes
Over current protection Yes
Overload protection Yes
Over-temperature protection Yes
Protection class IP65
Working environment temperature -40°C---65°C
Weight (KG) 2.5KG
Indicator lights quantity Working status LED light *1 + WiFi
signal led light *1
Communication connection mode WiFi/2.4G
Cooling method Natural cooling (no fan)
Working environment Indoor and outdoor
Certification standards EN61000-3-2,EN61000-3-3 EN62109-2 EN55032
EN55035EN50438

Product Paraments

gtb(1)
gtb(2)
gtb(3)

gtb (5)

gtb(6)
gtb (7)
gtb(8)
gtb(9)

gtb(10)
