Pure Sine Wave Solar Inverter PS With PWM Solar Charge Controller

Short Description:

1. Pure sine wave inverter.
2. Integrated PWM solar charge controller.

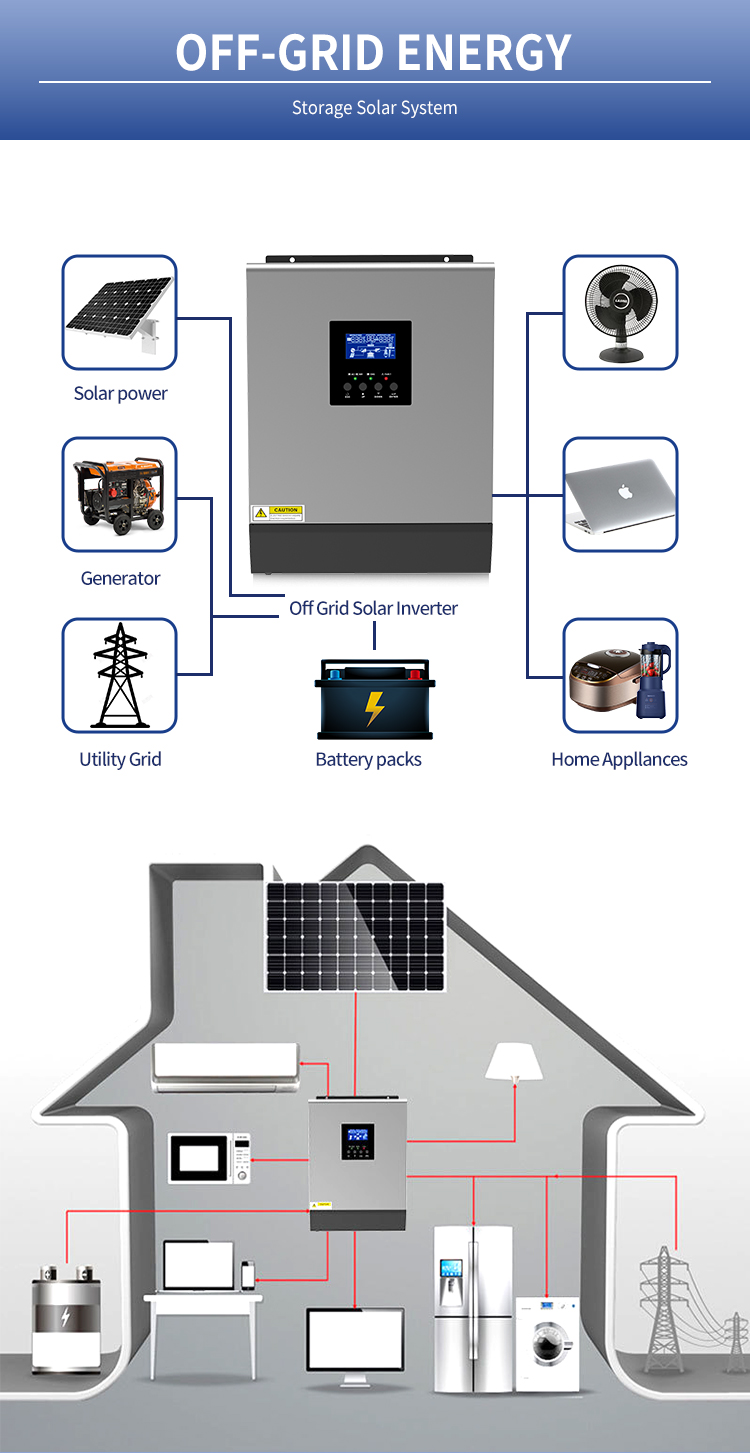

3. Compatible with mains or generator power.
4. Automatic restart when AC power is restored.
5. Parallel operation with up to 6 units at 5kVA.
6. Selectable input voltage range for domestic use.
7. Selectable charge current according to application.
8. Configurable AC/Solar input priority via LCD settings.
9. Intelligent charger design optimizes battery performance.


Product Detail

Product Tags

Feature

1. This product comes with a built-in PWM solar charge controller, making it perfect for those who are environmentally conscious and want to reduce their carbon footprint.
2. The selectable input voltage range allows for optimal usage in homes, while the selectable charging current can be customized based on the applications.
3. This product is its configurable AC/Solar input priority that can be easily set via the LCD setting.
4. The power source can be adjusted to the user's preference, and can be compatible with mains voltage or generator power. Additionally, the inverter comes equipped with an auto-restart function that kicks in when AC is recovering, ensuring uninterrupted power supply.
5. Safety is paramount with this product, which is why it comes with overload and short circuit protection. The smart battery charger design optimizes the battery's performance and lifetime, making it highly efficient.
6. This inverter is perfect for larger applications, and can even function in parallel with up to 6 units available for 5KVA.
7. Whether you're at home or out in the field, the pure sine wave inverter will keep your devices powered up and running smoothly.
8. Selectable charging current based on applications and configurable AC/Solar input priority via LCD setting.
9. Compatible to mains voltage or generator power and Auto restart while AC is recovering.
10. Overload and short circuit protection and with smart battery charger design for optimized battery performance.

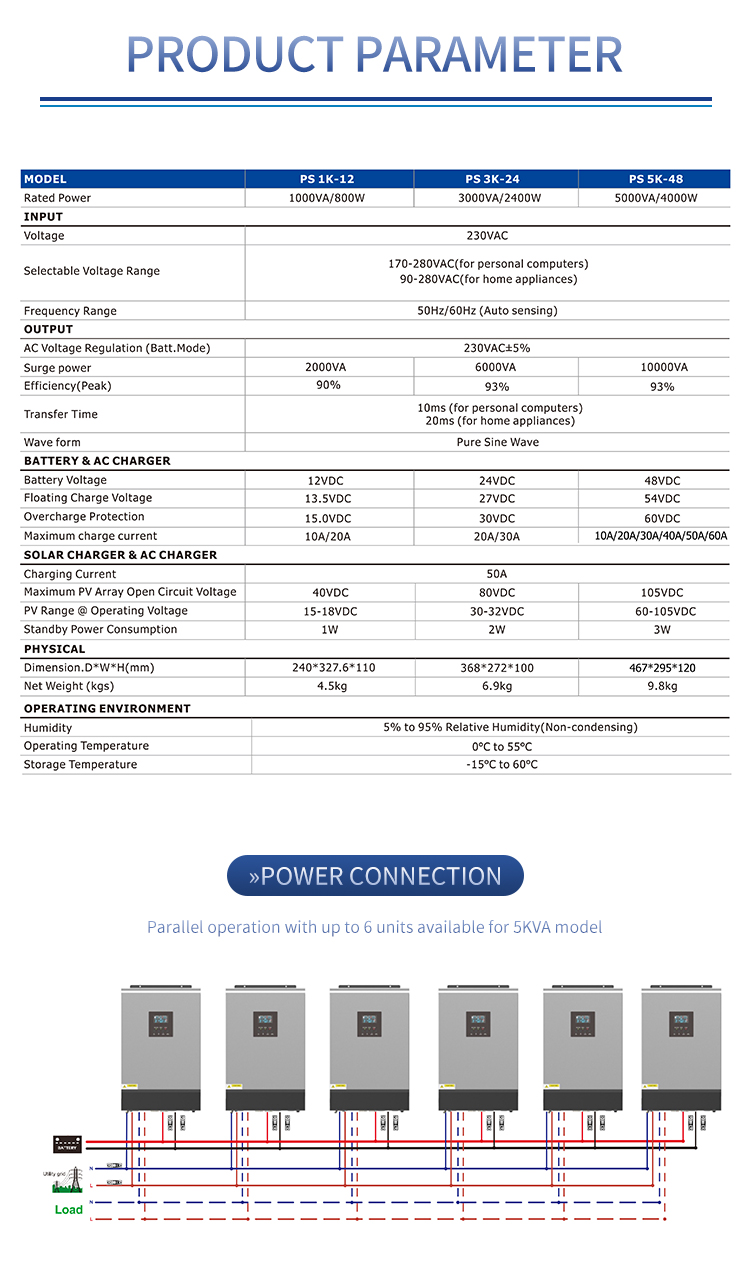

Product Paraments

MODEL lSolar PS 1K-12 lSolar PS 3K-24 PS 5K-48
Rated Power 1000VA/800W 3000VA/2400W 5000VA/4000W
INPUT
Nominal Voltage 230VAc
Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency 50,60Hz(Auto sensing)
OUTPUT
Norminal Voltage 230VAC±5%
Surge Power 2000VA 6000VA 10000VA
Efficiency(Peak) 90% 93% 93%
Transfer Time 10ms(for personal computers) 20ms(for home appliances)
WaveFORM Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 12VDC 24VDC 48VDC
Floating Charge Voltage 13.5VDC 27VDC 54VDC
Overcharge Protection 15VDC 30VDC 60VDC
Maximum charge current 10A/20A 20A/30A 10A/20A/30A/40A/50AV60A
SOLAR CHARGER & AC CHARGER
Charging Current 50A
Maximum PV Array Open Circuit Voltage 40VDC 80VDC 105VDC
PV Range @ Operating Voltage 15-18VDC 30-32VDC 60-105VDC
Standby Power Consumption 1W 2W 3W
PHYSICAL
Dimension. D*W*H(mm) 240*327.6*110 368*272*100 467*295*120
Net Weight(kg) 4.5kg 6.9kg 9.8kg
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ to 55℃
Storage Temperature -15℃ to 60℃

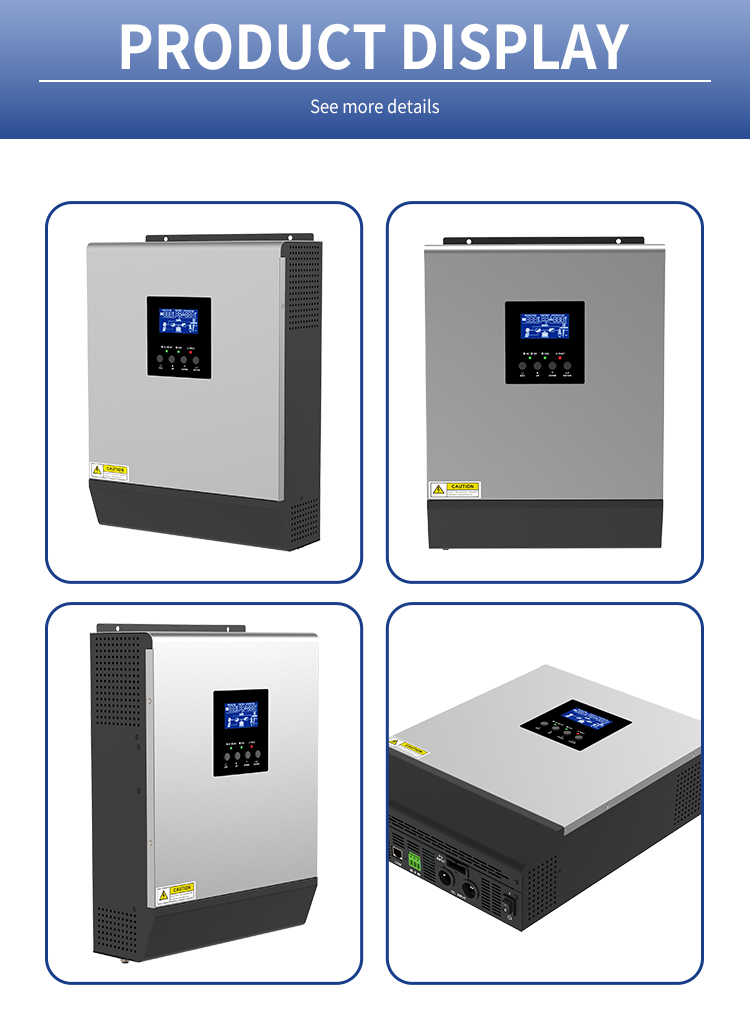

Product picture

pro1
pro2
pro3

MPS (4)

PRO
PRO2
PRO3
PRO4

PRO6
PRO7
PRO7
