PV Solar Panels 300W-500W Mono Solar Energy Panels

Short Description:

1. Uses multi-bus PERC cells to ensure that the PV panels generate more power.
2. Provides better temperature-dependent performance, which further increases power output.
3. Reduced shading effect on power generation reduces resistive losses, thereby increasing power generation.
4. Has increased resistance to mechanical stress and can withstand greater loads.
5. Backed by a 12-year product warranty and a 25-year linear power output warranty.
6. has passed a number of international certifications such as CE, IEC 61215 and IEC 61730.


Product Detail

Product Tags

Feature

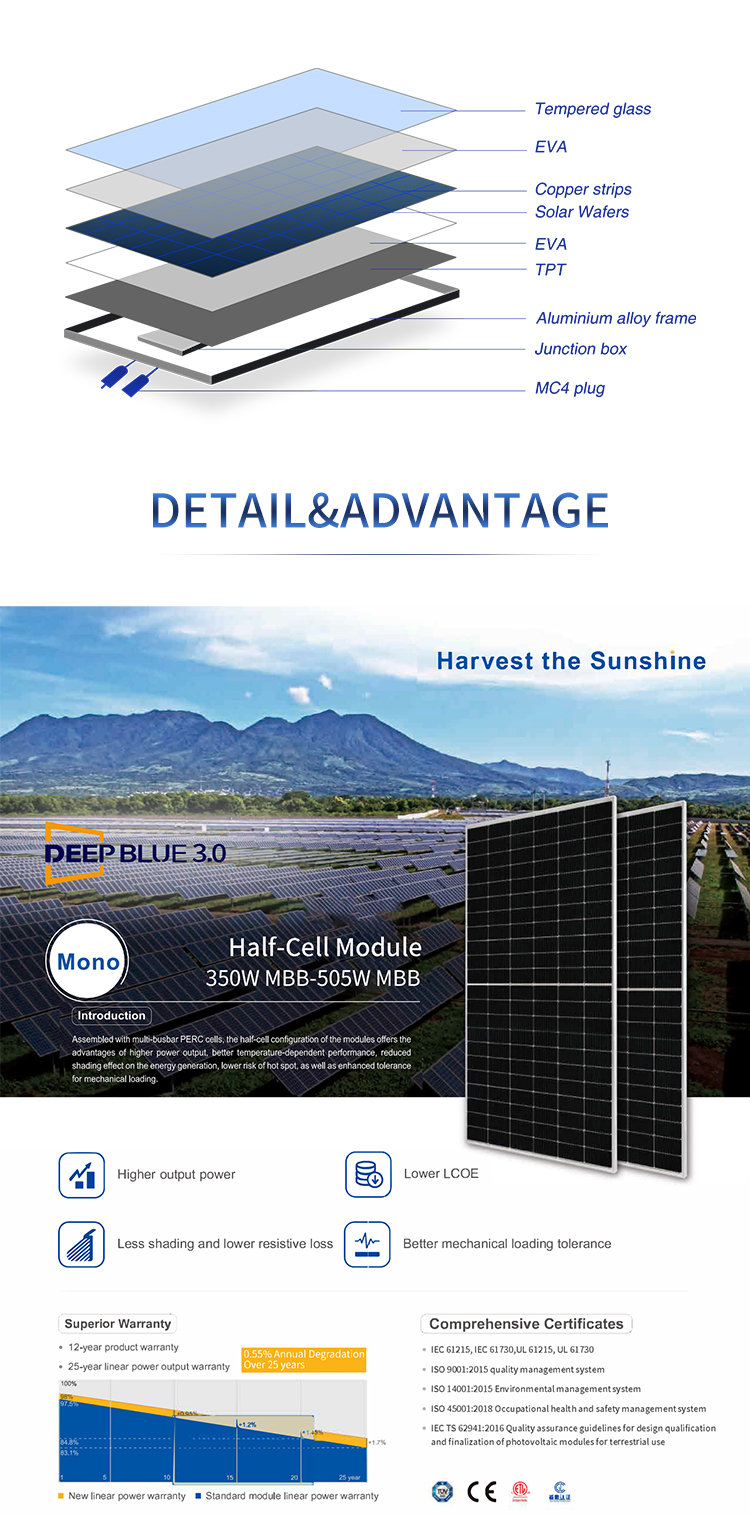

SUNRUNE brand new PV panels with multi-busbar PERC cells are revolutionizing the solar industry with their advanced half-cell configuration. Assembled with the latest technology, these panels offer several advantages over traditional solar modules.
1. The multi-busbar PERC cells ensure that the PV panels can produce more energy, allowing you to enjoy maximum efficiency and a lower levelized cost of energy (LCOE).
2. The advanced half-cell configuration of this panel also delivers better temperature-dependent performance, which further increases power output.
3. SUNRUNE PV panels are designed to reduce the shading effect on energy generation, this means that you can enjoy more consistent energy production and greater efficiency. Additionally, the reduced shading effect also results in lower resistive loss, which results in increased energy yield.
4. To ensure maximum durability, SUNRUNE PV panels come with enhanced tolerance for mechanical loading, which means that they can handle more stress and are perfect for harsh weather conditions, including high winds and extreme temperatures.
5. SUNRUNE PV panels come with a 12-year product warranty and a 25-year linear power output warranty. This ensures that you get the most out of your investment, and you can enjoy worry-free solar energy for decades to come.
6. The PV panels of SUNRUNE have passed several international certifications, such as CE, IEC 61215, IEC 61730. These certifications ensure that our panels meet rigorous international standards and are of the highest quality.

Product Paraments

TYPE YZJA60-
330
YZJA60-350 YZJA60-370 YZJA60-390 YZJA60- 400 YZJA72- 420 YZJA72- 450 YZJA72-
470
YZJA66- 500
Rated Maximum Power(Pmax) [W] 330W 350W 370W 390W 400W 420W 450W 470W 500W
Open Circuit Voltage(Voc) [V] 41.08 42.02 41.3 41.94 49.58 50.70 49.7 50.31 45.59
Maximum Power Voltage(Vmp)[V] 34.24 35.25 34.23 35.33 41.33 42.47 41.52 42.69 38.35
Short Circuit Current(Isc) [A] 10.30 10.62 11.35 11.58 10.33 10.56 11.36 11.53 13.93
Maximum Power Current(Imp)[A] 9.64 9.93 10.81 11.04 9.68 9.89 10.84 11.01 13.04
Module Efficiency [%] 19.6 20.8 19.9 21.0 19.9 20.9 20.3 21.2 21.1
Power Tolerance 0 ~ + 5W
Temperature Coefficient of lsc(a-Isc) +0.044%/°C +0.045%/°C
Temperature Coefficient of Voc(β-Voc) -0.272%/°C -0.275%/°C
Temperature Coefficient of Pmax(γ-Pmp) -0.350%/°C
STC Irradiance 1000W/m2,cell temperature 25°C, AM1.5G
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

Product picture

300W-500W-PV-Panels
300W-500W-PV-Panels
300W-500W-PV-Panels

300W-500W-PV-Panels

300W-500W-PV-Panels-51
300W-500W-PV-Panels-61
300W-500W-PV-Panels-71
300W-500W-PV-Panels-81

300W-500W-PV-Panels-9
300W-500W-PV-Panels-10

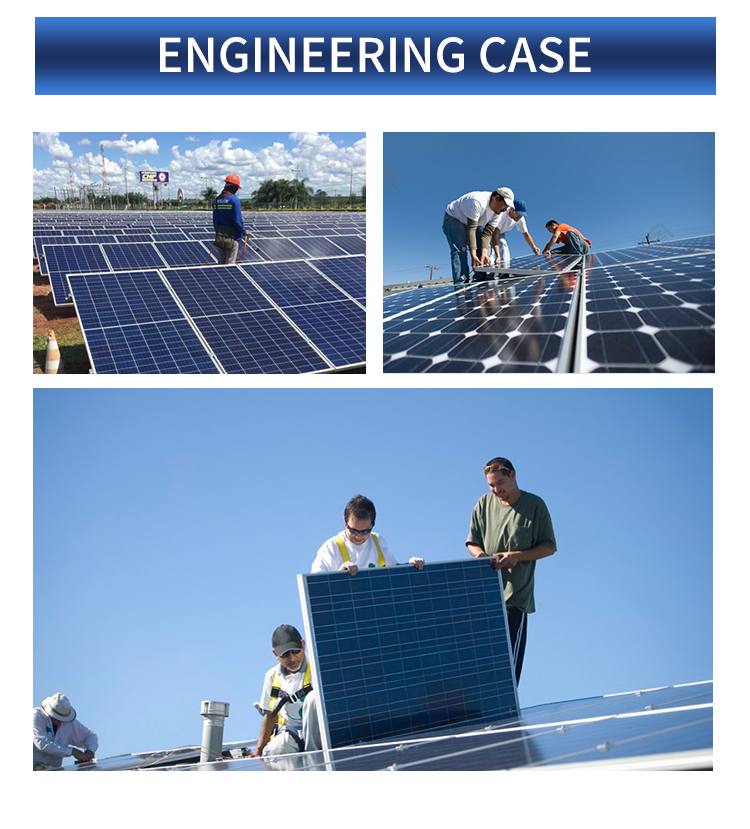

300W-500W-PV-Panels-111
