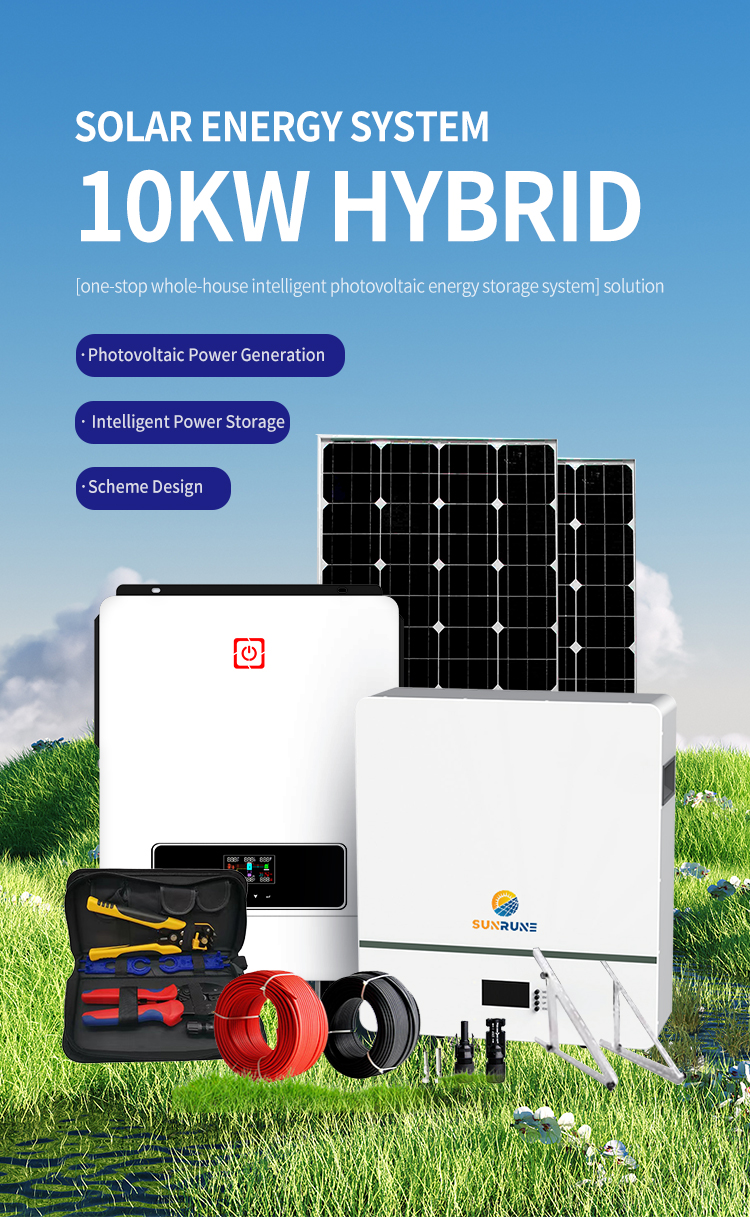

Solar Energy System 10kw Hybrid

Short Description:

1.10kW Hybrid Solar Power System
16 x 550W photovoltaic panels
10kW Wall mounted Lithium Battery,
10kW Hybrid Solar Inverter (with controller and WIFI).
2. Power can be drawn from both battery and grid.
3. The system ensures you have power when the grid is down due to a power failure.
4. Can be used in the home to power various household appliances.
5. Hybrid solar system can intelligently switch between using solar energy, battery storage and grid power.


Product Detail

Product Tags

Feature

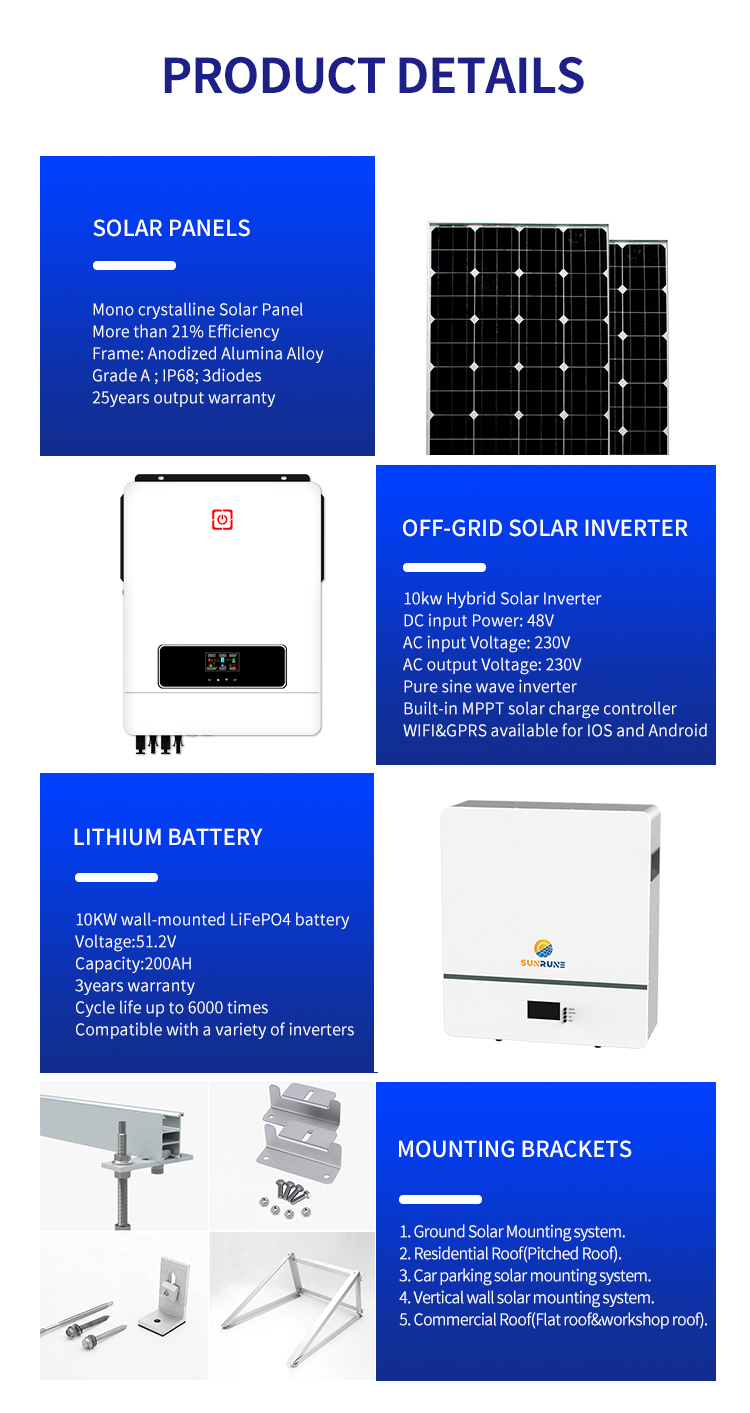

1. 10kW hybrid solar power system requires 16 pieces of 550W PV panels, 10kW wall-mounted lithium batteries, and a 10kW hybrid solar inverter with a controller and WIFI.

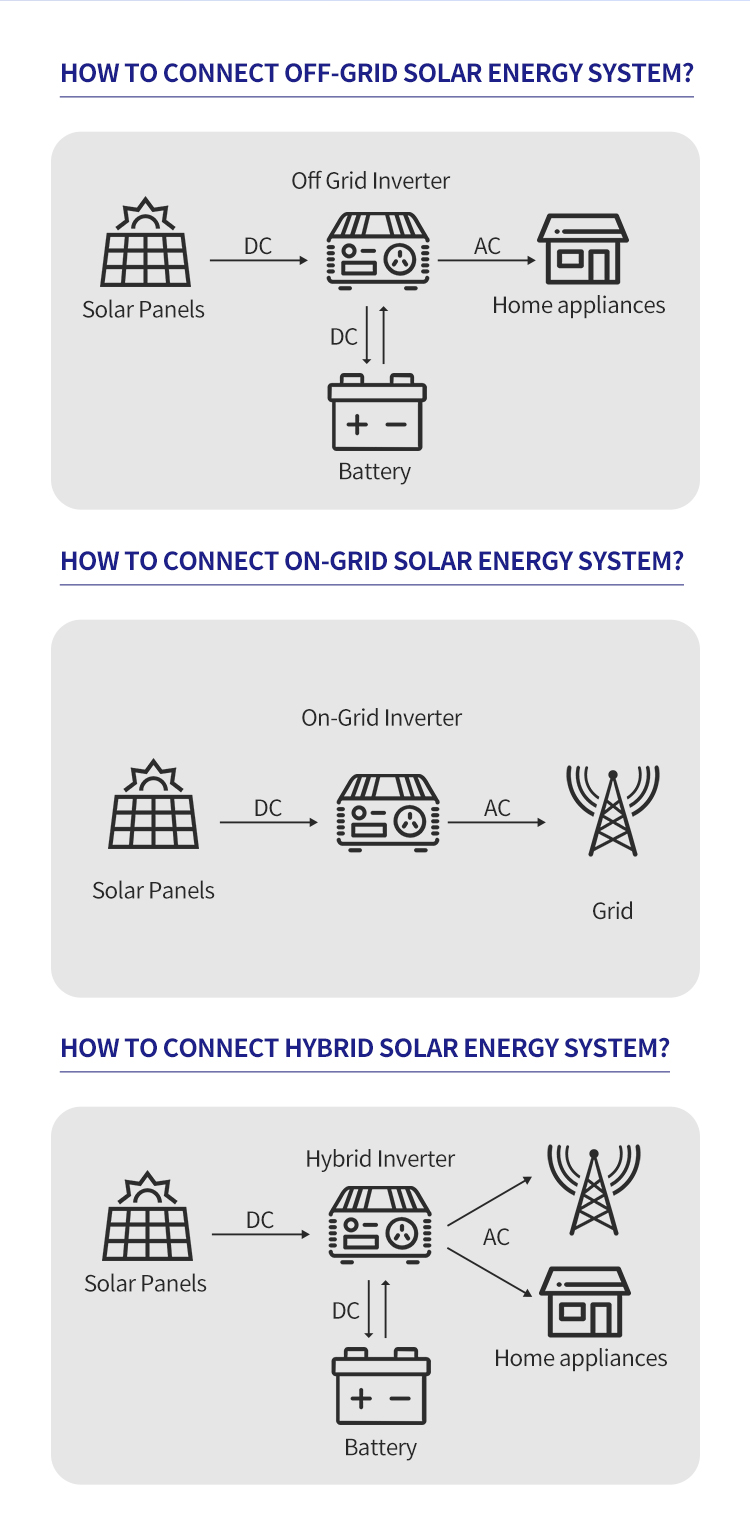

2. Hybrid solar systems combine grid-tied and off-grid systems, allowing them to draw energy from both batteries and the grid. Hybrid systems are more flexible than grid-tied systems because they can draw energy from the grid even if the batteries are depleted.
3. The solar hybrid system is a renewable energy system that uses solar photovoltaic panels to generate clean energy to power your home. A hybrid solar system intelligently switches between using solar power, battery storage, and grid power. It allows you to avoid using grid power at peak prices leading to bill savings.
4. The hybrid solar system is designed to provide power during grid outages. The main benefit of hybrid solar system is that when the grid goes down due to technical errors or harsh weather conditions, the system ensures you have electricity at your property even when the grid cannot provide power.
5. SUNRUNE 10kW hybrid grid solar power system can be used for home life, for some daily needs can be easily achieved and support various household appliances, such as rice cooker, computer, TV, kettle, washing machine, etc.
6. Our team will go through all aspects of your needs, including your energy usage patterns, location, and budget, to help n you configure a suitable solar system for residential or commercial use.
7. The hybrid solar system allows you to lock in low energy rates for years to come and shields you from future rate hikes. It also allows you to manage the time of use electricity rates for maximum solar savings on electric bills.

Product Paraments

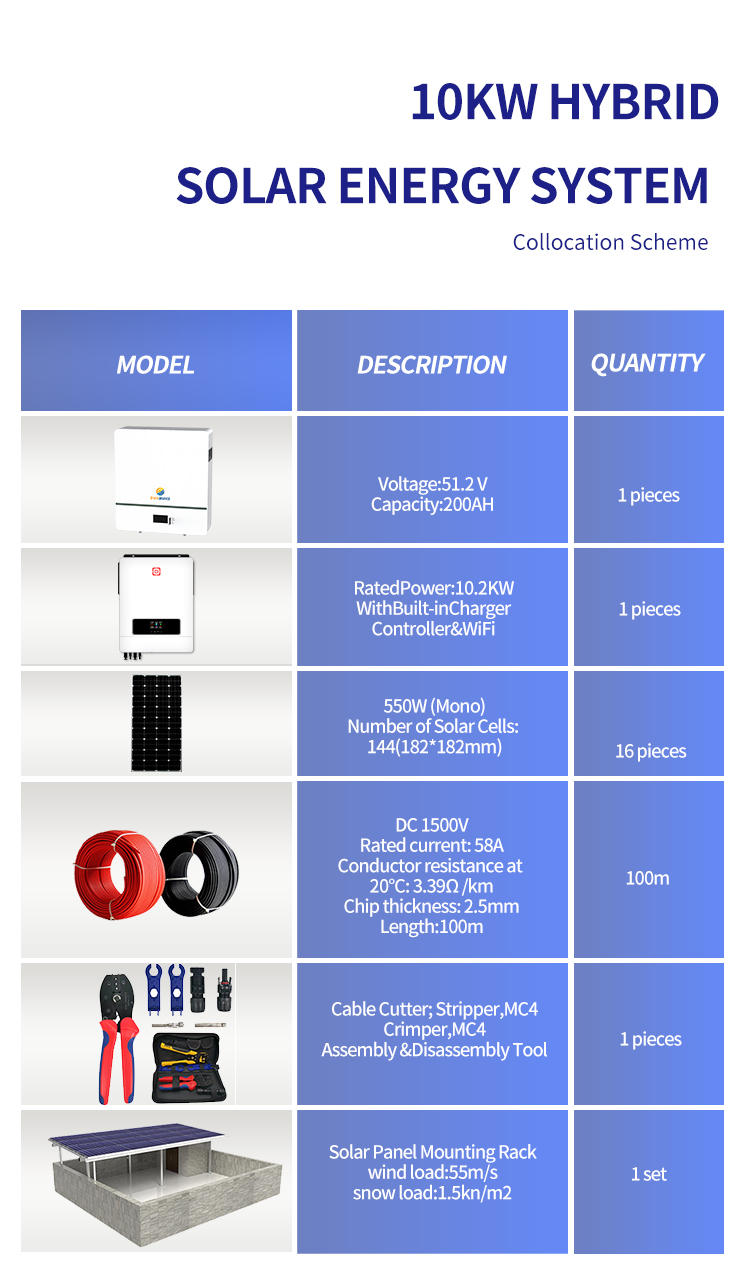

10KW Hybrid Solar Energy System Collocation Scheme
Item Model warranty Description Package Details Quantity

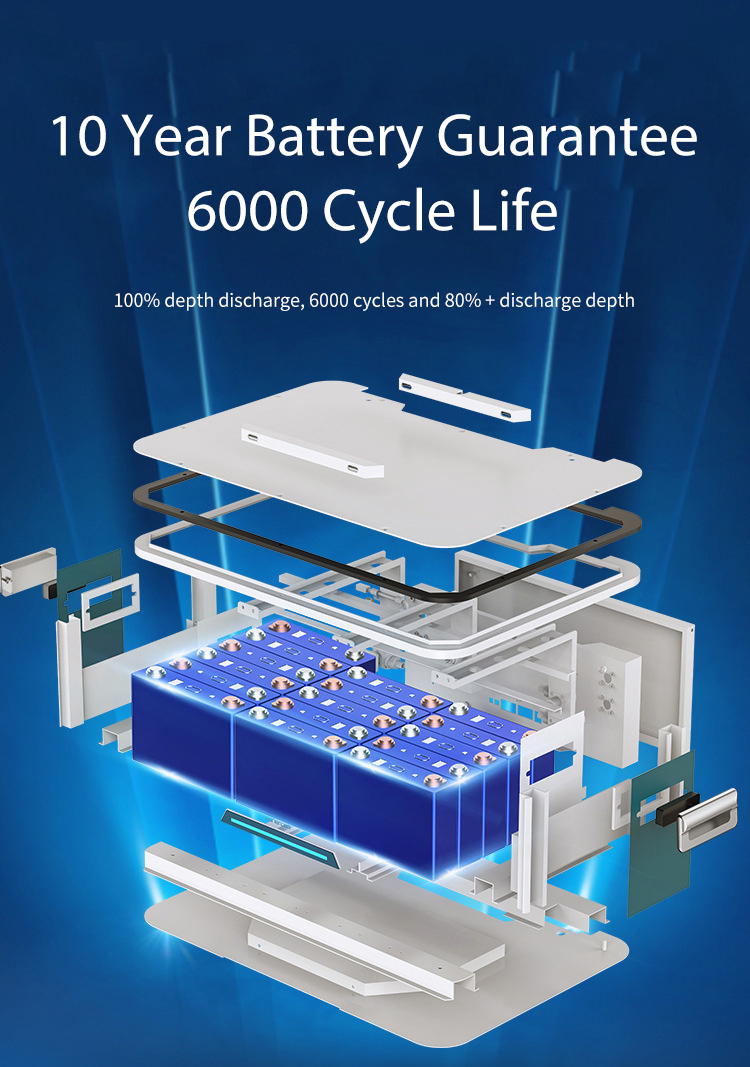

1 10KW Wall-Mounted Lithium battery 3years Voltage:51.2 V
Capacity:200AH
1080*740*285±3mm/105kg 1 piece
2 Hybrid Pure Sine Wave10KW Inverter 3years Rated Power: 10.2KW;
With Built-in Charger Controller & WiFi
537*390*130mm 14.5kg 1 piece
3 Solar Panels 25 years 550W (Mono)
Number of Solar Cells: 144(182*182mm)
2279*1134*35mm 28kg 16 pieces
4 Cables / DC 1500V
Rated current: 58A
Conductor resistance at 20°C: 3.39Ω /km
Chip thickness: 6mm
Length:100m
/ 100m
5 Tools / Cable Cutter; Stripper,MC4
Crimper, MC4 Assembly &Disassembly Tool
/ 1 piece

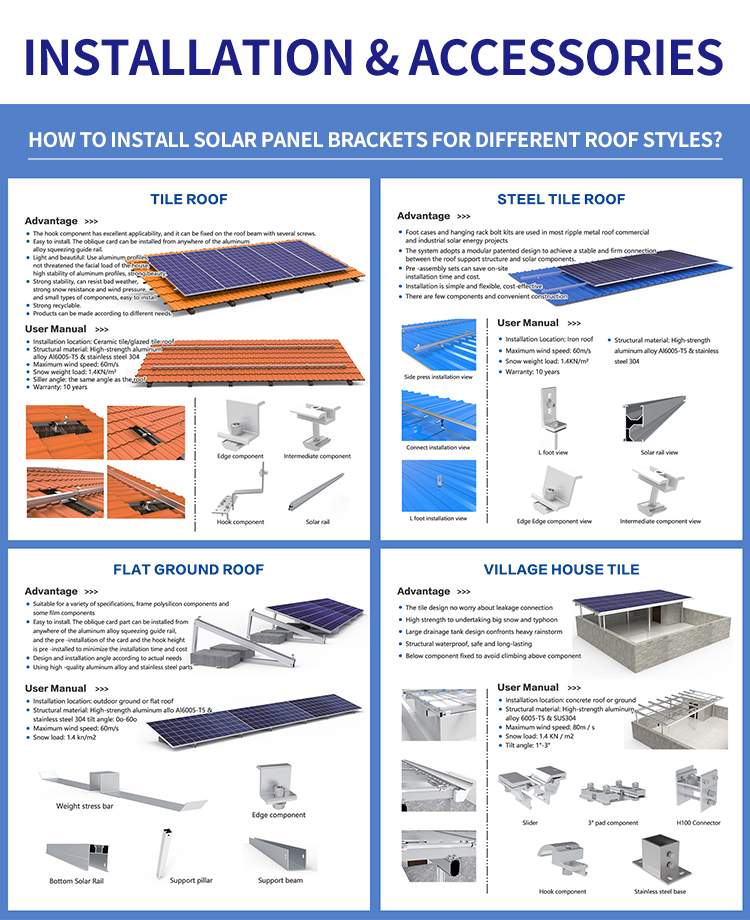

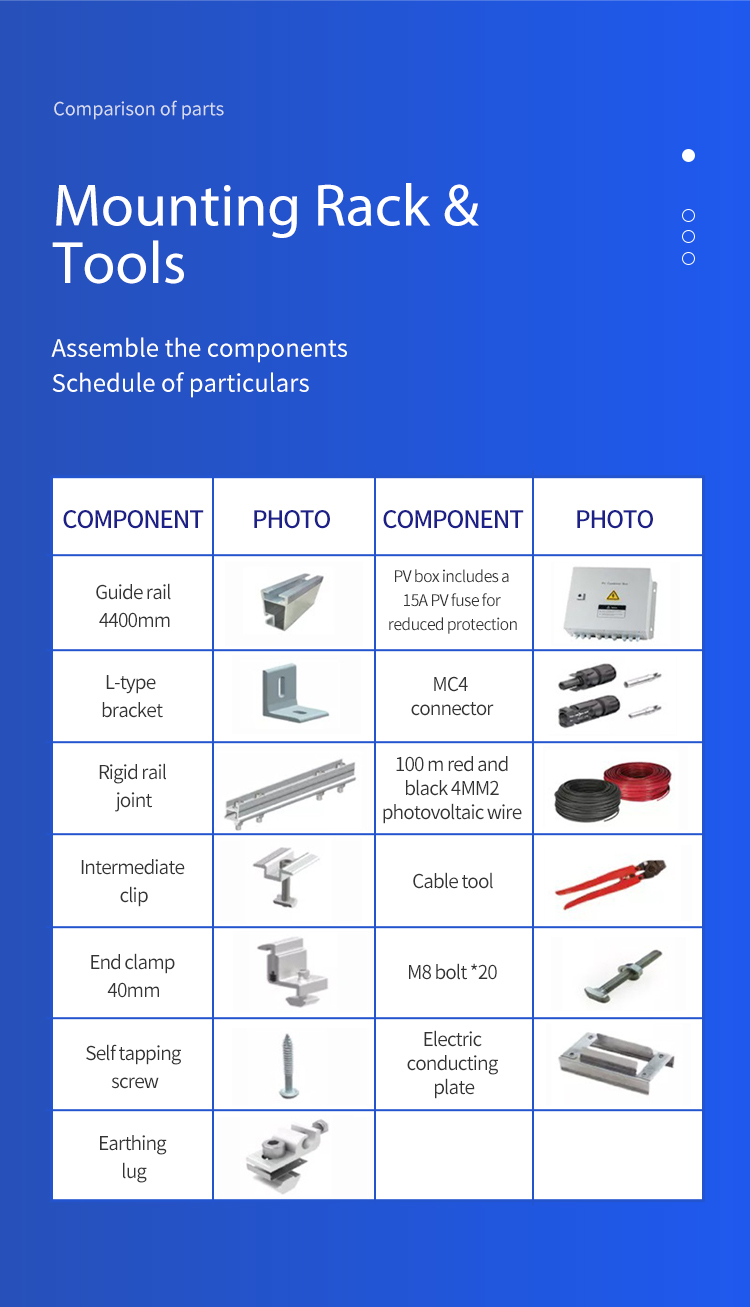

6 Mounting System / Solar Panel Mounting Rack
wind load:55m/s
snow load:1.5kn/m²
These are the basic configurations,if you have more detailed installation requirements, please contact our sales representative. 1 set
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements.

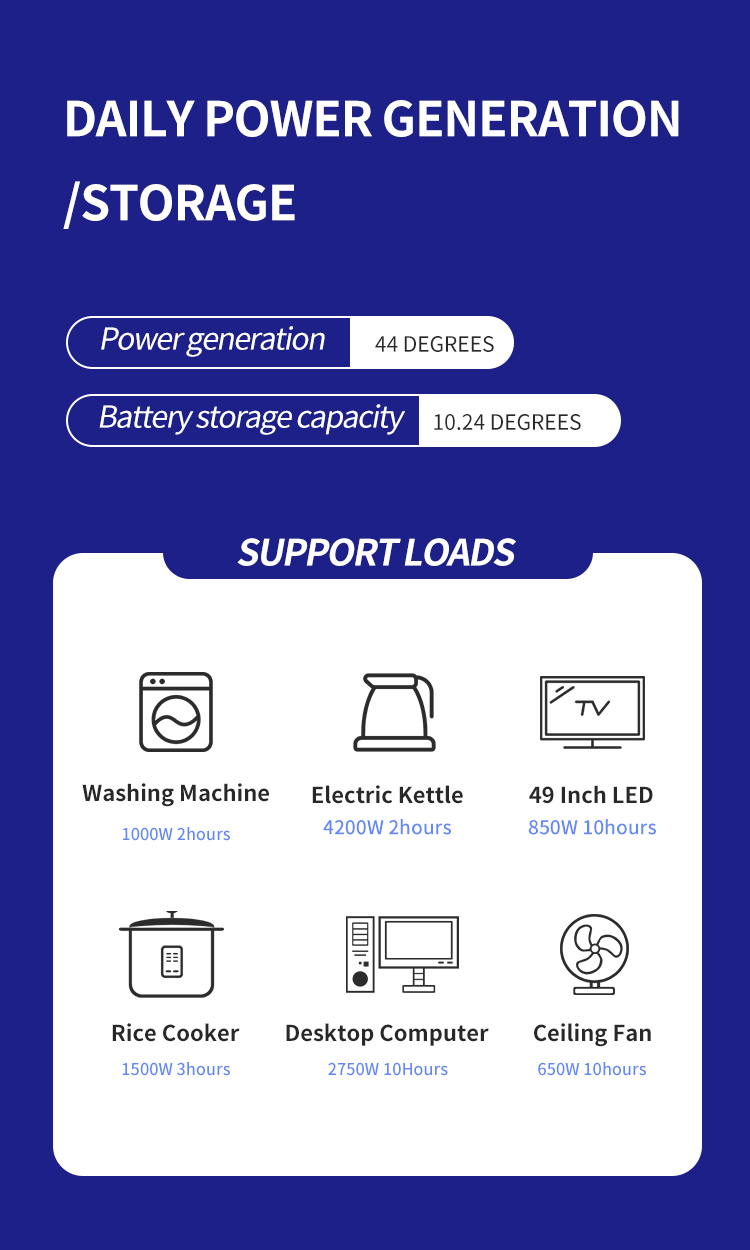

Daily power generation/storage Support Loads
Power generation 44 degrees Electric Kettle 4200W 2hours 49 Inch LED TV 850W 10hours
Battery storage capacity 10.24 degrees Ceiling Fan 650W 10hours Deskcenter Computer 2750W 10hours
Rice Cooker 1500W 3hours Washing Machine 1000W 2hours
