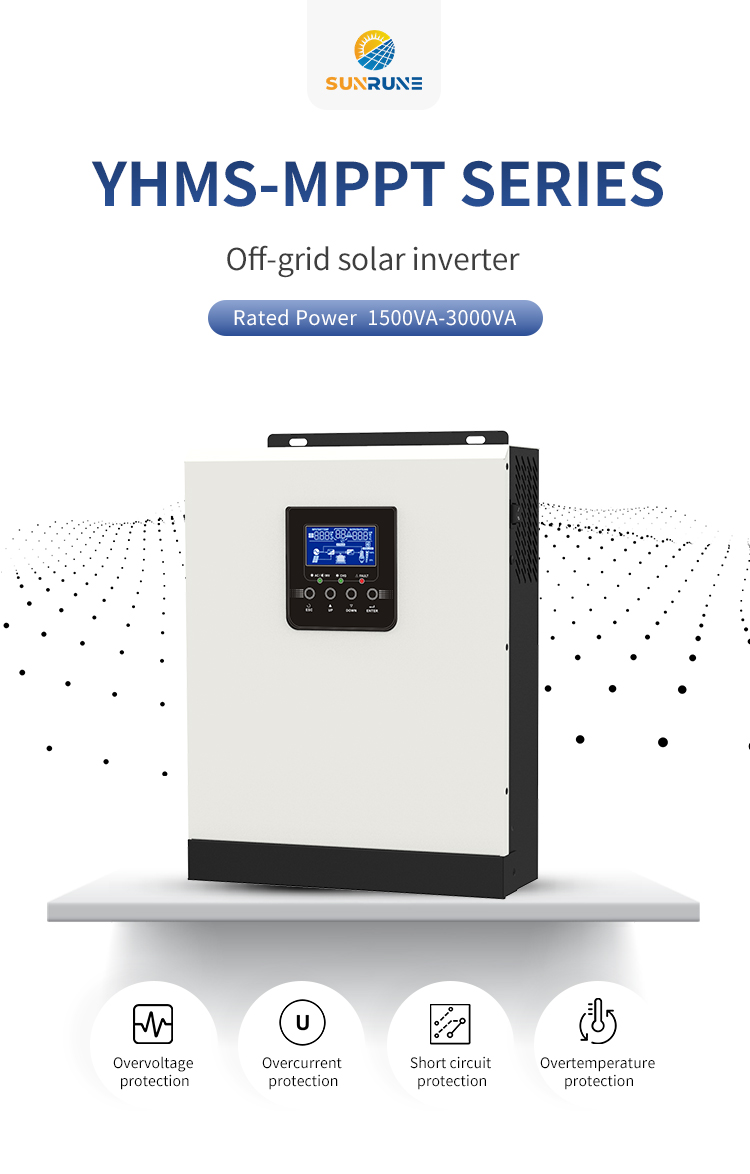

Solar Power Generation System Off-Grid Photovoltaic Storage inverter

Short Description:

HMS type pure sine wave inverter

Built-in MPPT solar charge controller

Selectable input voltage range for household appliances and PCs

Selectable charging current according to application

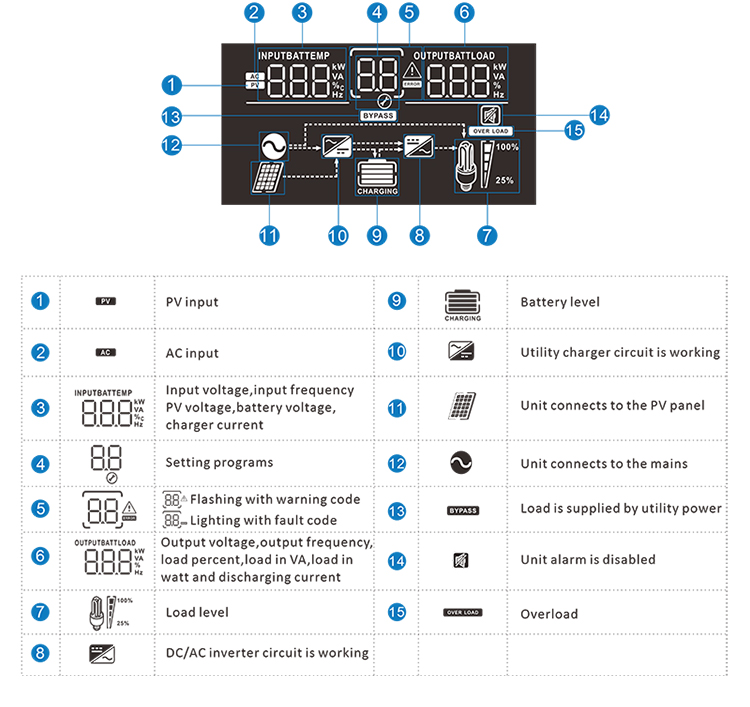

Configurable AC or solar input priority via LCD settings

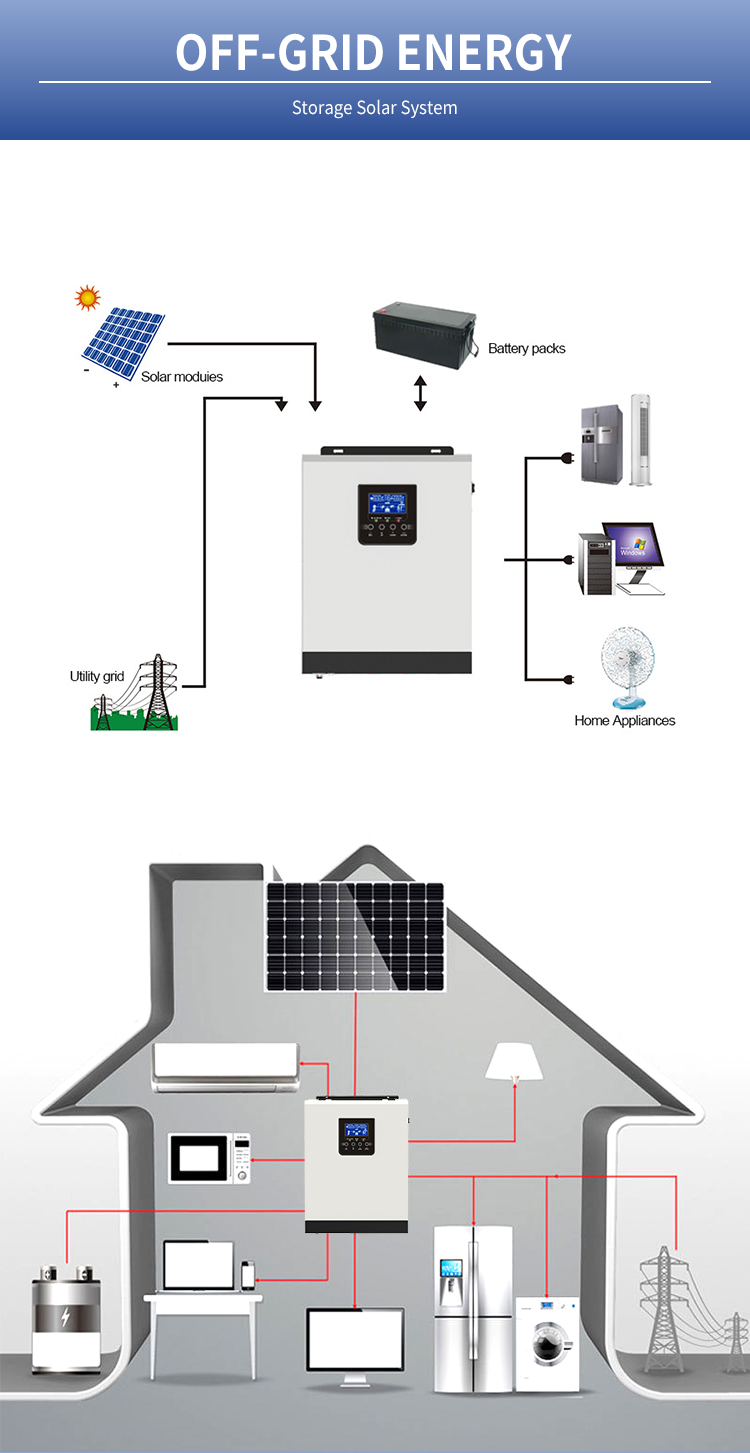

Compatible with utility and generator power

Overload and short circuit protection, automatic restart when AC power is restored

Smart battery charger design optimizes battery performance

Send email to us

Subscribe us

Product Detail

Product Tags

Parameter

MODEL	HMS 1.5K-12	HMS 1.5K-24	HMS 3K-24	HMS 3K-48
Rated Power	1500VA/1200W	1500VA/1200W	3000VA/2400W	3000VA/3000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	3000VA		6000VA
Efficiency(Peak)	90%-93%		93%
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Wave form	Pure Sine Wave
BATTERY
Battery Voltage	12VDC	24VDC	24VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	62VDC
SOLAR CHARGER
Maximum PV Array Power	500W	1000W	1000W	2000W
Maximum PV Array Open Circuit Voltage	102VDC	102VDC	102VDC	102VDC
MPPT Range @ Operating Voltage	15-80VDC	30-80VDC	30-80VDC	55-80VDC
Maximum Solar Charging Current	40A	40A	40A	40A
Maximum AC Charging Current	10A/20A	20A/30A	20A or 30A	15A
Maximum Charging Current (Utility Charging+Solar Charging)	60A	70A	70A	55A
Standby Power Consumption	2W
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	305272100mm
Net Weight (kgs)	5.2kg
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C to 55℃
Storage Temperature	-15℃ to 60℃

Features

1.Introducing SUNRUNE HMS Off-Grid Solar Inverter - the ultimate solution for your energy needs. This advanced inverter is designed to provide uninterrupted power with its excellent features.
2.This HMS model off-grid solar inverter is equipped with a pure sine wave inverter that ensures the generation of high-quality power for a wide range of appliances and devices. This inverter can easily handle your home appliances and computers so that you don't have to worry about compatibility issues.
3.This inverter has a built-in MPPT solar charge controller so you can utilize solar energy directly and easily. The inverter intelligently optimizes the output of the solar panels and thus effectively charges the battery.
4.This HMS Model off-grid solar inverters provide selectable input voltage ranges. This flexibility allows you to use it with a variety of home appliances and PCs without any adverse effects. In addition, the inverter allows you to adjust the charging current according to your specific requirements. Whether you need fast charging or trickle charging, this inverter has you covered.
5.This inverter takes customization to a new level by providing configurable priority for AC or solar input. This means you can choose whether to prioritize AC or solar input based on your specific needs and availability.
6.SUNRUNE HMS Model Off-Grid Solar Inverter is compatible with utility and generator power. This ensures that you have a backup power source when your solar panels cannot generate enough electricity. The inverter seamlessly switches between these power sources, guaranteeing an uninterrupted power supply.
