Solar Power Inverter 32kw 48kw off Grid Tie Combined With Mppt Charge Controller

Short Description:

Pure sine wave output

Low DC voltage, saving system cost

Integrated PWM or MPPT charge controller

Adjustable AC charging current 0-45A

The setting of different operating modes based on variable usage requirements

Various communication ports and remote monitoring RS485/APP (WIFI/GPRS) (optional)

Wide LCD screen, shows symbol data clearly and accurately100% unbalanced load design, 3 times peak power.

Send email to us

Subscribe us

Product Detail

Product Tags

Parameter

Model: HDSX		YHDSX32	YHDSX40	YHDSX48	YHDSX64	YHDSX80
Rated Power		40KVA/32KW	50KVA/40KW	60KVA/48KW	80KVA/64KW	100KVA/80KW
Peak Power(20ms)		96KVA	120KVA	144KVA	192KVA	240KVA
Start Motor		15HP	20HP	25HP	30HP	40HP
Battery Voltage		192VDC		384VDC
Built-in solar controller charging current (Optional)		MPPT:50A/100A(192V&384V System				MPPT:50A/100A
Size(LWHmm)		7205751275				8757201380
Package Size(LWHmm)		7856401400				9808251560
N.W. (kg)		240	260	290	308	512
G.W. (kg)(Wooden Packing)		273	293	323	341	552
nstallation Method		Tower
Model: HDSX		YHDSX96	YHDSX100	YHDSX120	YHDSX150	YHDSX160
Rated Power		120KVA/96KW	125KVA/100KW	150KVA/120KW	190KVA/150KW	200KVA/160KW
Peak Power(20ms)		288KVA	300KVA	360KVA	450KVA	480KVA
Start Motor		50HP	50HP	60HP	80HP	80HP
Battery Voltage		384VDC
Built-in solar controller charging current (Optional)		MPPT:50A/100A			MPPT:100A
Size(LWHmm)		8757201380			11239001605
Package Size(LWHmm)		9808251560			11859601750
N.W. (kg)		542	552	612	705	755
G.W. (kg)(Wooden Packing)		582	592	652	755	805
Installation Method		Tower
Input	DC Input Voltage Range	10.5-15VDC(Single battery voltage)
	AC Input Voltage Range	380Vac/400Vac(300Vac-475Vac)(customized 190Vac/200Vac/415Vac)
	AC Input Frequency Range	45Hz-55Hz(50Hz)/55Hz-65Hz(60Hz)
	Max AC charging current	0~45A(Depending on the model)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
	Phase	3/N/PE
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	380Vac/400Vac±2%(customized 190Vac/200Vac)
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Output waveform distortion	Linear load≤3%
	Eficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	Conforming to AC input
	Output Frequency(AC Mode)	Conforming to AC input
	No load loss(Battery Mode)	s2.5% rated power(4KVA-30KVA models);≤1% rated power(40KVA-200KVA models)
	No load loss(AC Mode)	≤2% rated power( charger does not work in AC mode)
	No load loss(Energy saving Mode)	≤10W
	Phase	3/N/PE
Protection	Battery undervoltage alarm	11V(Single battery voltage)
	Battery undervoltage protection	10.5V(Single battery voltage)
	Battery overvoltage alarm	15V(Single battery voltage)
	Battery overvoltage protection	17V(Single battery voltage)
	Battery overvoltage recovery voltage	14.5V(Single battery voltage)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90℃(Shut down output)
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	MPPT
	Charging current	MPPT:10A/20A/30A/40A/50A/60A/80A/100A(48V System); 50A/100A(96V/192V/384V System)
	PV Input Voltage Range	MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System);480V-640V(384V System)
	Max PV Input Voltage(Voc)	MPPT:150V(48V System);300V(96V System);450V(192V System);800V(384V System)
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms

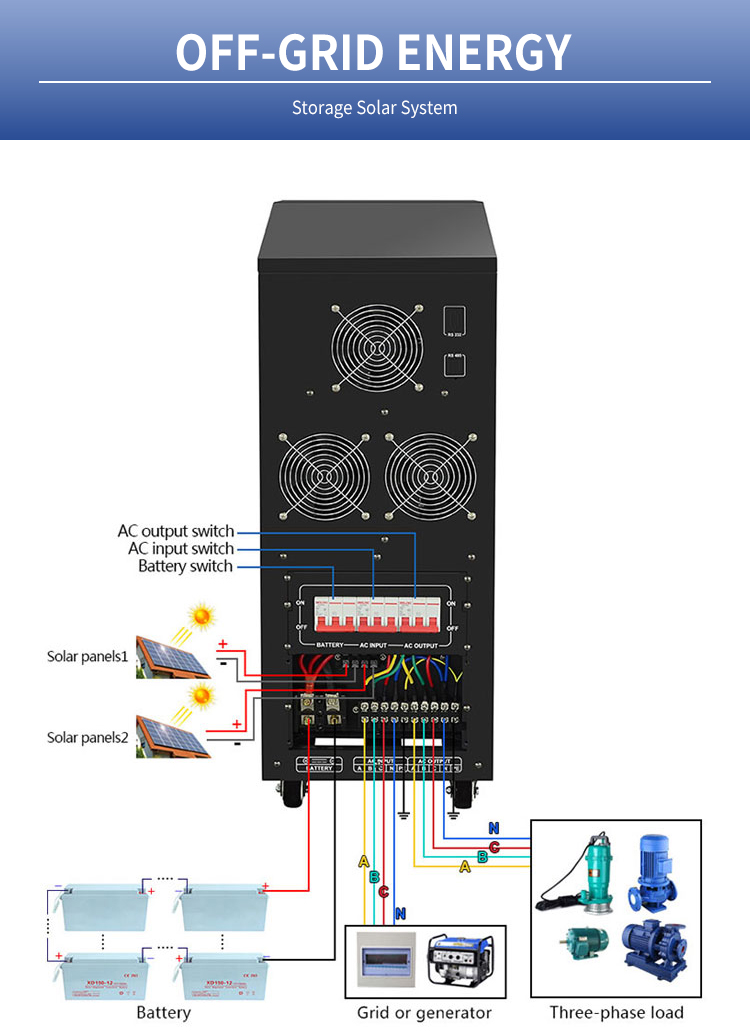

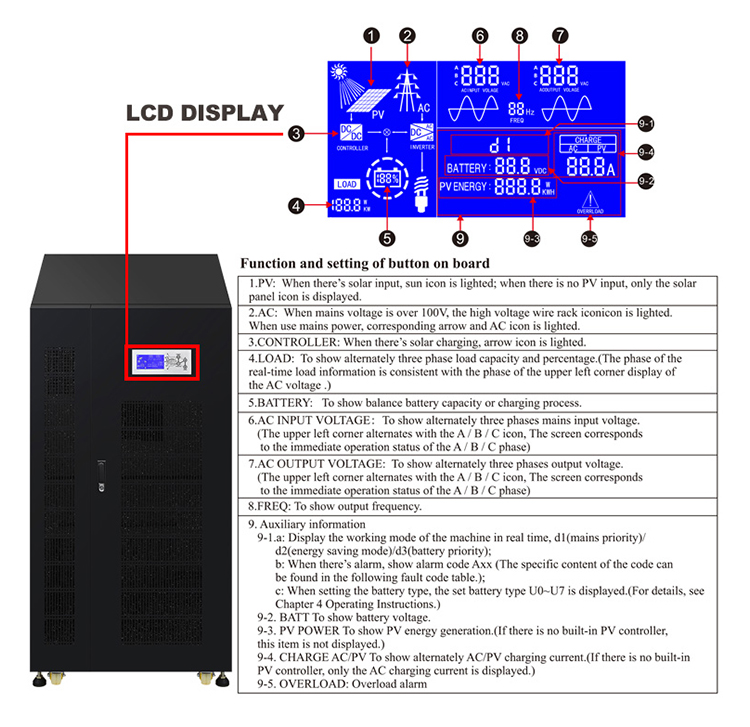

Display		LCD
Communication(Optional)		RS485/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Elevation	2000m(More than derating)
	Humidity	0%~95%(No condensation)

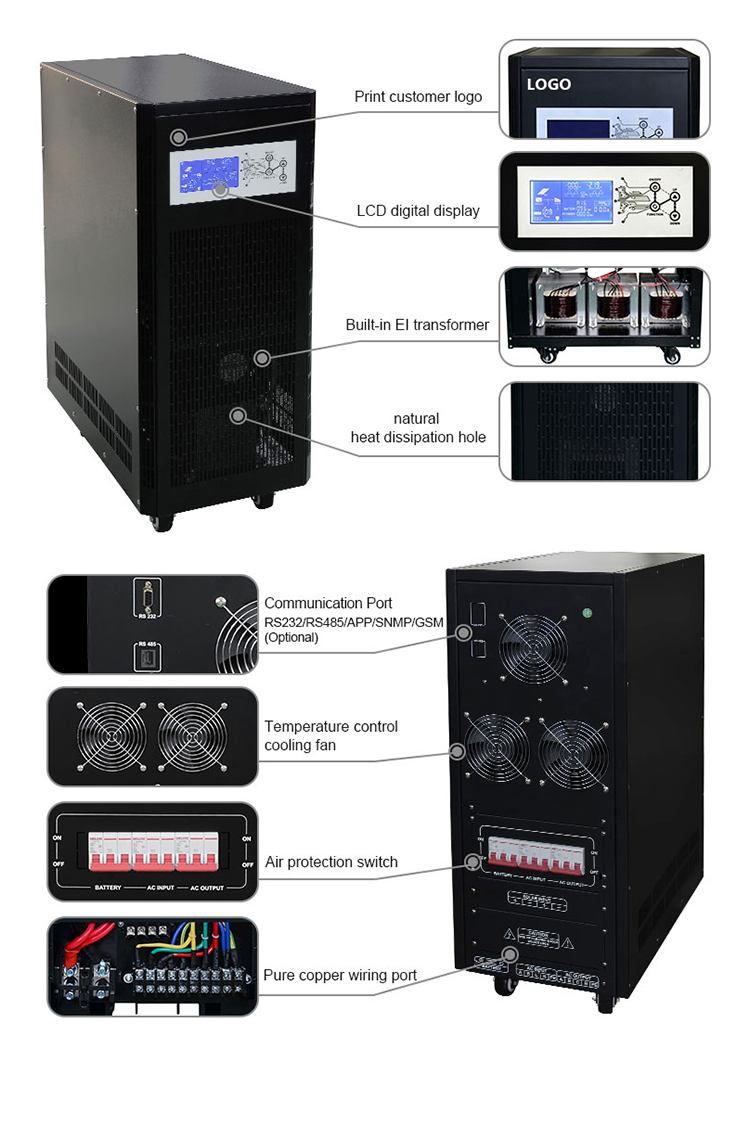

Features

1.Pure sine wave output: This feature ensures that the power produced by the system is of high quality, free from any fluctuations or distortion, making it suitable for sensitive electronic equipment.
2.Low DC voltage to reduce system cost: The system operates at a low DC voltage, reducing the need for expensive connected equipment and making it more cost effective compared to higher DC voltage systems.
3.Built-in PWM or MPPT charge controller: The system includes either a Pulse Width Modulation (PWM) or Maximum Power Point Tracking (MPPT) charge controller that optimises the charging efficiency and performance of the connected solar panels.
4.Adjustable AC charge current 0-45A: The system provides a flexible and adjustable AC charge current, allowing users to customise the charging process according to their needs and requirements.
5.Setting of different operating modes based on variable usage requirements: The system offers multiple operating modes that can be selected based on the user's varying usage requirements. This allows greater control and optimisation of system performance.
6.Various communication ports and remote monitoring RS485/APP (WIFI/GPRS) (optional): The system is equipped with various communication ports, providing connectivity options such as RS485, WIFI, and GPRS. This allows for remote monitoring and control of the system, enhancing convenience and accessibility.
7.100% unbalanced load design, 3 times peak power: The system is designed to handle unbalanced loads effectively, ensuring proper power distribution even when there is a significant difference in load requirements,
