Model No |
YZ4KTL |
YZ5KTL |
YZ6KTL |
YZ8KTL |
YZ10KTLM |
|
Input(DC) |
|||||
|
Max DC power(W） |
6000 |
7500 |
9000 |
12000 |
15000 |
|
Max DC voltage (Vdc) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Min working voltage (Vdc) |
250 |
250 |
250 |
250 |
250 |
|
MPPT voltage range (Vdc) |
250-850 |
250-850 |
250-850 |
250-850 |
250-850 |
|
Max input current / per string (A) |
13/13 |
13/13 |
13/13 |
13/13 |
13/13 |
|
Number of MPPT trackers |
2 |
2 |
2 |
2 |
2 |
|
Strings per MPPT tacker |
1 |
1 |
1 |
1 |
1 |
|
AC Side /Output Parameters |
|||||
|
AC nominal power (W) |
4000 |
5000 |
6000 |
8000 |
10000 |
|
Max AC apparent power (VA) |
5000 |
6000 |
7000 |
8800 |
11000 |
|
Max output current (A) |
8 |
10 |
12 |
15 |
17 |
|
Nominal AC output |
50/60 Hz,400 Vac |
||||
|
AC output range |
45/55 Hz; 280 ~ 490 Vac (Adj) |
||||
|
Power factor |
0.8leading..0.8laging |
||||
|
Harmonics |
<5% |
||||
|
Grid type |
3 W/N/PE |
||||
|
Efficiency |
|||||
|
Max efficiency |
98.00% |
98.20% |
98.20% |
98.30% |
98.40% |
|
Euro eficiency |
97.50% |
97.70% |
97.70% |
97.80% |
97.90% |
|
MPPT effidiency |
99.90% |
99.90% |
99.90% |
99.90% |
99.90% |
|
Safety and Protection |
|||||
|
DC reverse-polarity protection |
yes |
||||
|
DC breaker |
yes |
||||
|
DC/AC SPD |
yes |
||||
|
Leakage current protection |
yes |
||||
|
Insulation Impedance Detection |
yes |
||||
|
Residual Current protection |
yes |
||||
|
General Parameters |
|||||
|
Dimension (W/H/D)(mm) |
480*400*180 |
||||
|
Weight (kg) |
22 |
||||
|
Operating temperature range (ºC) |
-25 ~ +60 |
||||
|
Degree of protection |
IP65 |
||||
|
Cooling concept |
Natural convection |
||||
|
Topology |
Transformerless |
||||
|
Display |
LCD |
||||
|
Humidity |
0-95%, no condensation |
||||
|
Communication |
Standard WiFi; GPRS/LAN(optional) |
||||
|
Warranty |
Standard 5 years; 7/10 years optional |
||||
|
Certificates and Approvals |
|||||
Feature
The 3-phase unbalanced output inverter is designed to provide reliable and efficient power conversion, with limited power output to ensure safe operation. It also offers the flexibility of application-specific charging current selection, allowing users to tailor the charging process to their specific needs.
The installation process for this inverter is designed to be quick and easy, requiring only one person to set it up. In addition, any faults or malfunctions can be easily identified and diagnosed via the convenient LCD display. In addition, the inverter supports the use of smart meters, enabling users to track and monitor their energy consumption.
This inverter has been rigorously tested and certified to meet international quality standards such as TUV and BVDekra. It also has a P65 waterproof rating, making it suitable for use in a variety of weather conditions. With its robust construction and high-quality components, this inverter is built to last and can be relied upon to provide over 10 years of performance.

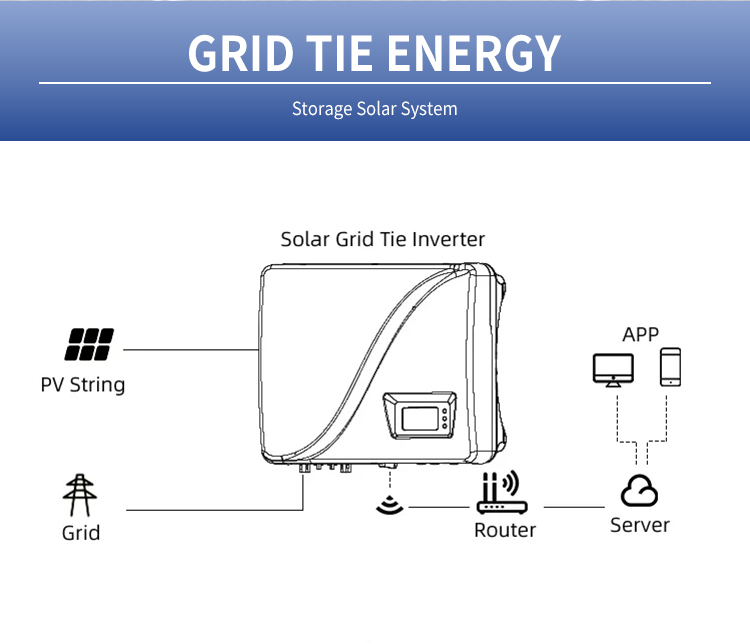

The inverter has a large LCD display that provides clear and comprehensive information about its operation and performance. For enhanced connectivity and data monitoring, optional WiFi/GPRS/Lan communication features can be selected, allowing users to remotely access and control the inverter.
The AC/Solar input priority configuration, accessible via the LCD settings, gives users the flexibility to determine the power source preference for their system. This feature enables efficient use of solar energy and ensures smooth operation even when grid power is unstable or unavailable.
The inverter is designed to be compatible with both grid and generator power sources. It incorporates built-in overload and short-circuit protection mechanisms to protect connected equipment and the inverter itself from potential electrical hazards. This versatility provides convenience and peace of mind, as the inverter can seamlessly switch between power sources while maintaining robust protection.

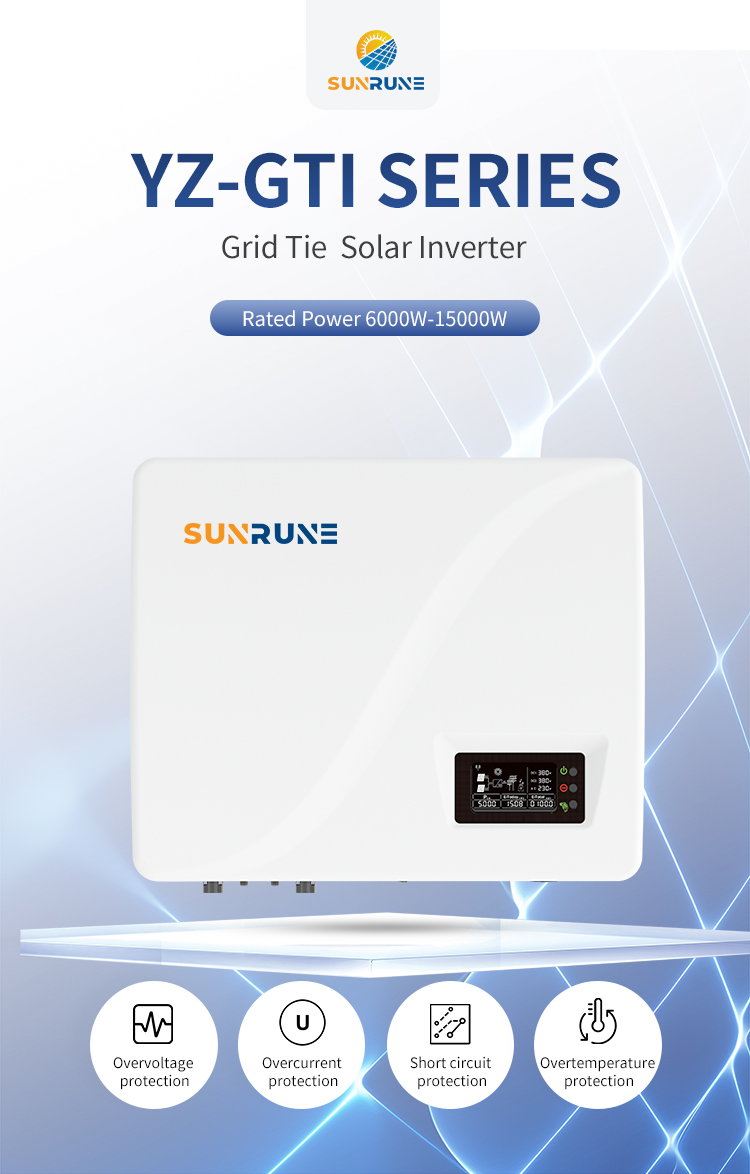

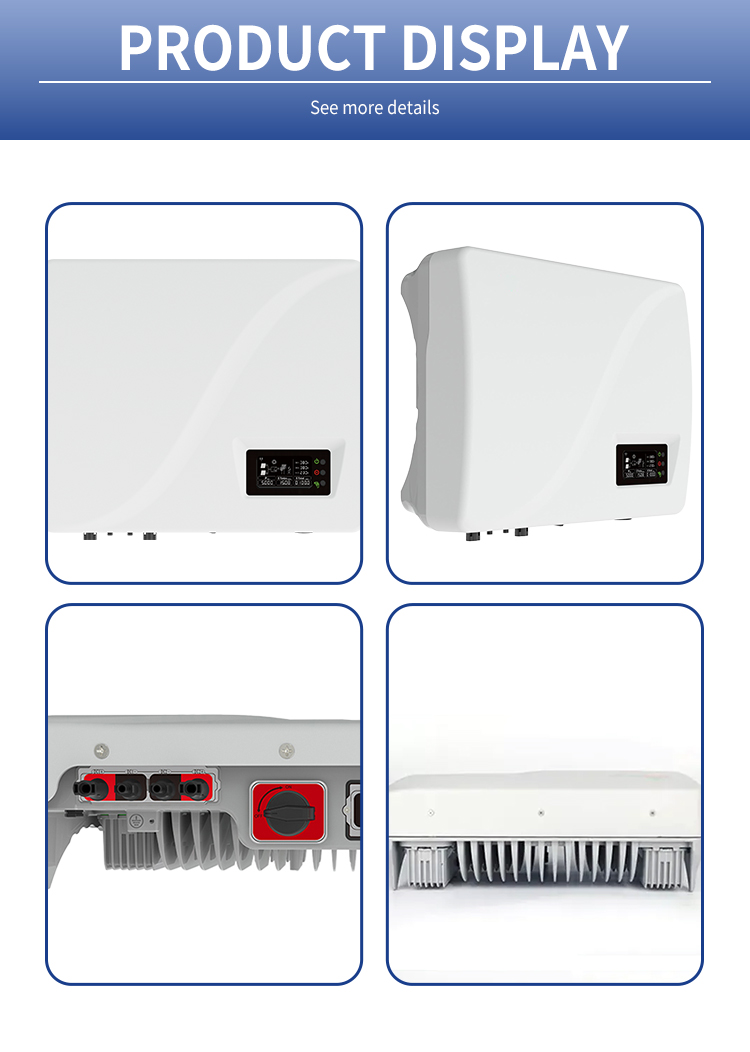

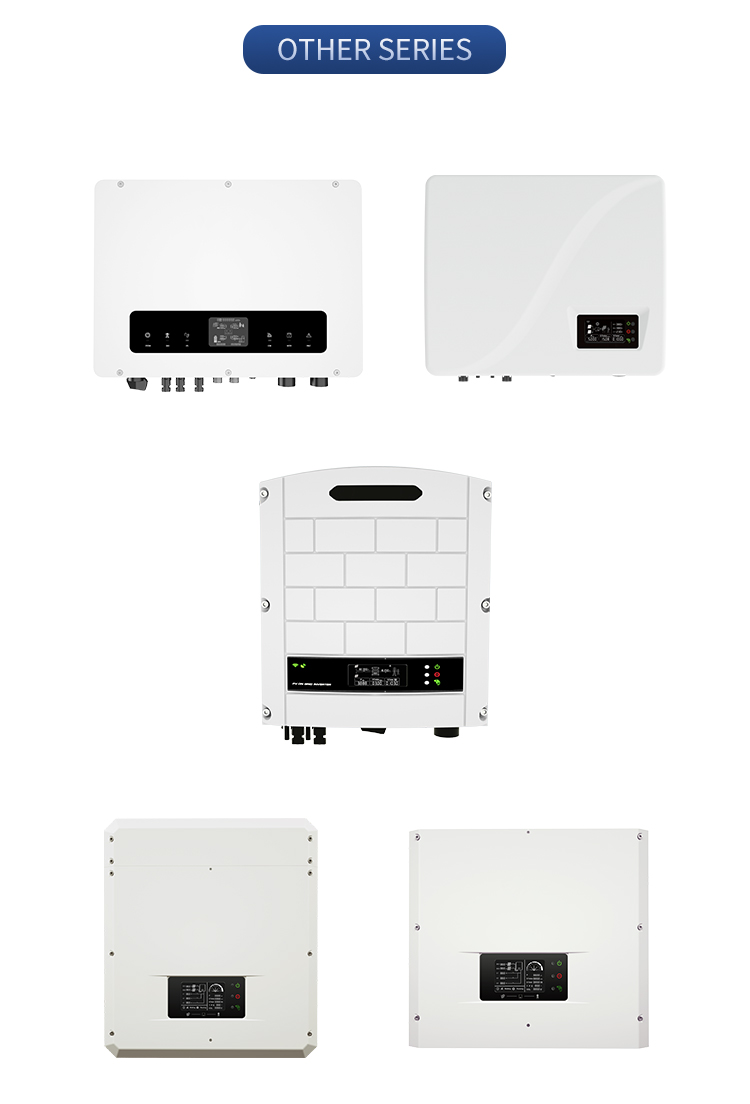

Product picture
