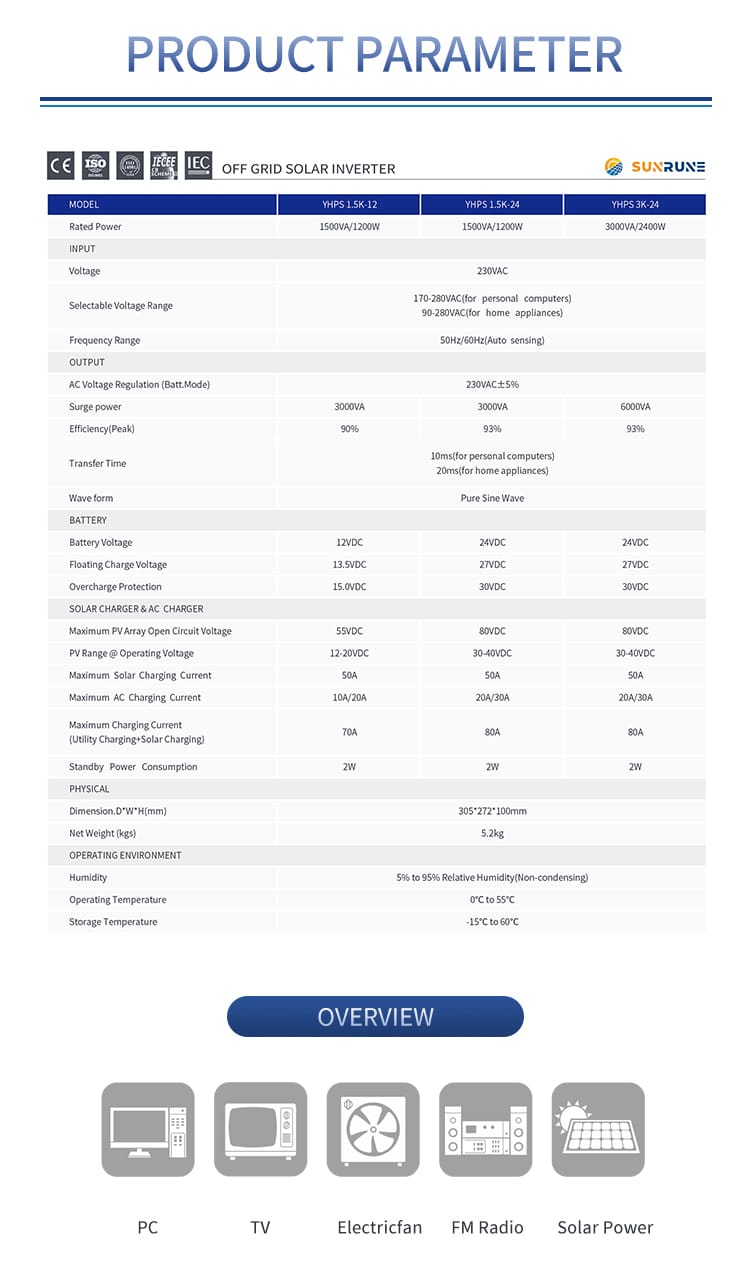

Parameter
MODEL |
YHPS 1.5K-12 |
YHPS 1.5K-24 |
YHPS 3K-24 |
Rated Power |
1500VA/1200W |
1500VA/1200W |
3000VA/2400W |
INPUT |
|||
Voltage |
230VAC |
||
Selectable Voltage Range |
170-280VAC(for personal computers) |
||
Frequency Range |
50Hz/60Hz(Auto sensing) |
||
OUTPUT |
|||
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
||
Surge power |
3000VA |
3000VA |
6000VA |
Efficiency(Peak) |
90% |
93% |
93% |
Transfer Time |
10ms(for personal computers) 20ms(for home appliances) |
||
Wave form |
Pure Sine Wave |
||
BATTERY |
|||
Battery Voltage |
12VDC |
24VDC |
24VDC |
Floating Charge Voltage |
13.5VDC |
27VDC |
27VDC |
Overcharge Protection |
15.0VDC |
30VDC |
30VDC |
SOLAR CHARGER & AC CHARGER |
|||
Maximum PV Array Open Circuit Voltage |
55VDC |
80VDC |
80VDC |
PV Range @ Operating Voltage |
12-20VDC |
30-40VDC |
30-40VDC |
Maximum Solar Charging Current |
50A |
50A |
50A |
Maximum AC Charging Current |
10A/20A |
20A/30A |
20A/30A |
Maximum Charging Current |
70A |
80A |
80A |
Standby Power Consumption |
2W |
2W |
2W |
PHYSICAL |
|||
Dimension.D*W*H(mm) |
305*272*100mm |
||
Net Weight (kgs) |
5.2kg |
||
OPERATING ENVIRONMENT |
|||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
||
Operating Temperature |
0℃ to 55℃ |
||
Storage Temperature |
-15℃ to 60℃ |

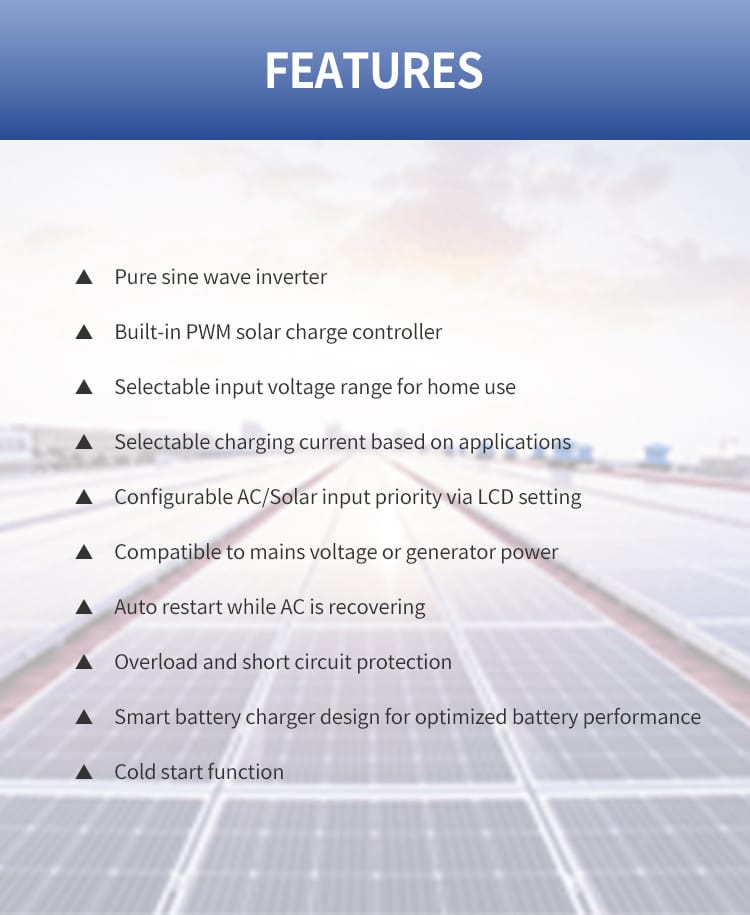

Features

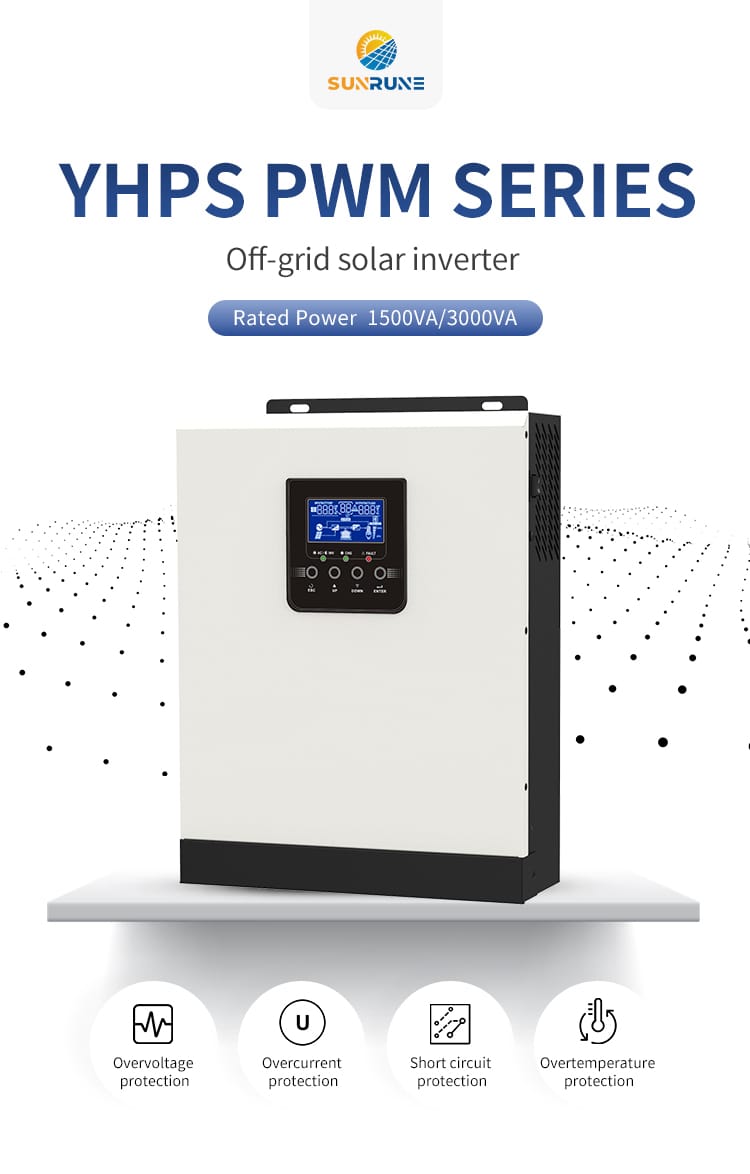

1.This HPS Pure Sine Wave Inverter ensures the generation of clean and stable power for sensitive electronic devices. It provides a steady flow of energy, minimizing the risk of damage to appliances and maximizing their performance.
2.The built-in PWM solar charge controller efficiently manages the charging of the batteries connected to the system. It regulates the current and voltage of the solar panels to ensure optimal charging and extend battery life.
3.The self-selectable input voltage range feature allows the inverter to be used with different voltage sources, making it suitable for a wide range of home settings. This flexibility ensures compatibility with different electrical systems and voltage standards around the world.
4.With the ability to select the charging current for a specific application, users can customize the charging process for different battery types and capacities. This results in efficient, optimized charging that extends battery life and improves overall performance.

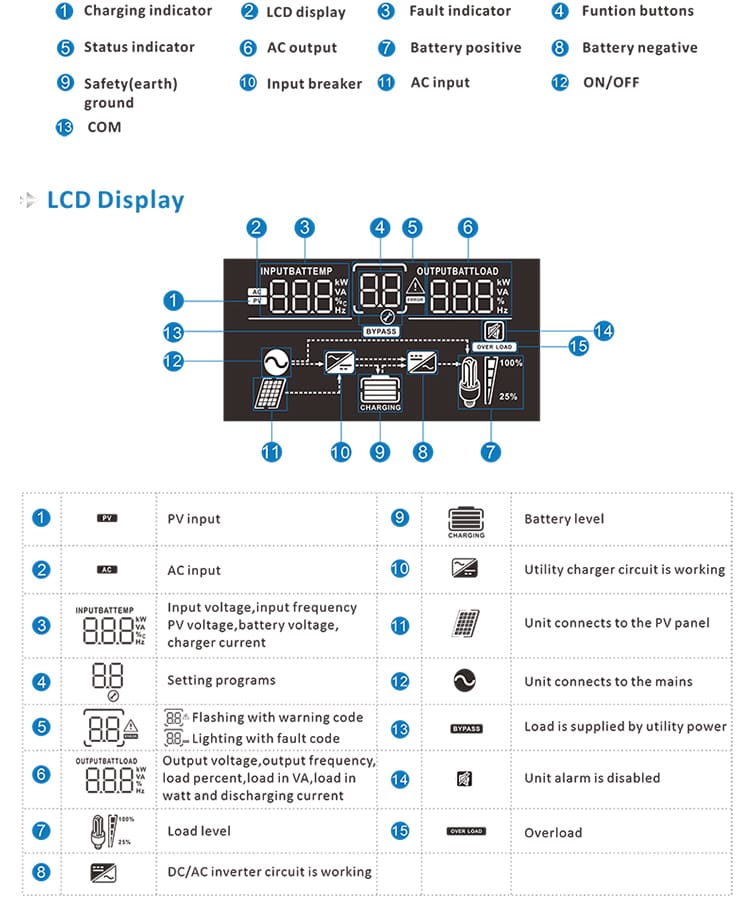

5.LCD settings on the inverter allow the user to configure the priority between AC and solar input. This allows the user to control the energy source and prioritize solar energy when it is available, thus reducing dependence on grid power and maximizing the use of renewable energy.

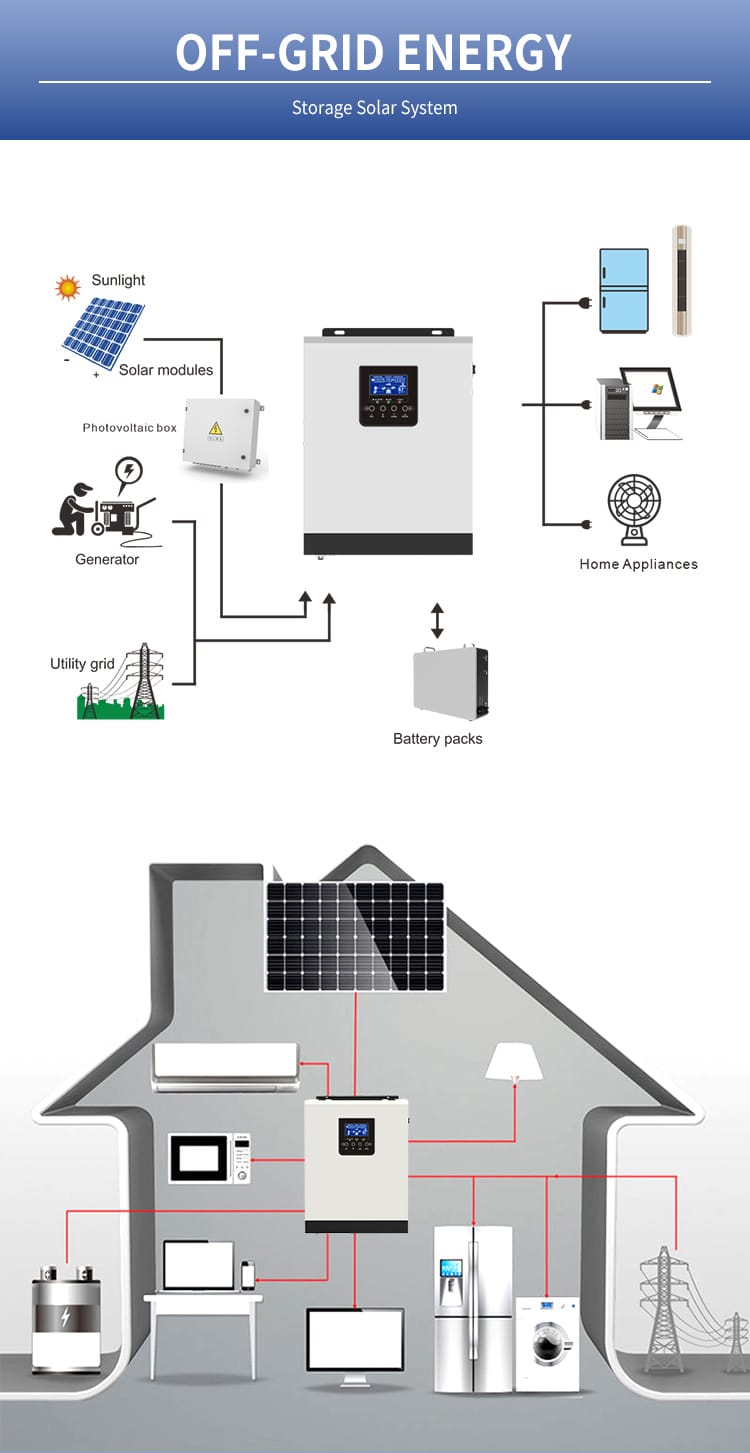

6.The inverter is designed to be compatible with both utility and generator power, providing versatility and reliable operation. It automatically switches between power sources to ensure an uninterrupted power supply regardless of grid or generator power availability or fluctuations.
7.The auto restart function ensures that the inverter automatically resumes operation when AC power is restored after a power failure. This eliminates the need for manual intervention and ensures a seamless transition to normal operation.
8.Built-in overload and short-circuit protection prevent damage to the inverter and connected equipment due to overload or electrical faults. In such cases, it automatically detects and disconnects the power supply, preventing any potential danger.
